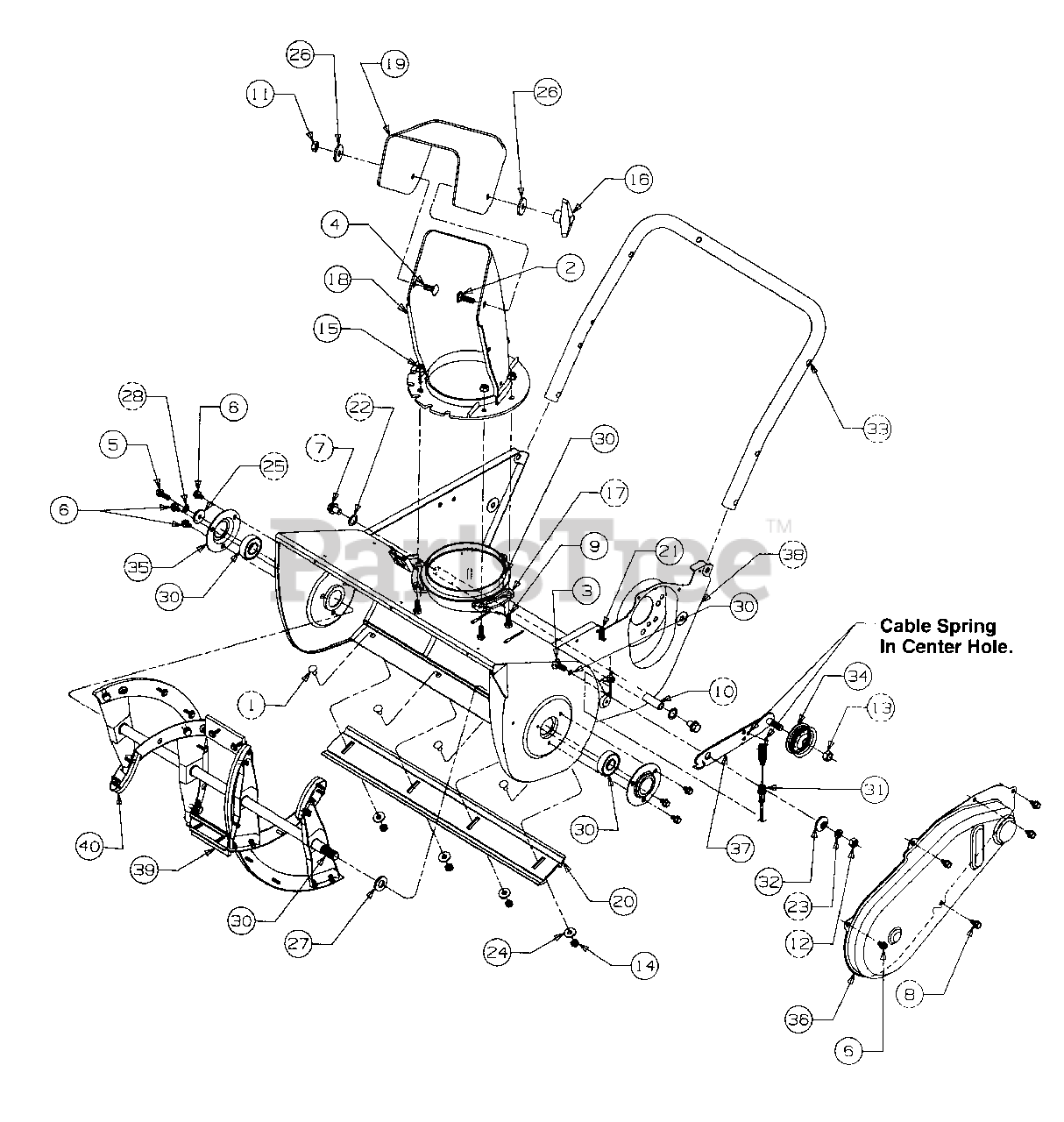

321 (316-140-100) - Cub Cadet 21" Snow Thrower (1996) Frame Assembly Parts Diagram

21" Snow Thrower

Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 710-0167

Bolt - Carriage
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0276

Bolt - Carriage

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 771-0323

Screw - Pan Head

$

$

Currently unavailable

4

Cub Cadet 710-0451

Bolt - Carriage

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0642

Screw - Hex Washer

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0653

Screw - Hex Washer

$4.49

$

In Stock, Qty 7

0

7

Cub Cadet 710-0773

Screw - Hex Washer

$7.49

$

In Stock, only 3 left!

0

8

Cub Cadet 710-0896

Screw - Hex Washer

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3015

Screw - Hex Cap

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 711-0848

Axle

$

$

Not available

11

Cub Cadet 712-0158

Nut - Hex Center Lock
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

12

Cub Cadet 712-0267

Nut - Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0296

Nut - Hex Lock
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

14

Cub Cadet 712-0298

Nut - Hex Jam
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-3027

Nut - Hex Lock Flanged
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 720-0284

Knob

$6.99

$

In Stock, Qty 20+

0

17

Cub Cadet 731-0851A

Keeper - Chute

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 731-0915B

Chute - Lower
(Superseded to 731-0915C)

$

$

Not available

19

Cub Cadet 731-0921

Chute - Upper
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 11

0

20

Cub Cadet 731-1033

Shave Plate

$47.99

$

In Stock, Qty 13

0

21

Cub Cadet 732-0357A

Spring - Extension

$4.49

$

In Stock, Qty 13

0

22

Cub Cadet 736-0108

Washer - Flat

$6.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-0119

Washer - Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0173

Washer - Flat

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0176

Washer - Flat

$4.99

$

In Stock, only 4 left!

0

26

Cub Cadet 736-0231

Washer

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0326

Washer - Flat

$4.49

$

In Stock, only 2 left!

0

28

Cub Cadet 736-0329

Washer - Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

?29

Cub Cadet 737-0133

Grease
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0

30

Cub Cadet 741-0600

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

31

Cub Cadet 746-0910

Cable - Clutch
(Superseded to 946-0910A)

$29.99

$

In Stock, Qty 16

0

32

Cub Cadet 748-0234

Spacer - Shoulder

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 749-0796

Handle - Lower

Variations

Cub Cadet 749-0796-0637

LOWER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

34

Cub Cadet 756-0313

Idler - Flat

$26.99

$

In Stock, only 3 left!

0

35

Cub Cadet 784-5174

Cup - Bearing
(Superseded to 784-5174-0637)

Variations

Cub Cadet 784-5174-0637

Bearing Cup - POWDER BLACK (0637)

$

$

Not available

$

$

36

Cub Cadet 784-5176

Cover - Belt
(Superseded to 790-00045C-0637)

Variations

Cub Cadet 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0716

Belt Cover, Black - CUB YELLOW-99 (0716)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0498

USE 790-00045A COVER-BELT - OLD CUB YELLOW (0498)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0650

USE 790-00045A COVER-BELT - RED METALLIC (0650)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0662

USE 790-00045A COVER-BELT - OYSTER GRAY (0662)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0674

USE 790-00045A COVER-BELT - YARDMAN YELLOW (0674)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0691

USE 790-00045C-0691 COVER-BEL - BLACK JACK (0691)

$

$

Not available

Cub Cadet 784-5176-0665

USE 790-00045C-0665 COVER-BEL - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 784-518B

Bracket - Idler/Brake

$

$

Currently unavailable

38

Cub Cadet 784-5325D

Housing - Blower

Variations

Cub Cadet 784-5325D-0483

21" BLOWER HOUSING - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-5325D-0498

21" BLOWER HOUSING - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5325D-0629

21" BLOWER HOUSING - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 784-5325D-0638

21" BLOWER HOUSING - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-5325D-0662

21" BLOWER HOUSING - OYSTER GRAY (0662)

$

$

Not available

$

$

39

Cub Cadet 784-5485

Auger
(Superseded to 984-04027A)

Variations

Cub Cadet 784-5485-0498

Auger Assembly, 21" Complete - OLD CUB YELLOW (0498)

$196.99

$

In Stock, Qty 10

0

Cub Cadet 784-5485-0662

Auger Assembly, 21" Complete - OYSTER GRAY (0662)

$196.99

$

In Stock, Qty 10

0

Cub Cadet 784-5485-0688

Auger Assembly, 21" Complete - SPRING GREEN (0688)

$196.99

$

In Stock, Qty 10

0

$196.99

$

In Stock, Qty 10

0

40

Cub Cadet 753-0613

Auger Rubber Replacement

$130.99

$

In Stock, Qty 5

0
