321 (316-140-100) - Cub Cadet 21" Snow Thrower (1996) Drive Assembly Parts Diagram

21" Snow Thrower

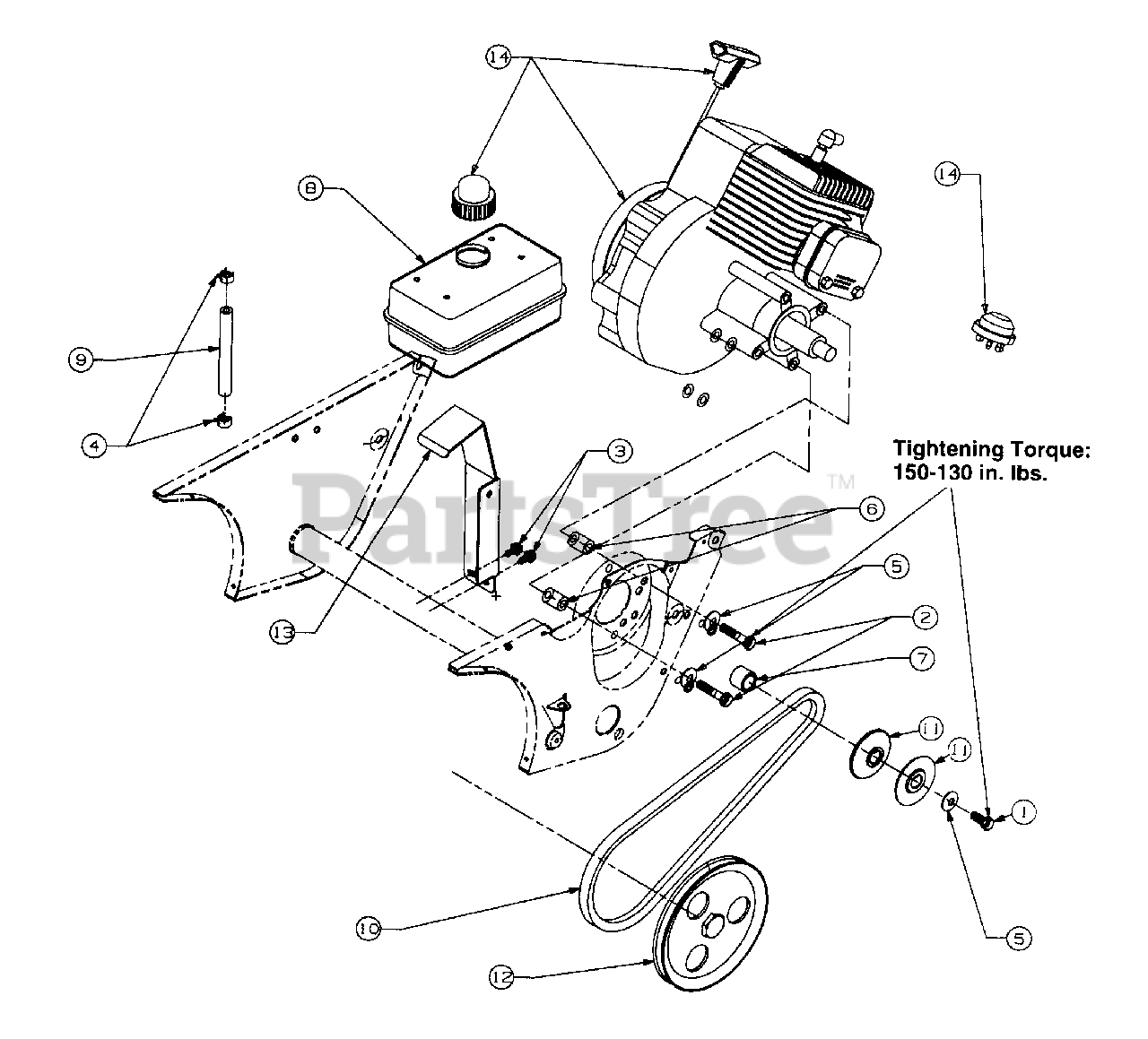

Drive Assembly Parts Diagram

  • Title

1

Cub Cadet 710-0157

Screw - Hex Cap

$4.49

$

In Stock, Qty 15

0

2

Cub Cadet 710-0442

Screw - Hex Cap
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0896

Screw - Washer

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 726-0205

Clamp - Hose

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0242

Washer - Bell

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 750-0589

Spacer
(Superseded to 950-0589)

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 750-0716

Spacer
(Superseded to 750-0716A)

$

$

Not available

8

Cub Cadet 751-0352

Tank - Fuel
(Superseded to TC-32660A)

$

$

Not available

9

Cub Cadet 751-0535-12

Hose - Fuel 12"
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

10

Cub Cadet 754-0367

V-Belt
(Superseded to 954-0367)

$29.99

$

In Stock, Qty 20+

0

11

Cub Cadet 756-0416B

V-Pulley Half
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

12

Cub Cadet 756-0550

Pulley

$

$

Not available

13

Cub Cadet 784-5177

Engine Support Bracket

Variations

Cub Cadet 784-5177-0637

BRACKET-EN - POWDER BLACK (0637)

$

$

Not available

$

$

14

UNKNOWN

Note: Obtain from Engine Manufacturer

$

$

Not available
