321 (314-180-100) - Cub Cadet 21" Snow Thrower (1994) Snow Thrower Parts Diagram

21" Snow Thrower

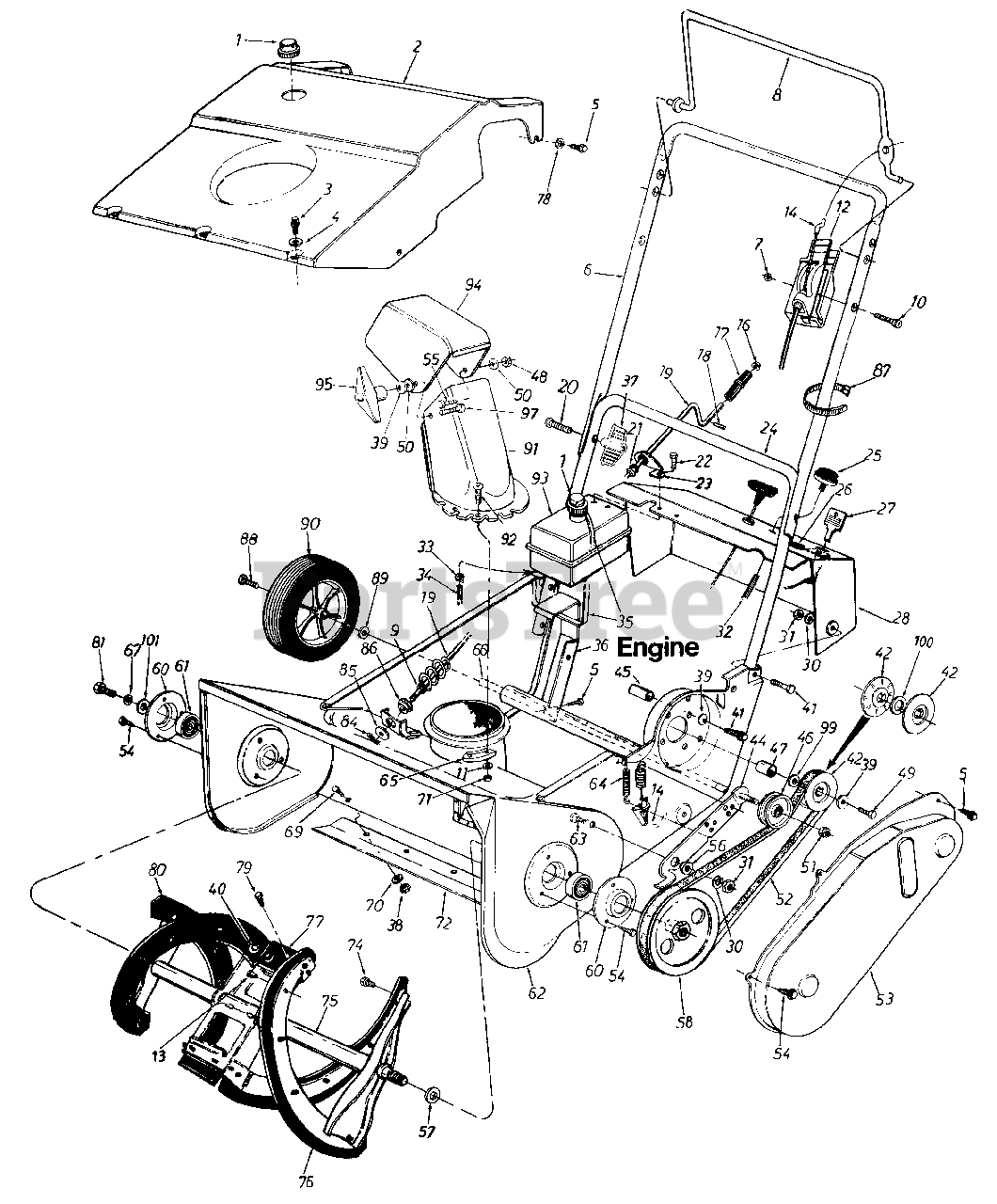

Snow Thrower Parts Diagram

  • Title

1

Cub Cadet 751-0353

Gas Tank Cap
(Superseded to TC-410240)

$9.49

$

Usually ships in 3-12 days

0

2

Cub Cadet 731-0852

21" Shroud

$

$

Not available

3

Cub Cadet 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 736-0370

Spr.-Wash. .206" I.D. x .448"

$

$

Not available

5

Cub Cadet 710-0892

Hex L-Wash. Hd. AB-Tap 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

6

Cub Cadet 749-0705

Upper Handle

Variations

Cub Cadet 749-0705-0637

UPPER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

8

Cub Cadet 747-0824

Control Handle Ass'y.--L.H.
(Superseded to 747-0824B-0637)

Variations

Cub Cadet 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

9

Cub Cadet 736-0140

Fl-Wash. .385" I.D. x .62"

$7.49

$

In Stock, Qty 6

0

10

Cub Cadet 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 736-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 746-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

13

Cub Cadet 728-0180

Pop Rivet .187" Dia.
(Superseded to 928-0180)

$

$

Not available

14

Cub Cadet 746-0910

Clutch Cable 35" Lg.
(Superseded to 946-0910A)

$29.99

$

In Stock, Qty 16

0

16

Cub Cadet 726-0100

Push Cap 3/8" Rod

$4.49

$

In Stock, Qty 18

0

17

Cub Cadet 720-0201A

Knob--3/8" Dia. Hole

$10.99

$

In Stock, Qty 5

0

18

Cub Cadet 715-0138

Roll Pin 1/8" Dia. x .63" Lg.
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

19

Cub Cadet 784-5344

Chute Crank Ass'y.

$

$

Not available

20

Cub Cadet 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

21

Cub Cadet 741-0475

Plastic Bushing .38" I.D.
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0895

Hex AB-Tap Scr. 1/4 x .75" Lg.

$6.49

$

In Stock, Qty 10

0

23

Cub Cadet 784-5178A

Upper Chute Crank Brkt.

$

$

Not available

24

Cub Cadet 749-0796

Lower Handle

Variations

Cub Cadet 749-0796-0637

LOWER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

25

Cub Cadet 751-0354

Primer
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 7

0

26

Cub Cadet 731-0732

Plastic Plug

$

$

Not available

27

Cub Cadet 725-1660

Plastic Key
(Superseded to TC-35062)

Note: (Tech. Eng.)

$3.99

$

In Stock, only 4 left!

0

28

Cub Cadet 784-5168B

Dash Panel Ass'y.

$

$

Not available

30

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 723-0354

Primer Hose--11" Lg.
(Superseded to TC-32180C)

$6.99

$

In Stock, Qty 9

0

33

Cub Cadet 726-0205

Hose Clamp--1/2" Dia.

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 751-0535-15

Gas Line--15" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

35

Cub Cadet 726-0225

Cable Tie--17.75" Lg.

$

$

Not available

36

Cub Cadet 784-5177

Engine Support Brkt.

Variations

Cub Cadet 784-5177-0637

BRACKET-EN - POWDER BLACK (0637)

$

$

Not available

$

$

37

UNKNOWN

$

$

Not available

38

Cub Cadet 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 710-1017

Torx AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

41

Cub Cadet 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 756-0416A

3/8" "V"-Pulley Half .625" I.D. x 6.0" O.D.
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

44

Cub Cadet 784-5180B

Idler Brake Brkt. Ass'y.
(Superseded to 753-05156)

Variations

Cub Cadet 784-5180B-0637

USE 753-05156 KIT:IDLER SINGL - POWDER BLACK (0637)

$

$

Not available

$

$

45

Cub Cadet 750-0589

Spacer .325" I.D. x .625" O.D. x .875"
(Superseded to 950-0589)

$6.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 756-0313

Fl-Idler w/Flanges 2.12" O.D.

$26.99

$

In Stock, only 3 left!

0

47

Cub Cadet 748-0201

Spacer .635" I.D. x .89" O.D. x .57"
(Superseded to 948-0201)

$

$

Not available

48

Cub Cadet 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

49

Cub Cadet 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

50

Cub Cadet 736-0231

Fl-Wash. .344" I.D. x 1.25"

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

52

Cub Cadet 754-0367

"V"-Belt
(Superseded to 954-0367)

$29.99

$

In Stock, Qty 20+

0

53

Cub Cadet 784-5176

Belt Cover
(Superseded to 790-00045C-0637)

Variations

Cub Cadet 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0716

Belt Cover, Black - CUB YELLOW-99 (0716)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0498

USE 790-00045A COVER-BELT - OLD CUB YELLOW (0498)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0650

USE 790-00045A COVER-BELT - RED METALLIC (0650)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0662

USE 790-00045A COVER-BELT - OYSTER GRAY (0662)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0674

USE 790-00045A COVER-BELT - YARDMAN YELLOW (0674)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0691

USE 790-00045C-0691 COVER-BEL - BLACK JACK (0691)

$

$

Not available

Cub Cadet 784-5176-0665

USE 790-00045C-0665 COVER-BEL - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-0352

Hex B-Tap Scr. 1/4" x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 710-0451

Carriage Bolt 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 748-0234

Shld. Spacer .50" Dia. x .27"

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 736-0326

Fl-Wash. .510" I.D. x 1.0" O.D.

$4.49

$

In Stock, only 2 left!

0

58

Cub Cadet 756-0550

3/8" "V"-Pulley 1/2-20 L.H. x 6"

$

$

Not available

60

Cub Cadet 784-5174

Bearing Cup
(Superseded to 784-5174-0637)

Variations

Cub Cadet 784-5174-0637

Bearing Cup - POWDER BLACK (0637)

$

$

Not available

$

$

61

Cub Cadet 741-0600

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

62

Cub Cadet 784-5325D

21" Blower Hsg. Ass'y.

Variations

Cub Cadet 784-5325D-0483

21" BLOWER HOUSING - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-5325D-0498

21" BLOWER HOUSING - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5325D-0629

21" BLOWER HOUSING - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 784-5325D-0638

21" BLOWER HOUSING - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-5325D-0662

21" BLOWER HOUSING - OYSTER GRAY (0662)

$

$

Not available

$

$

63

Cub Cadet 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

64

Cub Cadet 732-0357A

Extension Spring 1.12" Lg.

$4.49

$

In Stock, Qty 13

0

65

Cub Cadet 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 711-0848

Wheel Axle 1/2" O.D. x 20.6" Lg.

$

$

Not available

67

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

69

Cub Cadet 710-0167

Carriage Bolt 1/4-20 x .50"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

70

Cub Cadet 736-0173

Fl-Wash. .281" I.D. x .73"

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

72

Cub Cadet 731-1033

Shave Plate

$47.99

$

In Stock, Qty 13

0

74

Cub Cadet 710-0896

Hex Wash. B-Tap Scr. 1/4 x .62" (Spec.)

$4.49

$

In Stock, Qty 20+

0

75

Cub Cadet 784-5485

Auger Ass'y. 21"
(Superseded to 984-04027A)

Variations

Cub Cadet 784-5485-0498

Auger Assembly, 21" Complete - OLD CUB YELLOW (0498)

$196.99

$

In Stock, Qty 10

0

Cub Cadet 784-5485-0662

Auger Assembly, 21" Complete - OYSTER GRAY (0662)

$196.99

$

In Stock, Qty 10

0

Cub Cadet 784-5485-0688

Auger Assembly, 21" Complete - SPRING GREEN (0688)

$196.99

$

In Stock, Qty 10

0

$196.99

$

In Stock, Qty 10

0

76

Cub Cadet 731-0781A

Rubber Spiral--L.H.
(Superseded to 931-0780A)

$27.99

$

In Stock, Qty 12

0

77

Cub Cadet 731-0782

Rubber Paddle
(Superseded to 931-0782A)

$6.99

$

In Stock, Qty 9

0

78

Cub Cadet 736-0400

Flat Washer

$5.49

$

In Stock, Qty 11

0

79

Cub Cadet 710-1003

Hex Wash. B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

80

Cub Cadet 731-0780A

Rubber Spiral--R.H.
(Superseded to 931-0780A)

$27.99

$

In Stock, Qty 12

0

81

Cub Cadet 710-0875

Hex Wash. TT-Tap Cl-Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

84

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, Qty 12

0

85

Cub Cadet 736-0133

Fl-Wash. .406" I.D. x 1.25"

$5.49

$

In Stock, Qty 7

0

86

Cub Cadet 741-0403

Hex Bushing .385" I.D.

$

$

Not available

87

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

88

Cub Cadet 710-0773

Hex Tap Scr. 3/8-24 x .5" Lg.

$7.49

$

In Stock, only 3 left!

0

89

Cub Cadet 736-0108

Fl-Wash. .510" I.D. x .75"

$6.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 734-1176

Wheel & Tire Ass'y. 7" x 1.5"

$

$

Not available

91

Cub Cadet 731-0915A

Lower Chute
(Superseded to 731-0915C)

$

$

Not available

92

Cub Cadet 710-0255

Truss Mach. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

93

Cub Cadet 751-0352

Fuel Tank--One Qt.
(Superseded to TC-32660A)

$

$

Not available

94

Cub Cadet 731-0921

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 11

0

95

Cub Cadet 720-0241

Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

97

Cub Cadet 710-0276

Carriage Bolt 5/16-18 x 1"

$3.99

$

In Stock, Qty 20+

0

99

Cub Cadet 736-0162

Fl-Wash. .635" I.D. x 1.04" O.D.

$4.49

$

In Stock, Qty 20+

0

100

Cub Cadet 736-0116

Fl-Wash. .635" I.D. x .93" O.D.
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

101

Cub Cadet 736-0176

Fl-Wash. .25" I.D. x .93"

$4.99

$

In Stock, only 4 left!

0

Cub Cadet 390-697

3 HP 110V Electric Start

Note: (Optional Equipment)

$

$

Currently unavailable
