321 (312-180-100) - Cub Cadet 21" Snow Thrower Engine (1992) Tec 3 HP Engine Assembly Parts Diagram

21" Snow Thrower Engine

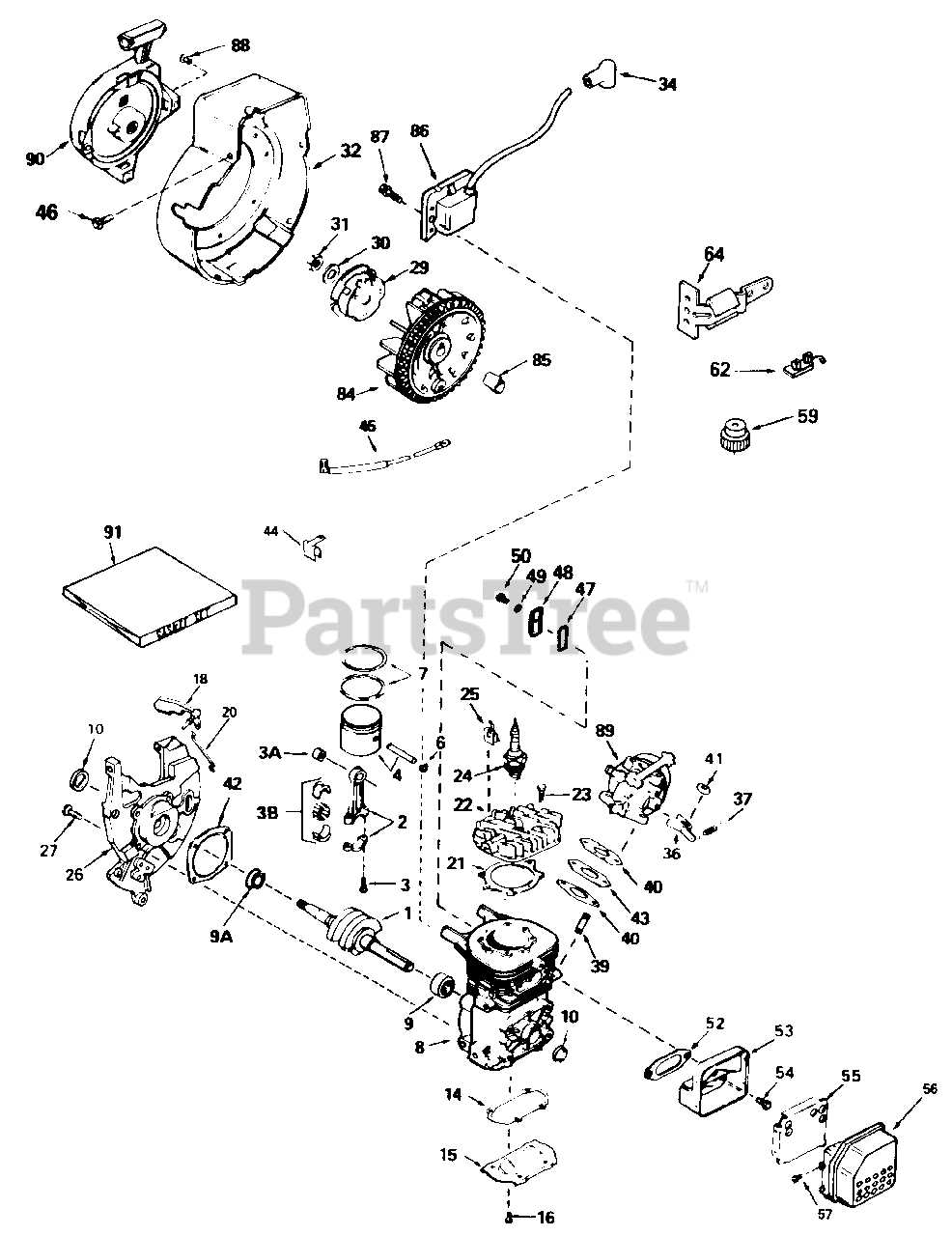

Tec 3 HP Engine Assembly Parts Diagram

  • Title

1

Cub Cadet TC-290609

Crankshaft

$

$

Not available

2

Cub Cadet TC-310235B

Rod Ass'y., Connecting

Note: (Incl. Nos. 3, 3A & 3B)

$

$

Not available

3

Cub Cadet TC-650633

Screw, Connecting Rod

$1.99

$

In Stock, only 2 left!

0

3A

Cub Cadet TC-530104A

Bearing, Cartridge

$15.99

$

In Stock, only 1 left!

0

3B

Cub Cadet TC-530150

Bearing & Liner Set, Needle (37 Needles)

$36.99

$

Usually ships in 3-12 days

0

4

Cub Cadet TC-310283A

Piston and Pin Ass'y.

$33.99

$

Usually ships in 3-12 days

0

6

Cub Cadet TC-310167

Ring, Piston Pin Retaining

$1.99

$

Usually ships in 3-12 days

0

7

Cub Cadet TC-310190

Ring Set, Piston
(Superseded to TC-310289A)

$14.99

$

In Stock, only 2 left!

0

8

Block Ass'y., Cylinder

Note: (Order short block if replacement is required.)

$

$

Not available

9

Cub Cadet TC-530105

Bearing, Needle

$11.99

$

Usually ships in 3-12 days

0

9A

Cub Cadet TC-530110

Bearing, Ball
(Superseded to 941-0361)

$49.99

$

In Stock, only 2 left!

0

10

Cub Cadet TC-510319

Seal, Crankshaft

$7.49

$

In Stock, Qty 7

0

14

Cub Cadet TC-510323A

Gasket, Cover

$6.99

$

In Stock, only 1 left!

0

15

Cub Cadet TC-570644

Plate, Cover

$7.49

$

In Stock, only 1 left!

0

16

Cub Cadet TC-650579

Screw, Pan Flex Hd., 10-24 x 1/2

$1.99

$

Usually ships in 3-12 days

0

18

Cub Cadet TC-490291A

Vane Ass'y., Air

$3.99

$

In Stock, only 4 left!

0

20

Cub Cadet TC-490294

Link, Governor

$

$

Currently unavailable

21

Cub Cadet TC-510274A

Gasket, Cylinder Head

$1.99

$

In Stock, Qty 8

0

22

Cub Cadet TC-250240A

Head, Cylinder

$

$

Not available

23

Cub Cadet TC-650477

Screw, Pan Flex Hd., 1/4-20 x 3/4

$1.99

$

In Stock, Qty 20+

0

24

Cub Cadet 759-3331

Plug, Spark

Note: (RCJ-8Y or equivalent)

$3.99

$

In Stock, only 2 left!

0

25

Cub Cadet TC-611034

Clip

$

$

Not available

26

Cub Cadet TC-350422

Base Ass'y., Blower Housing

Note: (Incl. No. 10)

$

$

Not available

27

Cub Cadet TC-650911

Screw, Torx Pan Hd., 1/4-20 x 5/8

$1.99

$

Usually ships in 3-12 days

0

29

Cub Cadet TC-590551

Cup, Starter

$

$

Not available

30

Cub Cadet TC-650815

Washer, Spring

$1.99

$

In Stock, Qty 10

0

31

Cub Cadet TC-650390

Nut, Flywheel

$1.99

$

In Stock, only 3 left!

0

32

Cub Cadet TC-350424

Housing, Blower

$

$

Currently unavailable

34

Cub Cadet TC-610118

Cover, Spark Plug

$6.49

$

In Stock, only 2 left!

0

36

Cub Cadet TC-570645

Lever, Adjusting

$

$

Not available

37

Cub Cadet TC-570646

Spring, Adjusting Lever

$1.99

$

In Stock, Qty 5

0

39

Cub Cadet TC-650527

Stud, Carburetor

$

$

Not available

40

Cub Cadet TC-510326A

Gasket, Carburetor

$1.49

$

In Stock, only 3 left!

0

41

Cub Cadet TC-650457

Nut, Hex, 1/4-28
(Superseded to TC-29752)

$1.99

$

In Stock, Qty 7

0

42

Cub Cadet TC-510292A

Gasket, Housing Base

$3.99

$

Usually ships in 3-12 days

0

43

Cub Cadet TC-570438A

Spacer, Carburetor

$3.99

$

In Stock, only 1 left!

0

44

Cub Cadet TC-29443

Clip, Spring

$1.99

$

In Stock, only 4 left!

0

45

Cub Cadet TC-611141

Wire, Ground

$

$

Currently unavailable

46

Cub Cadet TC-650356

Screw, Hex Washer Hd. Powerlok Thread, 1/4-20 x 3/8

$

$

Currently unavailable

47

Cub Cadet TC-510325A

Gasket, Cover

$1.99

$

In Stock, only 4 left!

0

48

Cub Cadet TC-570647

Cover Ass'y., Compression Release

$

$

Not available

49

Cub Cadet TC-650838

Washer, Flat No. 10

$

$

Not available

50

Cub Cadet TC-650579

Screw, Pan Flex Hd., 10-24 x 1/2

$1.99

$

Usually ships in 3-12 days

0

52

Cub Cadet TC-510207A

Gasket, Muffler

$5.49

$

Usually ships in 3-12 days

0

53

Cub Cadet TC-390292

Base, Muffler

$

$

Currently unavailable

54

Cub Cadet TC-650911

Screw, Hex Washer Hd., 1/4-20 x 5/8

$1.99

$

Usually ships in 3-12 days

0

55

Cub Cadet TC-390272

Baffle, Muffler

$

$

Currently unavailable

56

Cub Cadet TC-390267

Cap, Muffler

$

$

Not available

57

Cub Cadet TC-650578

Screw, Hex Hd. Self-Tap, 8-18 x 3/8

$1.99

$

In Stock, only 2 left!

0

59

Cub Cadet TC-410240

Cap Ass'y., Fuel

$9.49

$

Usually ships in 3-12 days

0

62

Cub Cadet TC-610973

Terminal Ass'y.

$3.99

$

In Stock, only 4 left!

0

64

Cub Cadet TC-35079

Bracket, Key Switch

$

$

Not available

84

Cub Cadet TC-611066

Flywheel

$74.99

$

In Stock, only 1 left!

0

85

Cub Cadet TC-611032

Sleeve, Flywheel

$8.49

$

Usually ships in 3-12 days

0

86

Cub Cadet TC-34443A

Solid State Ass'y.
(Superseded to TC-34443D)

$44.99

$

Usually ships in 3-12 days

0

87

Cub Cadet TC-650814

Screw, Hex Hd. Sems, 10-24 x 1
(Superseded to TC-651007)

$1.99

$

In Stock, only 4 left!

0

88

Rivet, Pop (3116" Dia.)--Purchase Locally

$

$

Not available

89

Cub Cadet TC-632410

Carburetor
(Superseded to TC-640092A)

Note: (Incl. No. 40)

$107.99

$

Usually ships in 3-12 days

0

90

Cub Cadet TC-590537

Starter Ass'y., Rewind
(Superseded to TC-590420A)

$68.99

$

In Stock, only 1 left!

0

91

Cub Cadet TC-510324B

Gasket Set

Note: (Incl. Items 14, 21, 40, 42, 47 and 52)

$9.49

$

In Stock, Qty 10

0
