321 (190-321-100) - Cub Cadet 46" Mower Deck att Deck Assembly Parts Diagram

46" Mower Deck

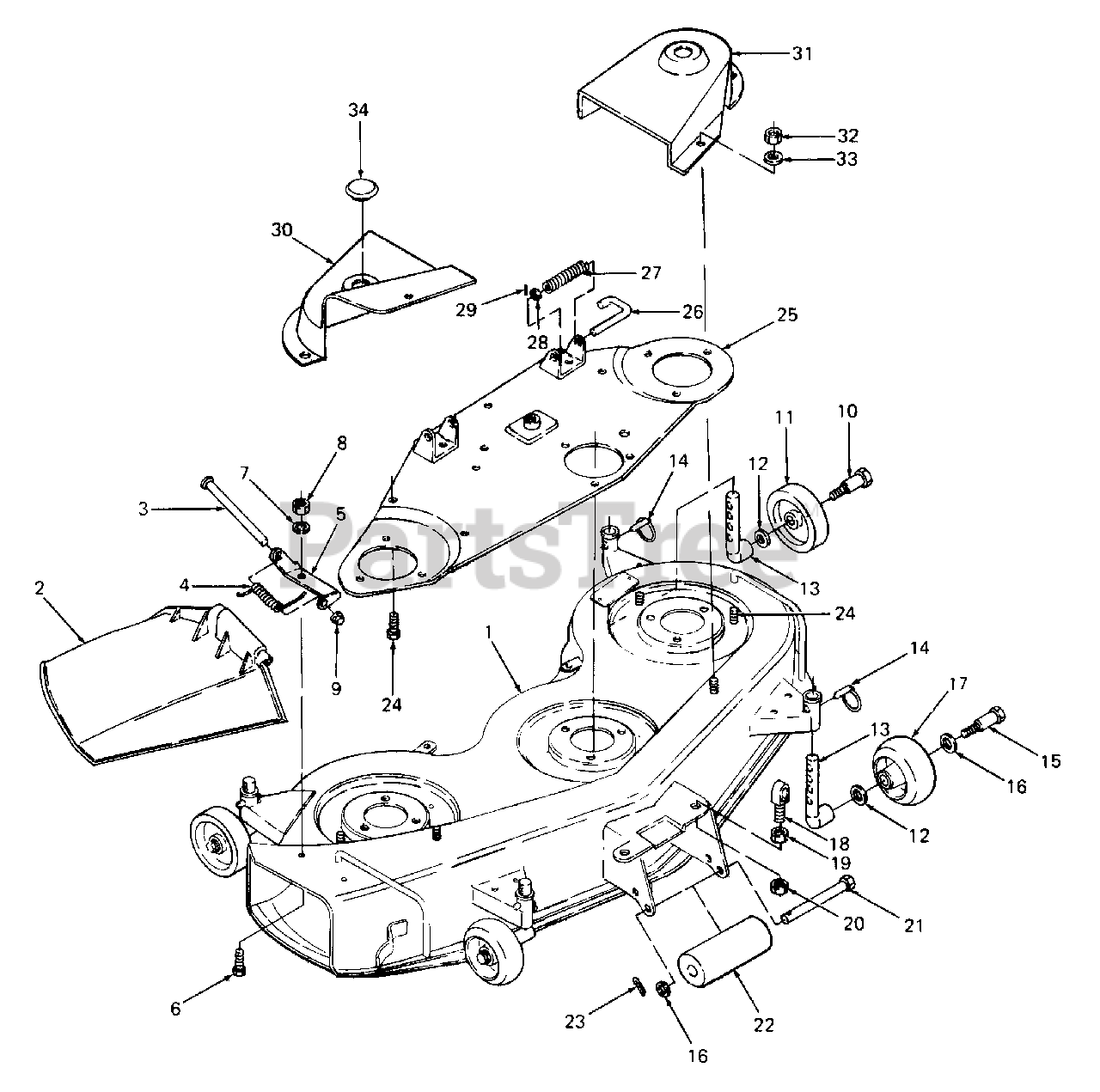

Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 759-3496

Deck Assembly w/Graphics

Note: [Includes Ref No. 24 (Qty 6)]

Variations

Cub Cadet 759-3496-0716

DECK ASSEMBLY W/GRAPHICS (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 759-3496-0498

DECK ASSEMBLY W/GRAPHICS - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 777-6275

Graphic, Thrown Object

$

$

Currently unavailable

Cub Cadet 777-7515

Graphic, 46" Do Not Step

$

$

Currently unavailable

Cub Cadet 777-2196

Graphic, Safety
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

2

Cub Cadet 759-3492

Chute Kit w/Graphic
(Superseded to 759-3492P)

Note: [Includes Ref No. 2 - 8 (Qty 2) & 9]

$

$

Not available

Cub Cadet 777-2196

Graphic, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

3

Cub Cadet 711-0792

Pin, Hinge, 0.25 Dia X 6.75 Lg
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

4

Cub Cadet 732-0602

Spring, Torsion
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

5

Cub Cadet 703-1693

Bracket, Hinge Mtg.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

6

Cub Cadet 710-0255

Screw, Truss Machine, 1/4 - 20 X .75 Lg, Phillips
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0329

Washer, Lock, 1/4 Dia
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

8

Cub Cadet 712-0287

Nut, Hex, 1/4 - 20 GR5
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

9

Cub Cadet 726-0106

Nut, Cap Speed

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 738-0373

Screw, Shoulder
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

11

Cub Cadet 734-3062

Wheel, Gauge, 5 in. Dia

$21.99

$

In Stock, Qty 16

0

12

Cub Cadet 736-0105

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 711-3256

Axle, Deck

$77.99

$

In Stock, Qty 11

0

14

Cub Cadet 711-3266

Pin, Clevis w/Detent Ball

$15.99

$

In Stock, Qty 7

0

15

Cub Cadet 738-3056

Screw, Shoulder
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .06 Thk

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 703-1890

Wheel, Ball w/Fitting, 5 in. DIA
(Superseded to 703-1890A)

$39.99

$

In Stock, Qty 20+

0

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 719-3009

Hanger, Front Mower Support
(Superseded to 919-3009)

$69.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 712-3015

Nut, Hex Jam, 5/8-11 GR5

$4.99

$

In Stock, only 2 left!

0

20

Cub Cadet 712-0261

Nut, Hex Jam Lock, 5/8-11 GR5
(Superseded to 912-0261)

$

$

Not available

21

Cub Cadet 711-3019

Pin, Clevis, 1/2 Dia X 7.0 Lg
(Superseded to 911-3019)

$29.99

$

In Stock, Qty 5

0

22

Cub Cadet 731-3005

Roller, Front

$28.99

$

In Stock, Qty 20+

0

23

Cub Cadet 714-3002

Pin, Cotter, 3/16 Dia X 1.0 Lg

$3.99

$

In Stock, Qty 7

0

24

Cub Cadet 710-3004

Screw, Hex Cutting, 5/16-18 X.75 Lg
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 703-1734

Plate, Adapter

$

$

Not available

26

Cub Cadet 747-3013

Pin, Mower Support

$22.99

$

In Stock, only 2 left!

0

27

Cub Cadet 732-3007

Spring, Compression
(Superseded to 932-3007)

$

$

Not available

28

Cub Cadet 736-0160

Washer, Flat, .531 X .930 X .050 Thk

$4.49

$

In Stock, only 2 left!

0

29

Cub Cadet 715-3003

Pin, Spirol Spring, 3/16 Dia X.75 Lg

$6.99

$

In Stock, Qty 7

0

30

Cub Cadet 731-3121

Cover, Belt RH

$

$

Not available

31

Cub Cadet 731-3122

Cover, Belt LH

$

$

Not available

32

Cub Cadet 712-3010

Nut, Hex, 5/16-1 8 GR5

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0275

Washer, Flat, .34 X .88 X .062 Thk

$6.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 726-3045

Plug, Button
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 7

0
