3208 (14A-686-100) - Cub Cadet Garden Tractor (SN: 1J310G & Before) Lubrication Parts Diagram

Garden Tractor

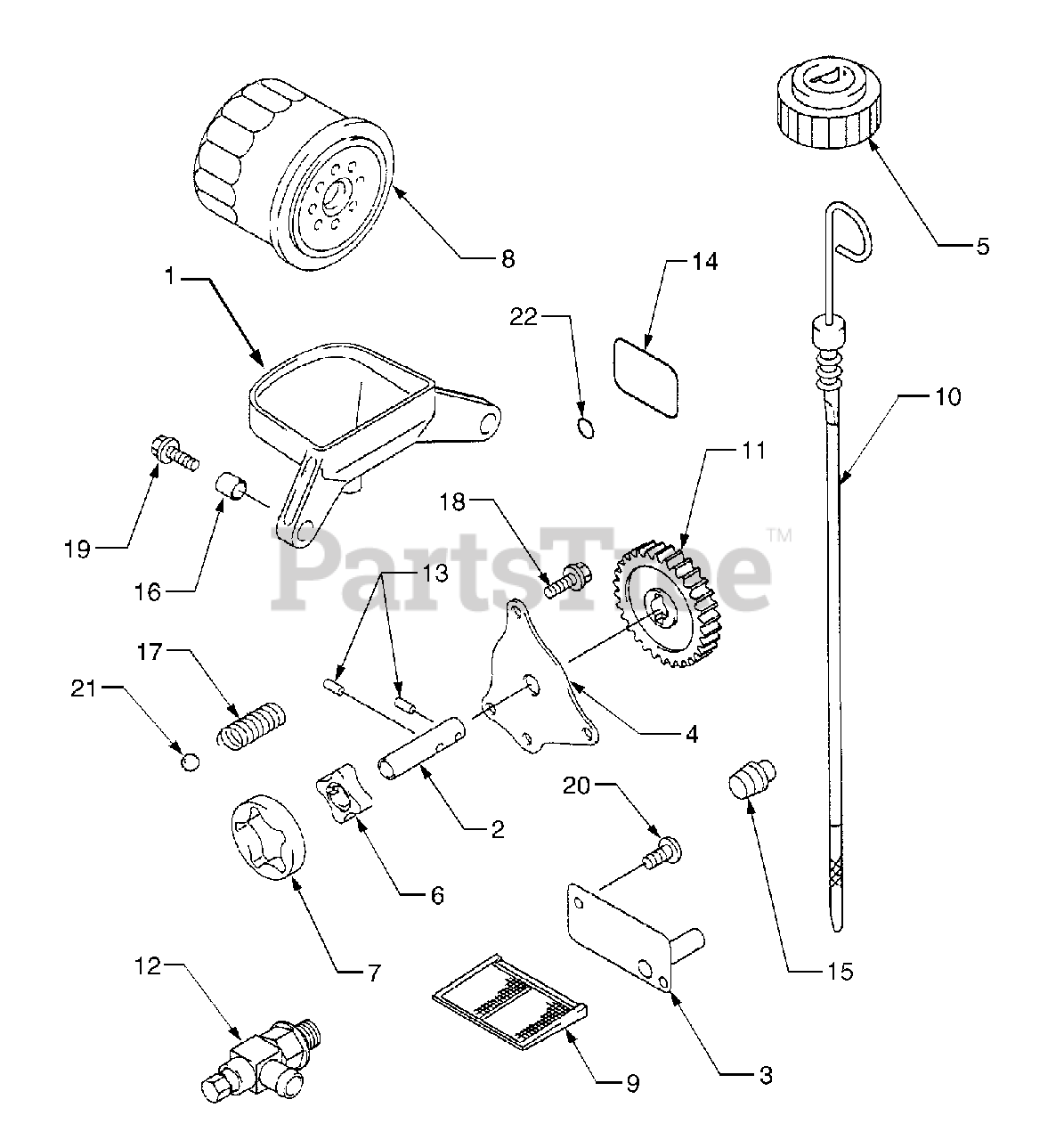

Lubrication Parts Diagram

  • Title

1

Cub Cadet KM-13045-2051

Receiver, Oil

$8.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KM-13107-2099

Shaft, Oil Pump
(Superseded to KM-13107-2296)

$12.99

$

In Stock, only 1 left!

0

3

Cub Cadet KM-13183-2419

Plate

$19.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-14024-2113

Cover, Oil Pump

$4.99

$

In Stock, only 1 left!

0

5

Cub Cadet KM-16115-2090

Cap, Oil Filler

$10.99

$

In Stock, only 1 left!

0

6

Cub Cadet KM-16154-2053

Rotor, Pump Inner

$12.99

$

In Stock, only 2 left!

0

7

Cub Cadet KM-16154-2054

Rotor, Pump Outer

$9.49

$

In Stock, only 2 left!

0

8

Cub Cadet KM-49065-2071

Filter, Oil
(Superseded to KM-49065-7010)

$18.99

$

In Stock, Qty 20+

0

9

Cub Cadet KM-49065-2072

Screen, Oil Filter

$7.99

$

In Stock, Qty 5

0

10

Cub Cadet KM-52005-2120

Dipstick, Engine Oil

$24.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-59051-2114

Gear, Spur

$7.49

$

In Stock, only 1 left!

0

12

Cub Cadet KM-92005-2059

Fitting, Oil Drain
(Superseded to KM-99969-1395)

$20.99

$

In Stock, only 1 left!

0

13

Cub Cadet KM-92042-014

Pin

$0.99

$

In Stock, Qty 11

0

14

Cub Cadet KM-92055-2086

O-Ring

$1.49

$

In Stock, Qty 12

0

15

Cub Cadet KM-92066-2235

Plug

$3.49

$

Usually ships in 2-5 days

0

16

Cub Cadet KM-92143-2187

Collar, 8.2 x 10 x 10

$0.99

$

In Stock, only 3 left!

0

17

Cub Cadet KM-92144-2053

Spring, Relief Valve
(Superseded to KM-92145-2132)

$0.99

$

In Stock, only 1 left!

0

18

Cub Cadet KM-130B0614

Bolt, Flanged

$

$

Not available

19

Cub Cadet KM-130B0820

Bolt, Flanged

$

$

Not available

20

Cub Cadet KM-214B0512

Screw, Pan

$

$

Not available

21

Cub Cadet KM-600A1300

Ball, Steel

$0.99

$

In Stock, Qty 14

0

22

Cub Cadet KM-670B2011

O-Ring

$1.49

$

In Stock, Qty 20+

0
