3208 (14A-686-100) - Cub Cadet Garden Tractor (SN: 1J310G & Before) Driveshaft And Engine Connections Parts Diagram

Garden Tractor

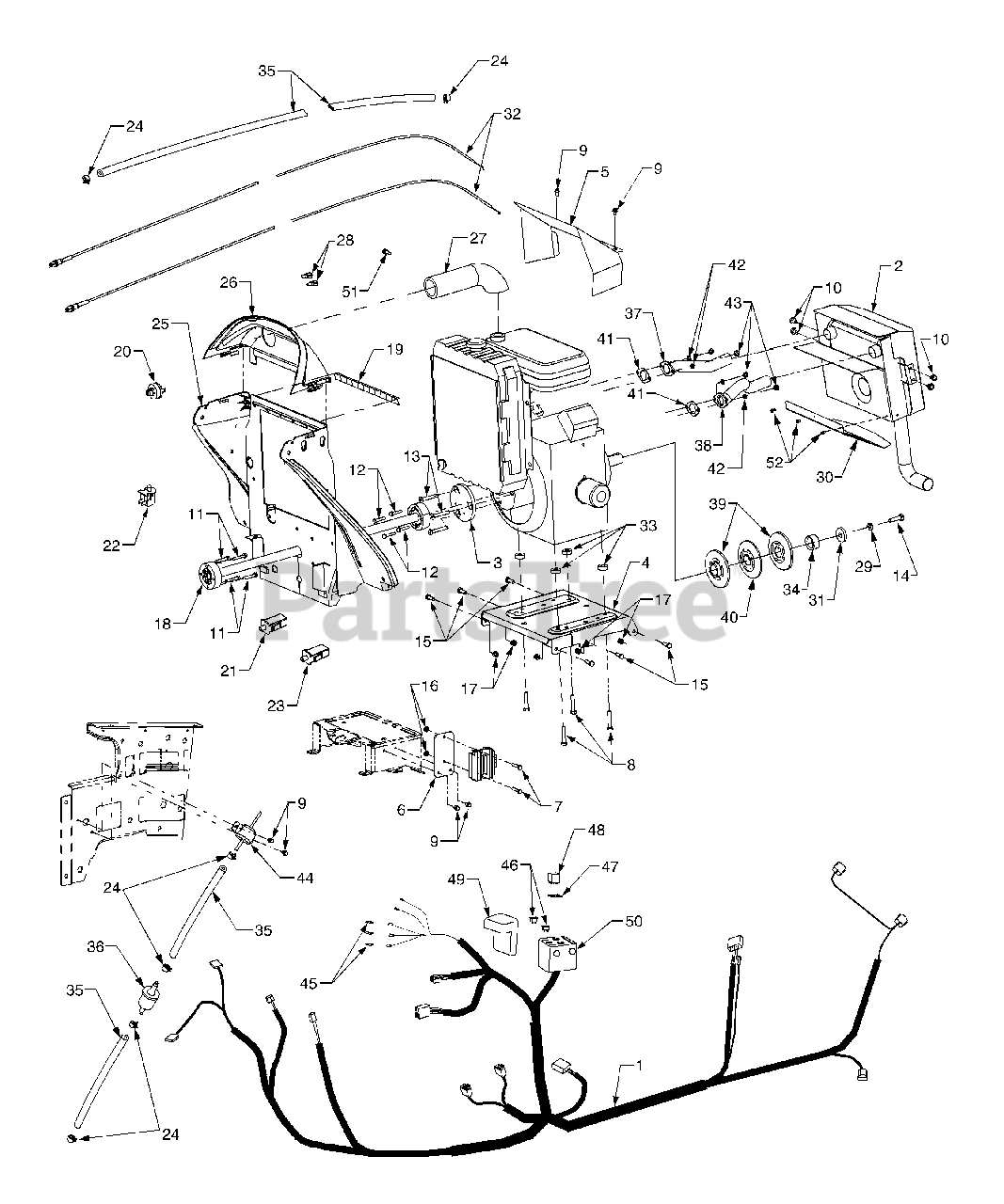

Driveshaft And Engine Connections Parts Diagram

  • Title

1

Cub Cadet 629-3066

Harness, Wire
(Superseded to 929-3066)

$

$

Not available

1

Cub Cadet 726-0154

Tie, Pushmount
(Superseded to 926-0154)

Note: Not shown

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 651-3003

Muffler Assembly

$

$

Not available

3

Cub Cadet 703-2823

Plate, Coupling Adapter

$

$

Not available

4

Cub Cadet 703-2909-0716

Plate, Engine Mounting

$

$

Not available

5

Cub Cadet 703-3080

Shield, Muffler Heat

$

$

Not available

6

Cub Cadet 703-3206

Plate, Regulator Mounting

$

$

Not available

7

Cub Cadet 710-0106

Screw, Hex Cap, 1/4-20 x 1.25 GR5

$3.99

$

In Stock, Qty 12

0

8

Cub Cadet 710-3206A

Screw, Hex Cap, M8-1.25 x 25 GR8.8

$3.99

$

In Stock, Qty 13

0

9

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0607

Screw, Hex Wash. Hd. Tapp, 5/16-18 x .5

$6.99

$

In Stock, Qty 11

0

11

Cub Cadet 710-1062

Screw, Hex Cap, Lock 1/4-20 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-1062

Screw, Hex Cap, Lock 1/4-20 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-1304

Screw, Countersink Machine, M8-1.25 x 55MM

$

$

Not available

14

Cub Cadet 710-1313

Screw, Hex Cap, M10-1.5 x 35MM

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-3038

Screw, Hex Cap, 5/16-18 x .875 GR5

$4.99

$

In Stock, only 3 left!

0

16

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 718-3094

Shaft, Drive, 27.75 Long

$368.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 759-3764

Drive Barrels Kit

Note: Not shown (2 used per tractor)

$27.99

$

In Stock, Qty 20+

0

19

Cub Cadet 722-3022

Foam Tape 46" Lg
(Superseded to 722-3022A-12)

$18.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 725-1717

Switch, Key,
(Superseded to 925-1717)

$52.99

$

In Stock, only 4 left!

0

21

Cub Cadet 725-3164A

Switch, Plunger
(Superseded to 925-3164A)

$40.99

$

In Stock, Qty 20+

0

22

Cub Cadet 725-3166

Switch, Snap Mount
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

23

Cub Cadet 725-3191A

Switch, Plunger
(Superseded to 925-3191A)

$54.99

$

In Stock, only 4 left!

0

24

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 18

0

25

Cub Cadet 731-3220

Baffle, Lower Air
(Superseded to 731-3220A)

$

$

Not available

26

Cub Cadet 731-3230

Baffle, Upper Air

$

$

Not available

27

Cub Cadet 735-0650

Hose, Intake

$

$

Not available

28

Cub Cadet 726-3055

Clip, Fuel Line Retainer

$6.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

30

Cub Cadet 703-3398

Shield, Lower Exhaust

$65.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-3017

Washer, Flat, .417 x 1.5 x .225

$10.99

$

In Stock, only 4 left!

0

32

Cub Cadet 746-3079

Cable, Choke and Throttle Control
(Superseded to 946-3079)

$41.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 750-3198

Spacer, Engine, 1.0 O.D, x .34 Lg

$

$

Not available

34

Cub Cadet 750-3201

Spacer, Crankshaft

$

$

Not available

35

Cub Cadet 751-0535-12

Fuel Line, 12 inches
(Superseded to 751-10349-13)

Note: (Fuel Tank to Filter & Filter to Pump)

$17.99

$

In Stock, only 3 left!

0

35

Cub Cadet 751-0535-68

Fuel Line, 68" Lg
(Superseded to 751-10349-72)

Note: (Fuel Pump to Engine)

$60.99

$

Usually ships in 3-6 days

0

36

Cub Cadet KH-24-050-02

Filter, Fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

37

Cub Cadet 751-3149

Pipe, Exhaust

$

$

Not available

38

Cub Cadet 751-3150

Pipe, Exhaust

$

$

Not available

39

Cub Cadet 756-3091A

Pulley Half

$54.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 756-3099

Pulley, Center

$79.99

$

In Stock, only 1 left!

0

41

Cub Cadet KM-11060-2079

Gasket, Exhaust

$5.49

$

In Stock, Qty 20+

0

42

Cub Cadet KM-461F0600

Washer, Lock, 6MM
(Superseded to KM-461DA0600)

$0.99

$

In Stock, Qty 6

0

43

Cub Cadet KM-311G0600

Nut, Hex, 6MM
(Superseded to KM-311BA0600)

$2.49

$

In Stock, only 3 left!

0

44

Cub Cadet KM-49040-2065

Pump, Fuel

$182.99

$

In Stock, Qty 6

0

45

Cub Cadet 725-1365

Bulb, Indicator
(Superseded to 925-1365)

$10.99

$

In Stock, only 1 left!

0

46

Cub Cadet 725-3243

Fuse, 25 Amp

$5.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 721-0342

Gasket, Silicone
(Superseded to 921-0342)

$7.99

$

In Stock, only 3 left!

0

48

Cub Cadet 725-1648

Relay
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 7

0

49

Cub Cadet 759-3868

Cover, Fuse Box
(Superseded to 959-3869)

$

$

Not available

50

Cub Cadet 759-3869

Box, Fuse
(Superseded to 959-3869)

$

$

Not available

51

Cub Cadet 710-3138

Screw, Engine Ground, M8-1.25 x 16

$6.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 710-3007

Screw, Hex Wash. Hd. Tapp. #12-24 x .375

$4.49

$

In Stock, Qty 20+

0
