3208 (14A-662-100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Starter Parts Diagram

Garden Tractor

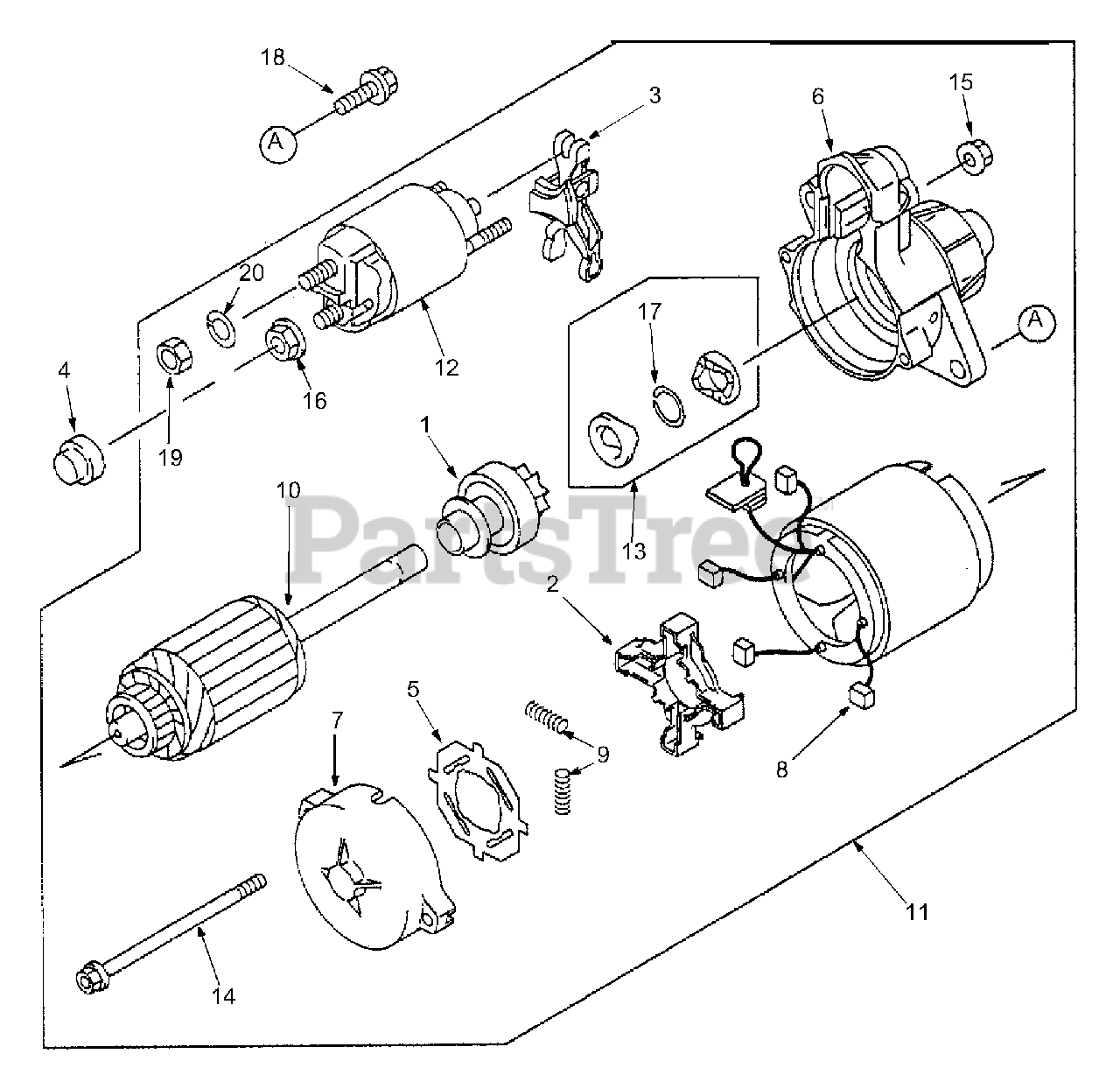

Starter Parts Diagram

  • Title

1

Cub Cadet KM-13081-2108

Clutch Ass'y

$122.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KM-13091-2068

Holder, Brush

$29.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-13168-2131

Lever, Shift

$24.99

$

In Stock, only 1 left!

0

4

Cub Cadet KM-14024-2205

Cover,

$1.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KM-16073-2098

Insulator

$10.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-16146-2186

Cone, Nose

$

$

Not available

7

Cub Cadet KM-16146-2187

Cap, End

$

$

Not available

8

Cub Cadet KM-21039-2059

Brush

$15.99

$

In Stock, only 1 left!

0

9

Cub Cadet KM-21040-2052

Spring, Brush

$3.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KM-21080-2054

Armature

$

$

Not available

11

Cub Cadet KM-21163-2101

Starter, Complete
(Superseded to KM-21163-2147)

$602.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-27010-2122

Switch, Solenoid
(Superseded to KM-27010-7005)

$189.99

$

In Stock, only 2 left!

0

13

Cub Cadet KM-32085-2097

Stopper

Note: (Includes Ref No.17)

$15.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KM-92002-2277

Bolt, Thru

$13.99

$

In Stock, Qty 5

0

15

Cub Cadet KM-92015-2146

Nut

$1.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KM-92015-2147

Nut

$7.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-92033-2081

Ring, Snap

$6.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-130B0830

Bolt, Flanged
(Superseded to KM-130CA0830)

$2.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KM-317B0800

Nut, Hex 8 MM

$0.99

$

In Stock, Qty 19

0

20

Cub Cadet KM-461F0800

Washer, Spring, 8MM
(Superseded to KM-461DA0800)

$0.99

$

In Stock, Qty 20+

0
