3208 (14A-662-100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Driveshaft And Engine Connections Parts Diagram

Garden Tractor

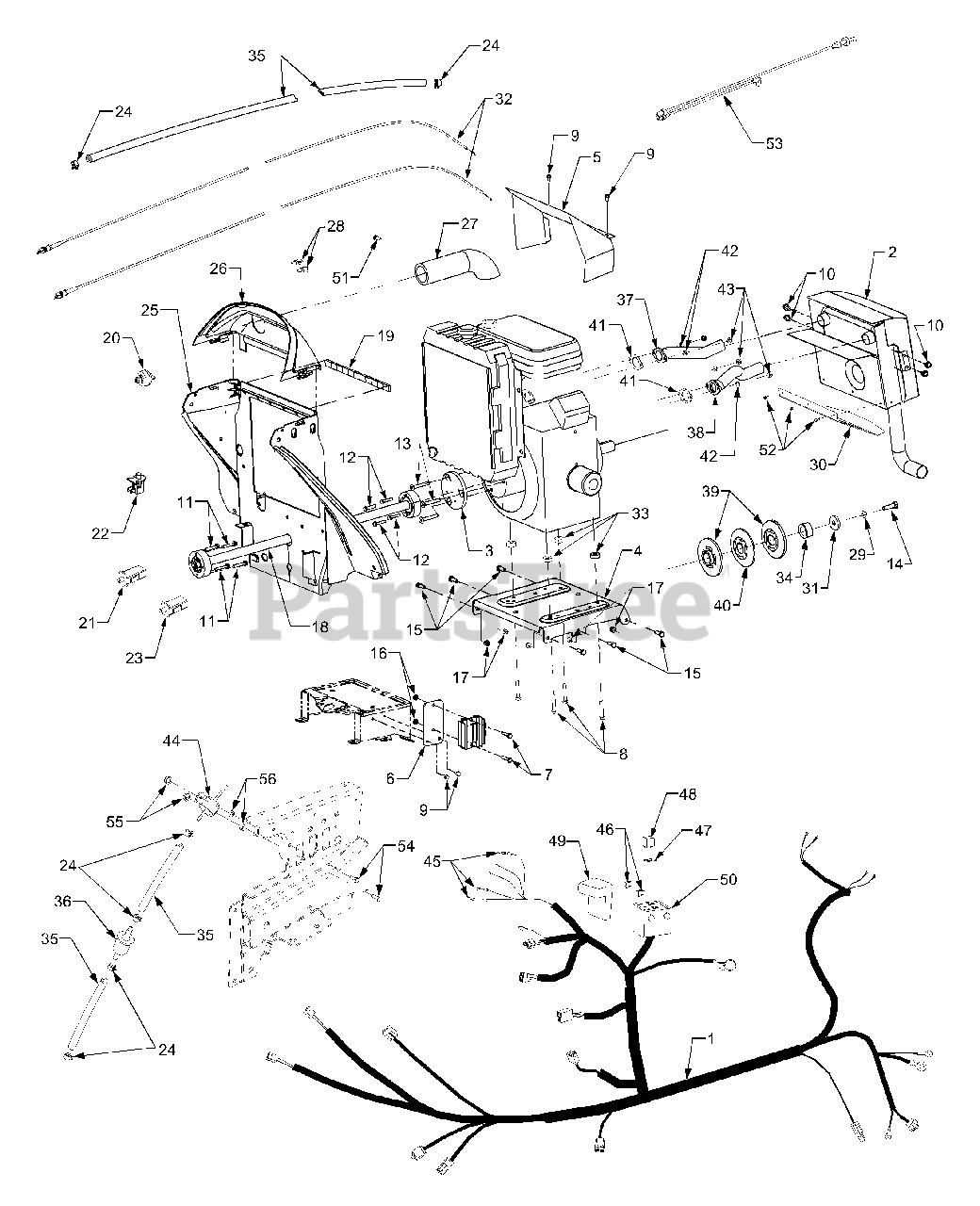

Driveshaft And Engine Connections Parts Diagram

  • Title

1

Cub Cadet 929-3075

Harness, Wire

$

$

Not available

1

Cub Cadet 926-0154

Tie, Pushmount

Note: Not shown

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 651-3003

Muffler Assembly

$

$

Not available

3

Cub Cadet 703-2823

Plate, Coupling Adapter

$

$

Not available

4

Cub Cadet 703-2909-0716

Plate, Engine Mounting

$

$

Not available

5

Cub Cadet 703-3080

Shield, Muffler Heat

$

$

Not available

6

Cub Cadet 703-3206

Plate, Regulator Mounting

$

$

Not available

7

Cub Cadet 710-0106

Screw, Hex Cap 1/4-20 x 1.25 GR5

$3.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-3206A

Screw, Hex Cap M8-1.25 x 25 GR8.8

$3.99

$

In Stock, Qty 13

0

9

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0607

Screw, Hex Wash. Hd. Tapp 5/16-18 x .5

$6.99

$

In Stock, Qty 12

0

11

Cub Cadet 710-1062

Screw, Hex Cap, Lock 1/4-20 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-1062

Screw, Hex Cap, Lock 1/4-20 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-1304

Screw, Cntrsnk Machine M8-1.25 x 55MM

Note: NLA

$

$

Not available

14

Cub Cadet 710-1313

Screw, Hex Cap M10-1.5 x 35MM

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-3038

Screw, Hex Cap 5/16-18 x .875 GR5

$4.99

$

In Stock, only 3 left!

0

16

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 10

0

17

Cub Cadet 912-0429

Nut, Hex Insert Lock 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 718-3094

Shaft, Drive, 27.75 Long

$368.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 759-3764

Drive Barrels Kit

Note: Not shown (2 used per tractor)

$27.99

$

In Stock, Qty 20+

0

19

Cub Cadet 722-3022-12

Foam Tape
(Superseded to 722-3022A-12)

$18.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 925-1717

Switch, Key

$52.99

$

In Stock, only 1 left!

0

20

Cub Cadet 959-3476A

Key, Ignition
(Superseded to 925-0201)

Note: (Set of 2)(not shown)

$9.49

$

In Stock, only 1 left!

0

20

Cub Cadet 725-1341B

Key, Ignition

Note: (no logo)(not shown)

$10.99

$

In Stock, only 1 left!

0

21

Cub Cadet 925-3164A

Switch, Plunger

Note: (reverse switch)

$40.99

$

In Stock, only 2 left!

0

22

Cub Cadet 925-3166

Switch, Snap Mount

Note: (switch switch)

$16.99

$

In Stock, Qty 20+

0

23

Cub Cadet 925-3191A

Switch, Plunger

Note: (brake switch)

$54.99

$

In Stock, only 4 left!

0

24

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 18

0

25

Cub Cadet 731-3220A

Baffle, Lower Air

$

$

Not available

26

Cub Cadet 731-3230

Baffle, Upper Air

$

$

Not available

27

Cub Cadet 735-0650

Hose, Intake

$

$

Not available

28

Cub Cadet 726-3055

Clip, Fuel Line Retainer

$6.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 936-0171

Washer, Lock, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

30

Cub Cadet 703-3398

Shield, Lower Exhaust

$65.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-3017

Washer, Flat .417 x 1.5 x .225

$10.99

$

In Stock, only 4 left!

0

32

Cub Cadet 946-3079

Cable, Choke and Throttle Control

$41.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 750-3198

Spacer, Engine 1.0 O.D, x .34 Lg

$

$

Not available

34

Cub Cadet 750-3201

Spacer, Crankshaft

Note: NLA

$

$

Not available

35

Cub Cadet 751-10349-13

Fuel Line, 12 inches (Fuel Tank to Filter & Filter to Pump)

$17.99

$

In Stock, only 3 left!

0

35

Cub Cadet 751-10349-72

Fuel Line, (Fuel Pump to Engine)

Note: (68in. Required)

$60.99

$

Usually ships in 3-6 days

0

36

Cub Cadet KH-24-050-13-S

Filter, Fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

37

Cub Cadet 751-3149

Pipe, Exhaust

$

$

Not available

38

Cub Cadet 751-3150

Pipe, Exhaust

Note: NLA

$

$

Not available

39

Cub Cadet 756-3091A

Pulley Half

$54.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 756-3099

Pulley, Center

$79.99

$

In Stock, only 1 left!

0

41

Cub Cadet KM-11060-2079

Gasket, Exhaust

$5.49

$

In Stock, only 2 left!

0

42

Cub Cadet KM-461F0600

Washer, Lock, 6MM
(Superseded to KM-461DA0600)

$0.99

$

In Stock, Qty 10

0

43

Cub Cadet KM-311BA0600

Nut, Hex, 6MM

$2.49

$

In Stock, Qty 7

0

44

Cub Cadet KM-49040-2065

Pump, Fuel

$182.99

$

In Stock, only 1 left!

0

45

Cub Cadet 925-1365

Bulb, Indicator

$10.99

$

In Stock, only 3 left!

0

46

Cub Cadet 725-3243

Fuse, 25 Amp

$5.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 921-0342

Gasket, Silicone

$7.99

$

In Stock, only 3 left!

0

48

Cub Cadet 925-1648

Relay, PTO
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 8

0

49

Cub Cadet 959-3869

Cover, Fuse Box

$

$

Not available

50

Cub Cadet 959-3869

Box, Fuse

$

$

Not available

51

Cub Cadet 710-3138

Screw, Engine Ground M8-1.25 x 16

$6.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 710-3007

Screw, Hex Wash. Hd. Tapp #12-24 x .375

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 751-3182

Hose, Vacuum

$91.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-0206

Screw, Hex Cap 1/4-20 x .88

$4.49

$

Usually ships in 3-6 days

0

55

Cub Cadet 912-3027

Nut, Hex Flange Lock 1/4-20

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 750-0808

Spacer, .320 x .56 x .36

$

$

Not available
