3208 (14A-662-100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Center Hydraulic Lift Linkage Parts Diagram

Garden Tractor

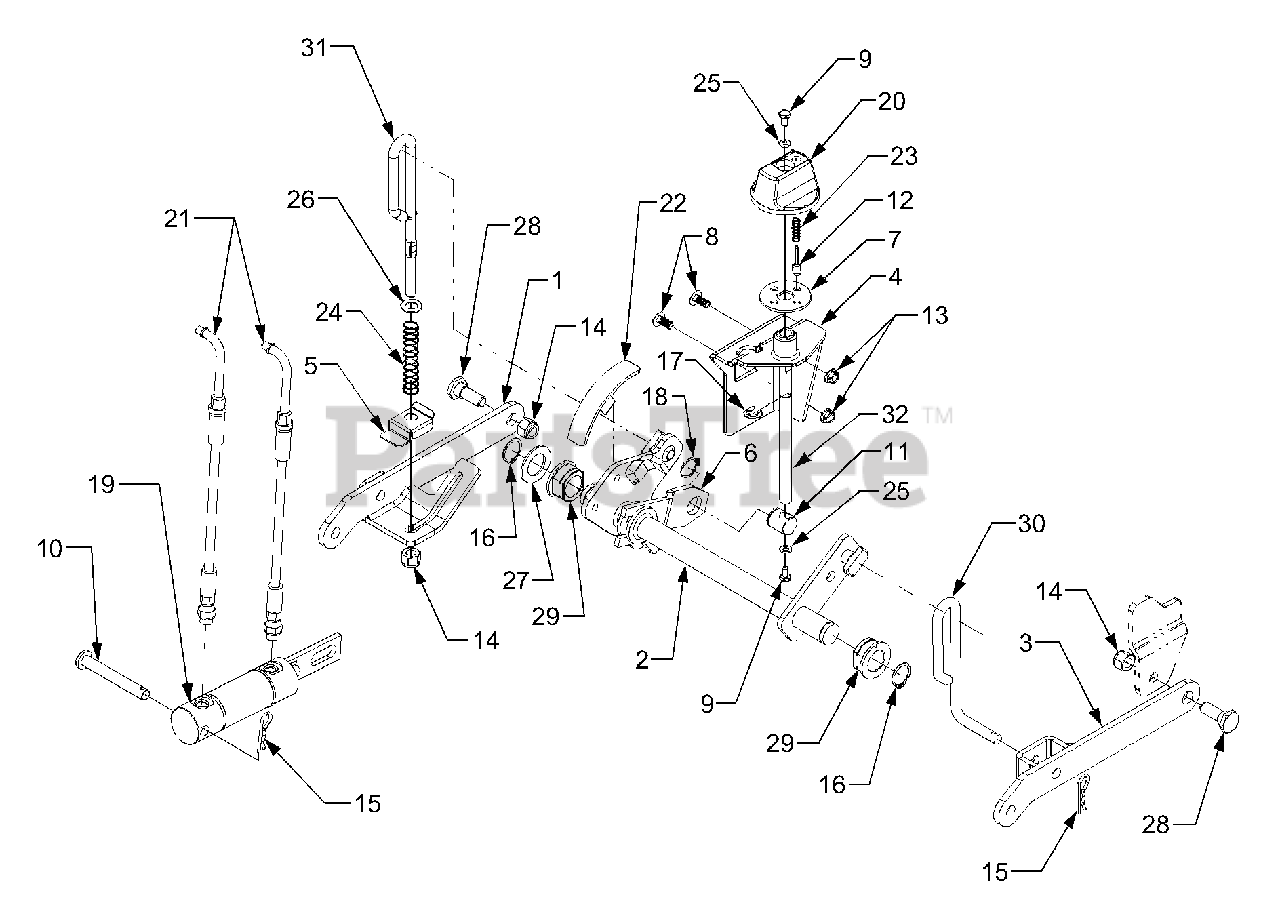

Center Hydraulic Lift Linkage Parts Diagram

  • Title

1

Cub Cadet 603-0434-0716

Link, LH Lift
(Superseded to 603-0434-0637)

$60.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0435A

Shaft Assembly, Lift

Variations

Cub Cadet 603-0435A-0637

USE 603-0435A SHAFT ASM-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 603-0456-0716

Link, RH Lift

$

$

Not available

4

Cub Cadet 603-0803

Bracket, Downstop

$81.99

$

In Stock, only 1 left!

0

5

Cub Cadet 703-3426

Stop Bracket, Lift Rod

$

$

Not available

6

Cub Cadet 703-3797

Arm, Downstop

$32.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 748-3103

Disk, Detent

$28.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 x .5 GR5

$4.99

$

In Stock, only 1 left!

0

10

Cub Cadet 711-1206

Pin, Clevis, .5 x 3.75

$13.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-1553

Ferrule, Adjustment

$40.99

$

In Stock, only 1 left!

0

12

Cub Cadet 711-1561

Pin, Detent Plunger

$29.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16 GR5
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3083

Nut, Hex Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 714-0147

Pin, Internal Cotter

$4.99

$

In Stock, Qty 7

0

16

Cub Cadet 716-0102

Snap Ring, 1.0 Dia. Shaft

$5.49

$

In Stock, Qty 20+

0

17

Cub Cadet 716-0104

Ring, 'E' Retaining, .5 Dia
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 15

0

18

Cub Cadet 716-0111

Snap Ring, .875 Dia. Shaft

$6.99

$

In Stock, Qty 8

0

19

Cub Cadet 717-3518

Cylinder, Center Lift

$599.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 720-0236

Knob
(Superseded to 920-0236)

$18.99

$

Usually ships in 3-6 days

0

Cub Cadet 777I20466

Graphic, Height Adjust

$

$

Not available

21

Cub Cadet 727-3135

Hose, Lift

$

$

Not available

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, only 2 left!

0

22

Cub Cadet 731-3215A

Indicator, Lift Position
(Superseded to 931-3215B)

$26.99

$

In Stock, only 1 left!

0

23

Cub Cadet 732-0437

Spring, Compression

$10.99

$

In Stock, only 1 left!

0

24

Cub Cadet 732-0870A

Spring, Compression

$

$

Not available

25

Cub Cadet 736-0142

Washer, Flat, .281 x .5 x .063

$4.99

$

In Stock, only 4 left!

0

26

Cub Cadet 736-0160

Washer, Flat, .536 x .93 x .050

$4.49

$

In Stock, only 2 left!

0

27

Cub Cadet 736-0250

Washer. Flat, 1.0 x 1.7 x .10

$4.49

$

In Stock, only 2 left!

0

28

Cub Cadet 738-0744A

Shoulder Screw

$11.99

$

In Stock, only 1 left!

0

29

Cub Cadet 741-0170

Bearing, Flange w/Flats
(Superseded to 941-0170)

$19.99

$

In Stock, only 4 left!

0

30

Cub Cadet 747-3330

Rod, RH Lift

$

$

Not available

31

Cub Cadet 747-3331A

Rod, LH Lift

$

$

Not available

32

Cub Cadet 747-3437

Screw, Adjustment

$94.99

$

In Stock, only 1 left!

0
