3208 (14A-662-100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Air-Filter/Muffler Parts Diagram

Garden Tractor

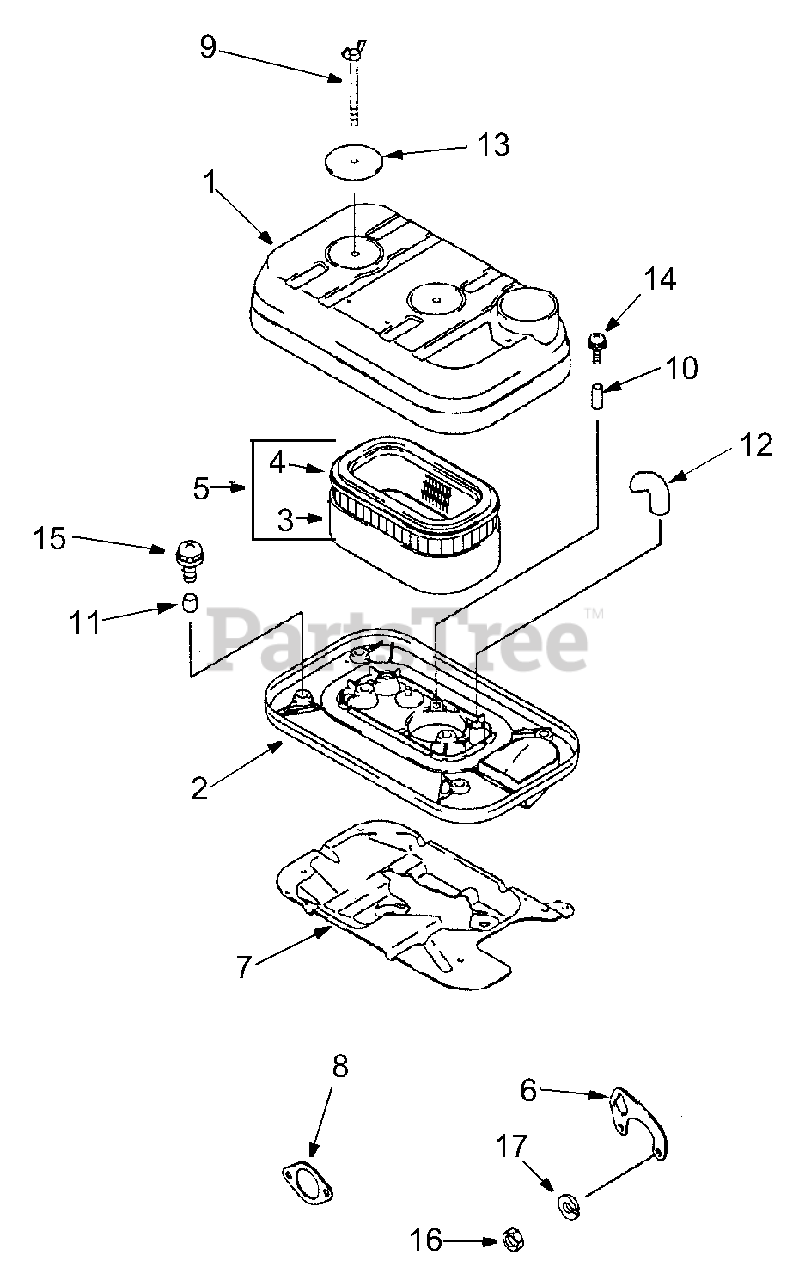

Air-Filter/Muffler Parts Diagram

  • Title

1

Cub Cadet KM-11011-2239

Case, Air Filter
(Superseded to KM-11011-2323)

$59.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KM-11011-2259

Base, Air Filter

$37.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-11013-2114

Element, Foam

$6.99

$

In Stock, Qty 20+

0

4

Cub Cadet KM-11013-2139

Element, Air Filter
(Superseded to KM-11013-2204)

$29.99

$

In Stock, Qty 10

0

5

Cub Cadet KM-11029-2005

Air Filter Ass'y
(Superseded to KM-11029-2016)

Note: (Incl. Ref. 3 & 4)

$41.99

$

In Stock, only 2 left!

0

6

Cub Cadet KM-11047-20579H

Bracket

$

$

Currently unavailable

7

Cub Cadet KM-11047-21119H

Bracket, Air Filter

$

$

Currently unavailable

8

Cub Cadet KM-11060-2079

Gasket, Muffler

$5.49

$

In Stock, Qty 20+

0

9

Cub Cadet KM-92002-2230

Bolt

$3.99

$

In Stock, only 2 left!

0

10

Cub Cadet KM-92143-2178

Collar, 5.1 x 6.3 x 14

$0.99

$

In Stock, only 4 left!

0

11

Cub Cadet KM-92143-2189

Collar, 6.2 x 7.8 x 7.5

$1.49

$

In Stock, only 3 left!

0

12

Cub Cadet KM-92191-2010

Tube

$

$

Not available

13

Cub Cadet KM-92200-20599H

Washer

$

$

Currently unavailable

14

Cub Cadet KM-234B0525

Screw, Pan, WSP

$

$

Not available

15

Cub Cadet KM-242B0516

Screw, Pan

$

$

Not available

16

Cub Cadet KM-311G0600

Nut, Hex
(Superseded to KM-311BA0600)

$2.49

$

In Stock, only 3 left!

0

17

Cub Cadet KM-461F0600

Washer, Spring
(Superseded to KM-461DA0600)

$0.99

$

In Stock, Qty 6

0
