3206 (14B-646-100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Starting System Parts Diagram

Garden Tractor

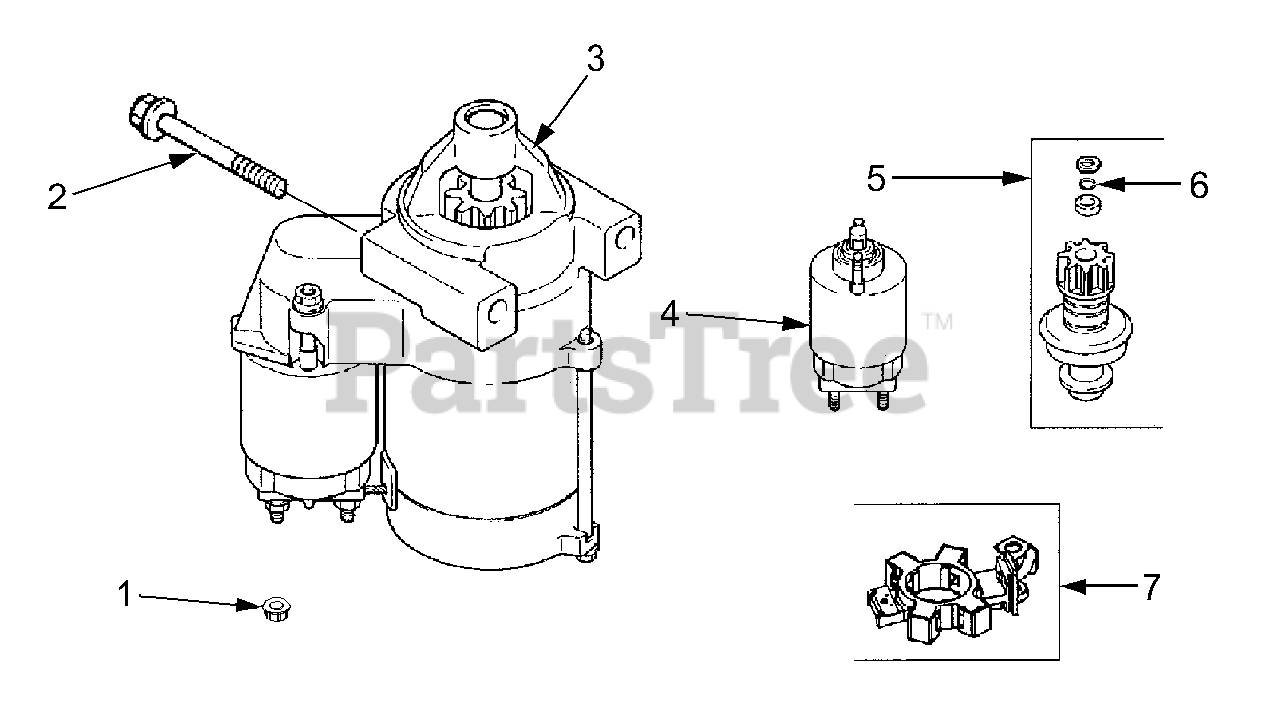

Starting System Parts Diagram

  • Title

1

Cub Cadet KH-M-0841080

Nut, Hex Flange M8 x 1.25"
(Superseded to 712-3086)

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet KH-M-0839080

Screw, Hex Flange M8 x 1.25 x 80

$

$

Currently unavailable

3

Cub Cadet KH-25-098-08-S

Starter, Solenoid Shift Assembly
(Superseded to KH-25-098-24-S)

Note: (Includes 4-7)

$314.99

$

In Stock, Qty 10

0

4

Cub Cadet KH-25-435-04-S

Kit, Solenoid

$

$

Not available

5

Cub Cadet KH-25-755-33-S

Kit, Pinion Drive

Note: (Includes 6)

$

$

Not available

6

Cub Cadet KH-25-141-05-S

Ring, Retainer

$

$

Not available

7

Cub Cadet KH-25-221-01-S

Kit, Brush

$70.99

$

Usually ships in 2-5 days

0
