3206 (14B-646-100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Brake And Control Pedals Parts Diagram

Garden Tractor

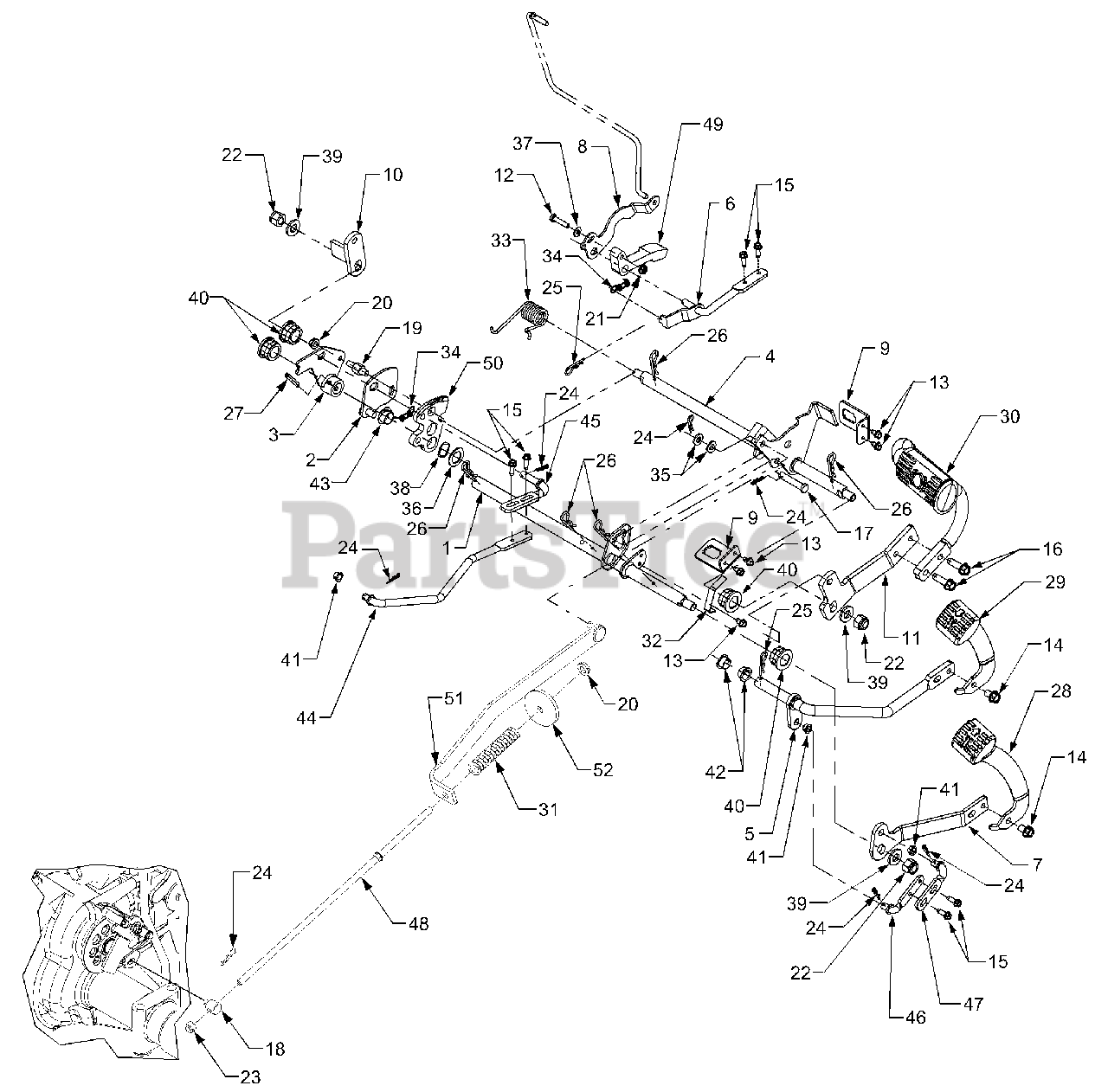

Brake And Control Pedals Parts Diagram

  • Title
1

Cub Cadet 603-0379

Shaft Assembly, Pedal

$

$

Not available

2

Cub Cadet 603-0421A

Plate, Disengagement

$

$

Not available

3

$

$

Not available

4

Cub Cadet 603-0445A

Shaft Assembly, Brake

$

$

Not available

5

Cub Cadet 603-0449

Shaft Assembly, Reverse
(Superseded to 603-0449B)

$

$

Not available

6

Cub Cadet 603-0634

Rod Assembly, Cruise

$

$

Not available

7

Cub Cadet 703-3012-0716

Link, Pedal Mounting

$

$

Not available

8

Cub Cadet 703-3020-0637

Bracket, Rod Adjust

$

$

Currently unavailable

9

Cub Cadet 703-3152-0637

Bracket, Switch

$21.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 603-0733-0716

Lever, Brake Diff Lock

$

$

Not available

11

Cub Cadet 703-3156-0716

Link, Brake Pedal
(Superseded to 703-3156A-0716)

$42.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0106

Screw, Hex Cap, 1/4-20 x 1.25 GR5

$3.99

$

In Stock, Qty 12

0

13

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0623

Screw, Hex Wash. Hd. Tapp 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0642

Screw, Hex Wash. Hd. Tapp 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-1315

Screw, Hex Wash. Hd. Tapp 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 711-0679A

Pin, Clevis, 3/8 x 2.015

$14.99

$

In Stock, only 2 left!

0

18

Cub Cadet 711-1530

Ferrule, Adjust

$

$

Not available

19

Cub Cadet 711-1138

Stud, Actuator

$

$

Not available

20

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-3058

Nut, Hex Insert Lock, 1/2-20
(Superseded to 912-3058)

$5.99

$

In Stock, Qty 16

0

23

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 714-0145

Pin, Internal Cotter

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 714-0147

Pin, Internal Cotter

$4.99

$

In Stock, Qty 6

0

27

Cub Cadet 715-0114

Pin, Spiral Spring, .25 x 1.5

$9.49

$

In Stock, Qty 20+

0

28

Cub Cadet 731-3247

Pedal, Forward

$81.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 731-3248

Pedal, Reverse

$95.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 731-3249

Pedal, Brake
(Superseded to 731-3249A)

$108.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 732-0324

Spring, Compression

$12.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 732-0859

Spring, No Cut Reverse
(Superseded to 732-0859A)

$11.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 732-0871

Spring, Torsion

$

$

Not available

34

Cub Cadet 732-3118

Spring, Extension, .380 OD x 1.44

$10.99

$

In Stock, only 1 left!

0

35

Cub Cadet 736-0275

Washer, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-0287

Washer, Flat, .79 x 1.24 x .060

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0463

Washer, Flat, .25 x .62

$4.49

$

In Stock, Qty 12

0

38

Cub Cadet 736-0621

Washer, Wave, .785 x 1.0 x .012

$17.99

$

In Stock, Qty 11

0

39

Cub Cadet 736-3019

Washer, Flat, .531 x 1.06 x .134

$5.99

$

In Stock, Qty 11

0

40

Cub Cadet 741-0598

Bearing, Hex Flange
(Superseded to 941-0598)

$12.99

$

In Stock, Qty 20+

0

41

Cub Cadet 741-3073

Bearing, Flange
(Superseded to 941-3073)

$5.49

$

In Stock, Qty 20+

0

42

Cub Cadet 741-3074

Bearing, Flange

$4.99

$

In Stock, Qty 20+

0

43

Cub Cadet 741-3084

Bearing, Flange

$5.49

$

In Stock, Qty 5

0

44

Cub Cadet 747-3319

Rod, Rear Control

$

$

Not available

45

Cub Cadet 747-3320

Rod, Front Control

$19.99

$

In Stock, only 3 left!

0

46

Cub Cadet 747-3324

Rod, Rear Connecting

$

$

Not available

47

Cub Cadet 747-3353

Rod, Front Connecting

$

$

Not available

48

Cub Cadet 747-3422

Rod, Brake

$27.99

$

In Stock, only 1 left!

0

49

Cub Cadet 748-3060

Cruise Latch

$

$

Not available

50

Cub Cadet 748-3080

Plate, Cruise
(Superseded to 748-3080A)

$

$

Not available

51

Cub Cadet 603-0738

Link Assembly, Brake
(Superseded to 903-0738)

$

$

Not available

52

Cub Cadet 736-0418A

Washer, Flat, .341 x 2.25 x .10

$10.99

$

Usually ships in 3-6 days

0
