3206 (14A-652-100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Fuel System Parts Diagram

Garden Tractor

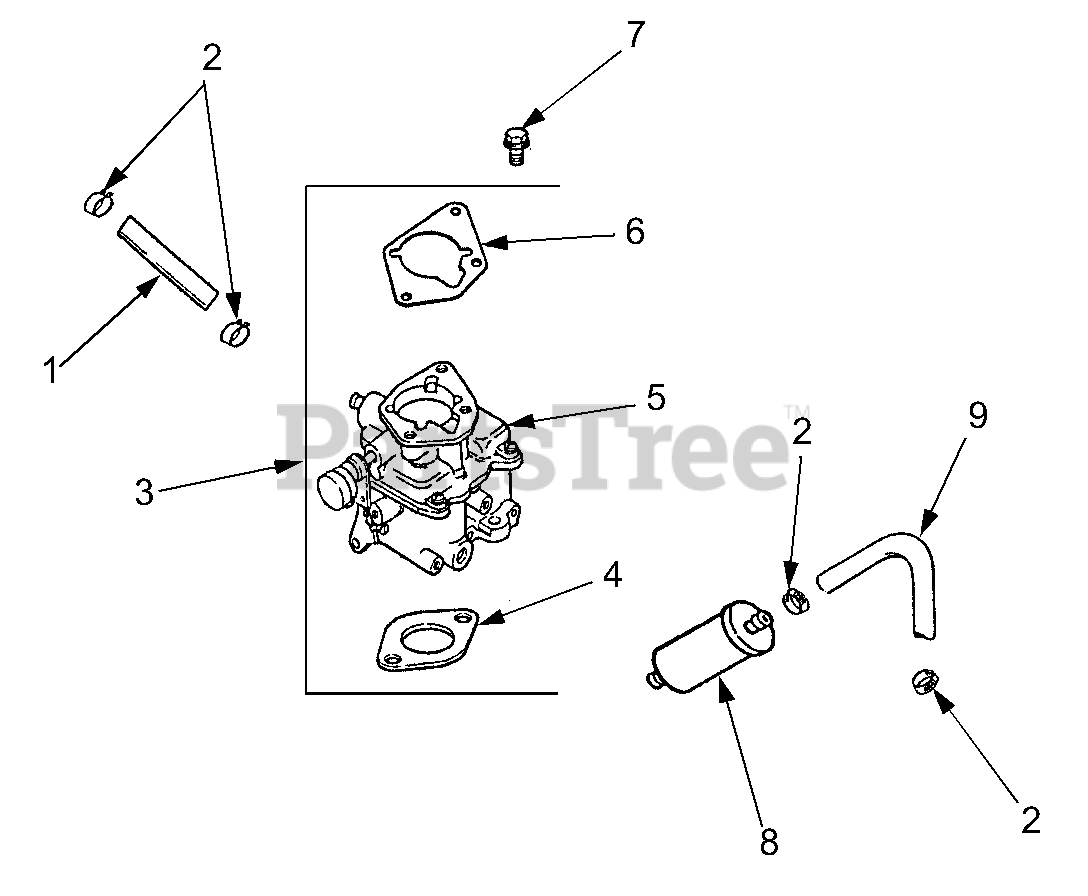

Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-52-353-20

Line, Fuel 10"
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

2

Cub Cadet KH-25-237-14-S

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

3

Cub Cadet KH-24-853-59-S

Kit, Carburetor w/Gasket
(Superseded to KH-24-853-311-S)

Note: (Includes 4-6)

$339.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-24-041-17

Gasket, Carburetor

$

$

Not available

5

Carburetor Assembly

Note: Not available separately

$

$

Not available

6

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.99

$

In Stock, Qty 20+

0

7

Cub Cadet KH-M-0651030

Screw, Hex Flange

$

$

Not available

8

Cub Cadet KH-24-050-02

Filter, Fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-24-353-12

Line, Fuel 11"

$

$

Not available

Cub Cadet KH-24-757-01

Kit, Solenoid

Note: Not Illustrated; Includes Solenoid Screw [qty. 2], O-Ring, O-Ring, O-Ring , Solenoid Assembly & Solenoid Seat.

$

$

Not available

Cub Cadet KH-24-757-02

Kit, Float Repair
(Superseded to KH-24-757-02-S)

Note: Not Illustrated; Includes Carburetor Body Gasket, Float Screw, Float Assembly and Float Shaft.

$133.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-03

Kit, Carburetor Repair
(Superseded to KH-24-757-03-S)

Note: Not Illustrated; Includes Carburetor Gasket; Carburetor Body Screw; Idle Needle Spring; U-Ring; Slow Jet O-Ring; Main Jet Screw O-Ring; Solenoid O-Rings; Inlet Needle Valve Clip; Idle Needle and Inlet Needle Valve.

$112.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-07

Kit, Choke Repair

Note: Not Illustrated; Includes Choke Plate Screws; Choke Spring; Choke Lever; Choke Shaft; Choke Plate; Choke Bushings; and Choke Lever Cap.

$

$

Not available
