3206 (14A-646-100) - Cub Cadet Garden Tractor (SN: 1J310G & Before) Starting System Parts Diagram

Garden Tractor

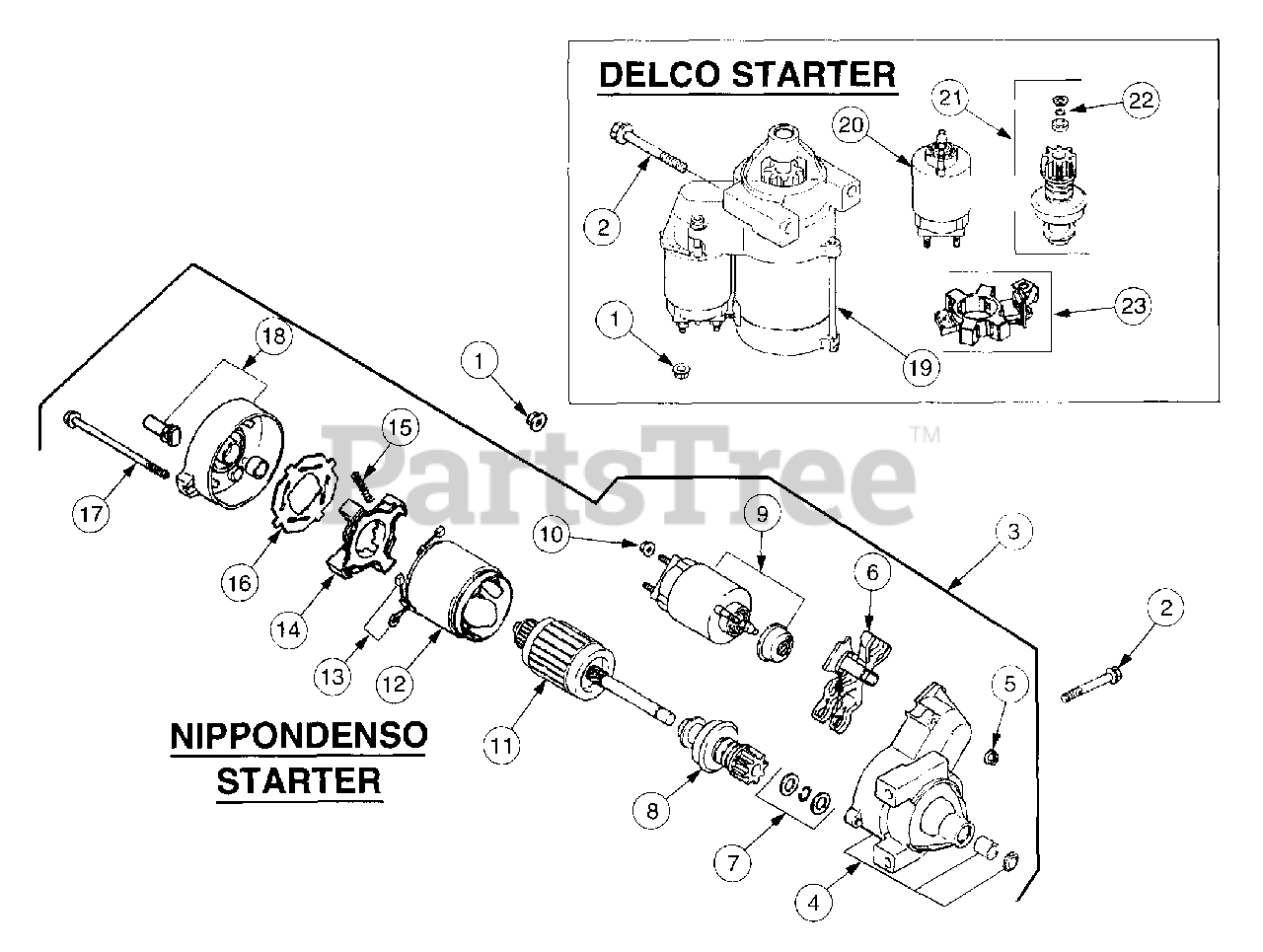

Starting System Parts Diagram

  • Title

1

Cub Cadet KH-M-0841080

Nut, Hex Flange M8 x 1.25
(Superseded to 712-3086)

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet KH-M-0839080

Screw, Hex Flange M8 x 1.25 x 80

$

$

Currently unavailable

3

Cub Cadet KH-24-098-01

Starter Assembly, Nippondenso
(Superseded to KH-25-098-24-S)

Note: (Incl. Ref #4-18)

$316.99

$

In Stock, Qty 17

0

4

Cub Cadet KH-24-081-04

Drive, End Cap

$

$

Not available

5

Cub Cadet KH-52-100-10

Nut, Starter

$

$

Not available

6

Cub Cadet KH-12-090-10

Lever, Starter Drive

$

$

Not available

7

Cub Cadet KH-24-755-84

Kit, Starter Repair

$

$

Not available

8

Cub Cadet KH-12-239-01

Drive, Pinion

$

$

Not available

9

Cub Cadet KH-52-435-02

Solenoid

$499.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-52-100-09

Nut, Starter

$

$

Not available

11

Cub Cadet KH-12-170-04

Armature, Starter

$

$

Not available

12

Cub Cadet KH-12-471-01

Frame

$

$

Not available

13

Cub Cadet KH-52-221-01

Kit, Brush and Spring

Note: (Incl. Ref 15)

$

$

Not available

14

Cub Cadet KH-52-323-03

Holder, Brush

$

$

Not available

15

Cub Cadet KH-52-089-09

Spring, Brush

$

$

Not available

16

Cub Cadet KH-52-168-01

Insulator

$

$

Not available

17

Cub Cadet KH-52-211-05

Bolt, Thru

$

$

Not available

18

Cub Cadet KH-24-301-01

Commutator, End Cap

$

$

Not available

19

Cub Cadet KH-25-098-09-S

Starter assembly, solenoid shift (Delco)
(Superseded to KH-25-098-24-S)

Note: (Includes 20-23)

$316.99

$

In Stock, Qty 17

0

20

Cub Cadet KH-25-435-05-S

Kit, solenoid
(Superseded to KH-25-435-06-S)

Note: (Includes 3 Torx head screws)

$212.99

$

In Stock, only 2 left!

0

Cub Cadet KH-25-086-113-S

Screw, external Torx head M4x0.7x26

Note: (Not shown)

$15.99

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-25-755-33-S

Kit, Pinion Drive

Note: (Includes 21)

$

$

Not available

22

Cub Cadet KH-25-141-05-S

Ring, Retainer

$3.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-25-221-01-S

Kit, Brush

$70.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-M-0841080

Nut, hex. flange M8x1.25
(Superseded to 712-3086)

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 08-S)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet KH-M-839080

Screw, hex. flange M8x1.25x80
(Superseded to KH-M-851080-S)

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 08-S)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet KH-25-098-08-S

Starter assembly, solenoid shift (Delco)
(Superseded to KH-25-098-24-S)

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 08-S)

$316.99

$

In Stock, Qty 17

0

Cub Cadet KH-25-435-04-S

Kit, solenoid

Note: (Plunger is part of the solenoid); Note: Solenoid secured to starter with 3 Philips head screws; Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 08-S)

$

$

Not available

~N/A

Screw, external Philips head M4x0.7x26

Note: (Purchase locally); Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 08-S)

$

$

Not available

Cub Cadet KH-25-755-33-S

Kit, pinion drive

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 08-S)

$

$

Not available

Cub Cadet KH-25-141-05-S

Ring, retainer

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 08-S)

$3.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-221-01-S

Kit, brush

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 08-S)

$70.99

$

Usually ships in 2-5 days

0
