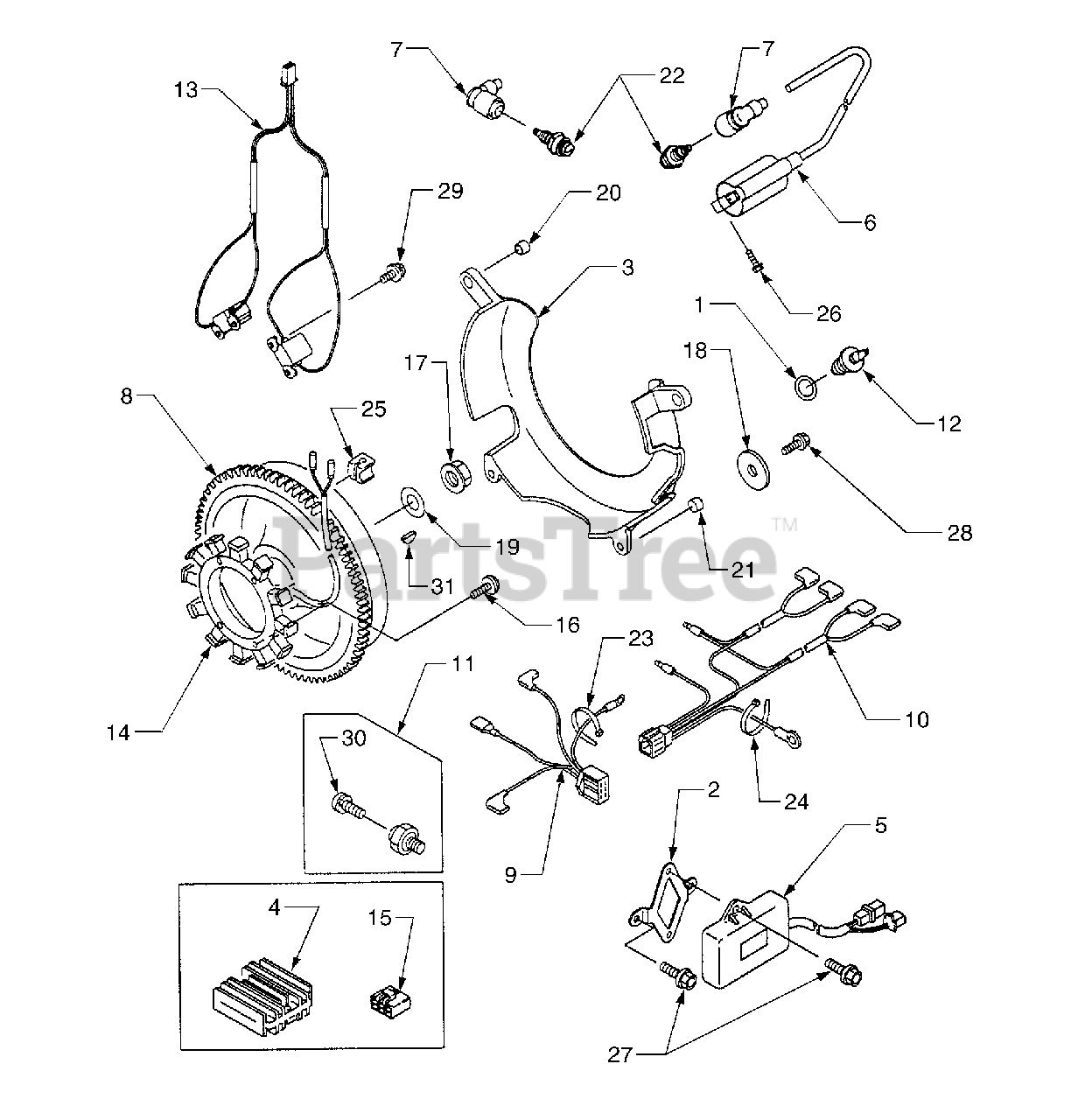

3205 (14A-685-100) - Cub Cadet Garden Tractor Engine Electrical Parts Diagram

Garden Tractor

Engine Electrical Parts Diagram

  • Title
1

Cub Cadet KM-11009-2766

Gasket, Temp. Switch

$1.49

$

In Stock, Qty 8

0

$

$

Currently unavailable

3

Cub Cadet KM-14083-2051

Cover, Flywheel

$27.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-21066-2070

Regulator, Voltage

$131.99

$

In Stock, only 3 left!

0

$317.99

$

In Stock, only 1 left!

0

6

Cub Cadet KM-21121-2083

Coil, Ignition

$73.99

$

In Stock, Qty 8

0

7

Cub Cadet KM-21130-2060

Cap, Spark Plug

$14.99

$

In Stock, Qty 8

0

8

Cub Cadet KM-21193-2149

Flywheel Assembly
(Superseded to KM-21193-0029)

$452.99

$

Usually ships in 2-5 days

0

$26.99

$

Usually ships in 2-5 days

0

$26.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-27010-2170

Switch
(Superseded to KM-27010-0851)

$19.99

$

In Stock, Qty 6

0

$38.99

$

In Stock, Qty 5

0

13

Cub Cadet KM-59026-2054

Coil, Pulsing
(Superseded to KM-59026-0048)

$86.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KM-59031-2096

Coil, Charging
(Superseded to KM-59031-2108)

$190.99

$

Usually ships in 2-5 days

0

$1.99

$

In Stock, only 1 left!

0

$1.49

$

Usually ships in 2-5 days

0

$7.49

$

Usually ships in 2-5 days

0

$2.49

$

Usually ships in 2-5 days

0

$1.49

$

Usually ships in 2-5 days

0

20

Cub Cadet KM-92027-1568

Collar, 8.3 x 11.5 x 9

$1.99

$

In Stock, only 4 left!

0

21

Cub Cadet KM-92027-2096

Collar, 6.2 x 7.8 x 5

$0.99

$

Usually ships in 2-5 days

0

22

Cub Cadet KM-92070-2072

Plug, Spark
(Superseded to KM-BMR4A)

$3.99

$

In Stock, Qty 11

0

$1.99

$

Usually ships in 2-5 days

0

$

$

Not available

$3.49

$

Usually ships in 2-5 days

0

26

Cub Cadet KM-130B0520

Bolt, Flanged, 5 x 20

$

$

Not available

27

Cub Cadet KM-130B0614

Bolt, Flanged, 6 x 14

$

$

Not available

28

Cub Cadet KM-130B0616

Bolt, Flanged, 6 x 16
(Superseded to KM-130BA0616)

$1.49

$

In Stock, only 2 left!

0

29

Cub Cadet KM-225B0414

Screw, Pan, 4 x 14

$

$

Not available

30

Cub Cadet KM-241B0406

Screw, Pan, 4 x 6

$0.99

$

In Stock, Qty 9

0

31

Cub Cadet KM-510A5100

Key, Woodruff

$3.49

$

In Stock, Qty 20+

0
