3205 (14A-685-100) - Cub Cadet Garden Tractor Cylinder And Crankcase Parts Diagram

Garden Tractor

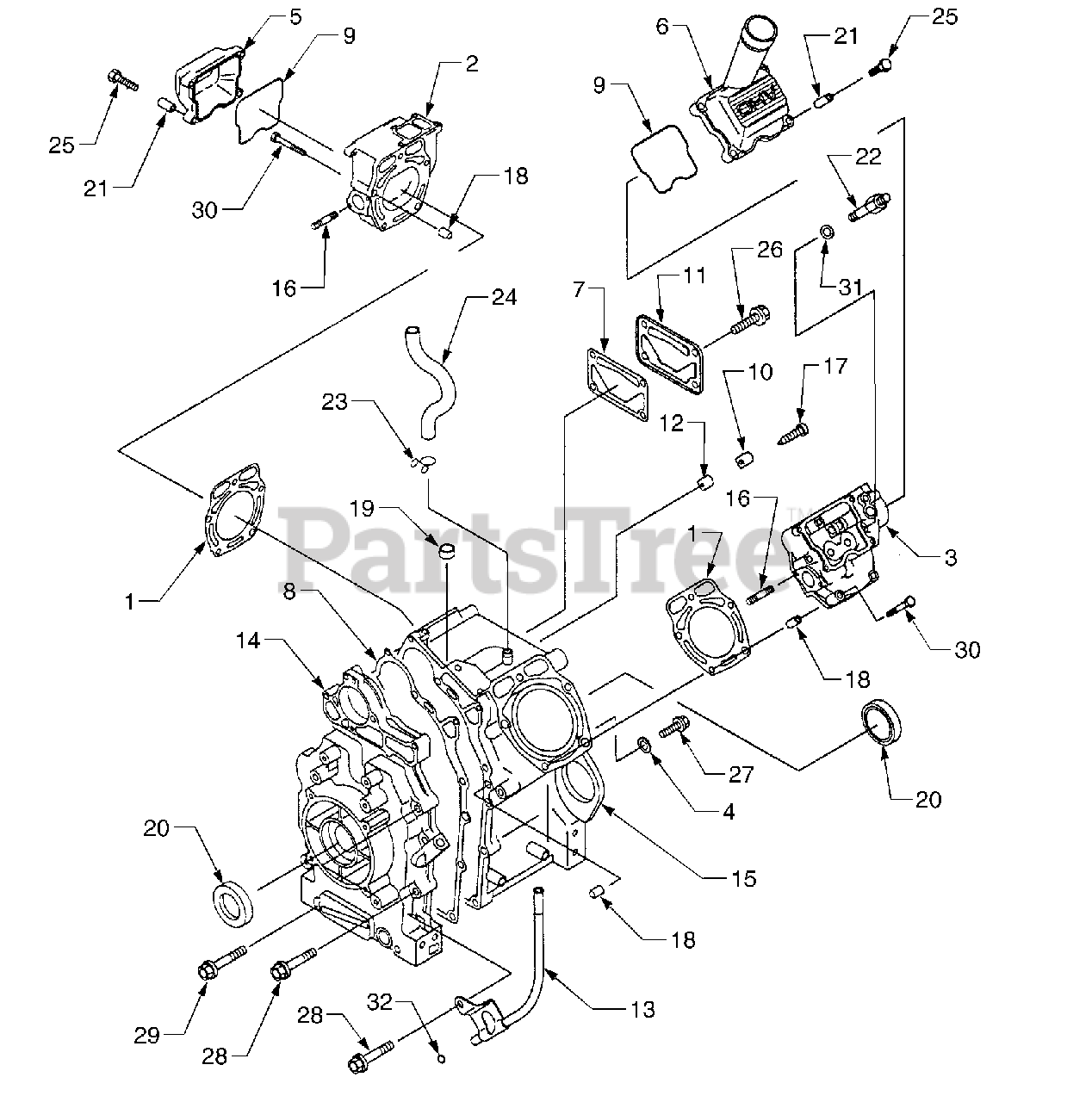

Cylinder And Crankcase Parts Diagram

  • Title

Cub Cadet KM-FD620D-AS21

Engine, Complete

$

$

Not available

1

Cub Cadet KM-11004-2107

Gasket, Head

$19.99

$

In Stock, only 2 left!

0

2

Cub Cadet KM-11008-2087

Head, Complete Cylinder
(Superseded to KM-11008-2135)

$

$

Not available

3

Cub Cadet KM-11008-6015

Head, Complete Cylinder

$

$

Not available

4

Cub Cadet KM-11009-3028

Gasket

$0.99

$

In Stock, Qty 10

0

5

Cub Cadet KM-11022-2056

Cover, Valve

$16.99

$

In Stock, only 1 left!

0

6

Cub Cadet KM-11022-2063

Cover, Valve w/Oil Fill

$33.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-11060-2089

Gasket, Cover

$4.49

$

In Stock, Qty 10

0

8

Cub Cadet KM-11060-2284

Gasket, Crankcase Cover
(Superseded to KM-11060-2449)

$22.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-11060-2332

Gasket, Valve Cover
(Superseded to KM-11061-2182)

$7.99

$

In Stock, Qty 20+

0

10

Cub Cadet KM-13183-2120

Plate

$0.99

$

In Stock, only 2 left!

0

11

Cub Cadet KM-14024-2292

Cover

$5.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-16126-2146

Valve

$0.99

$

In Stock, Qty 9

0

13

KM-32151-20319H

Pipe, Oil Gauge

$

$

Not available

14

Cub Cadet KM-49015-6130

Cover, Crankcase

$453.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KM-49120-6115

Crankcase Complete

$

$

Not available

16

Cub Cadet KM-92004-2142

Stud

$1.49

$

In Stock, Qty 20+

0

17

Cub Cadet KM-92009-2308

Screw

$0.99

$

In Stock, Qty 6

0

18

Cub Cadet KM-92043-1037

Pin, Dowel, M10 x 8.2 x 14

$0.99

$

In Stock, Qty 20+

0

19

Cub Cadet KM-92049-2097

Seal, Oil

$2.49

$

In Stock, only 3 left!

0

20

Cub Cadet KM-92049-2110

Seal, Oil
(Superseded to KM-92049-2112)

$6.99

$

In Stock, Qty 14

0

21

Cub Cadet KM-92143-2010

Collar

$0.99

$

In Stock, Qty 9

0

22

Cub Cadet KM-92151-2070

Bolt

$14.99

$

In Stock, only 1 left!

0

23

Cub Cadet KM-92170-2002

Clamp

$0.99

$

In Stock, Qty 7

0

24

Cub Cadet KM-92190-2147

Tube

$7.99

$

In Stock, only 1 left!

0

25

Cub Cadet KM-130B0625

Bolt, Flanged, M6 x 25
(Superseded to KM-130BA0625)

$1.49

$

In Stock, Qty 20+

0

26

Cub Cadet KM-130B0816

Bolt, Flanged, M8 x 16
(Superseded to KM-130BA0816)

$1.99

$

In Stock, only 4 left!

0

27

Cub Cadet KM-130C0812

Bolt, Flanged, M8 x 12
(Superseded to KM-130AB0812)

$0.99

$

Usually ships in 2-5 days

0

28

Cub Cadet KM-130G0845

Bolt, Flanged, M8 x 45
(Superseded to KM-130BA0845)

$1.99

$

In Stock, Qty 13

0

29

Cub Cadet KM-130G0860

Bolt, Flanged, M8 x 60
(Superseded to KM-130BA0860)

$1.99

$

In Stock, Qty 9

0

30

Cub Cadet KM-130G0865

Bolt, Flanged, M8 x 65
(Superseded to KM-130BA0865)

$1.99

$

Usually ships in 2-5 days

0

31

Cub Cadet KM-410B0800

Washer, Plain, 8MM

$

$

Not available

32

Cub Cadet KM-670B2010

O-Ring, 10MM

$1.99

$

In Stock, Qty 12

0
