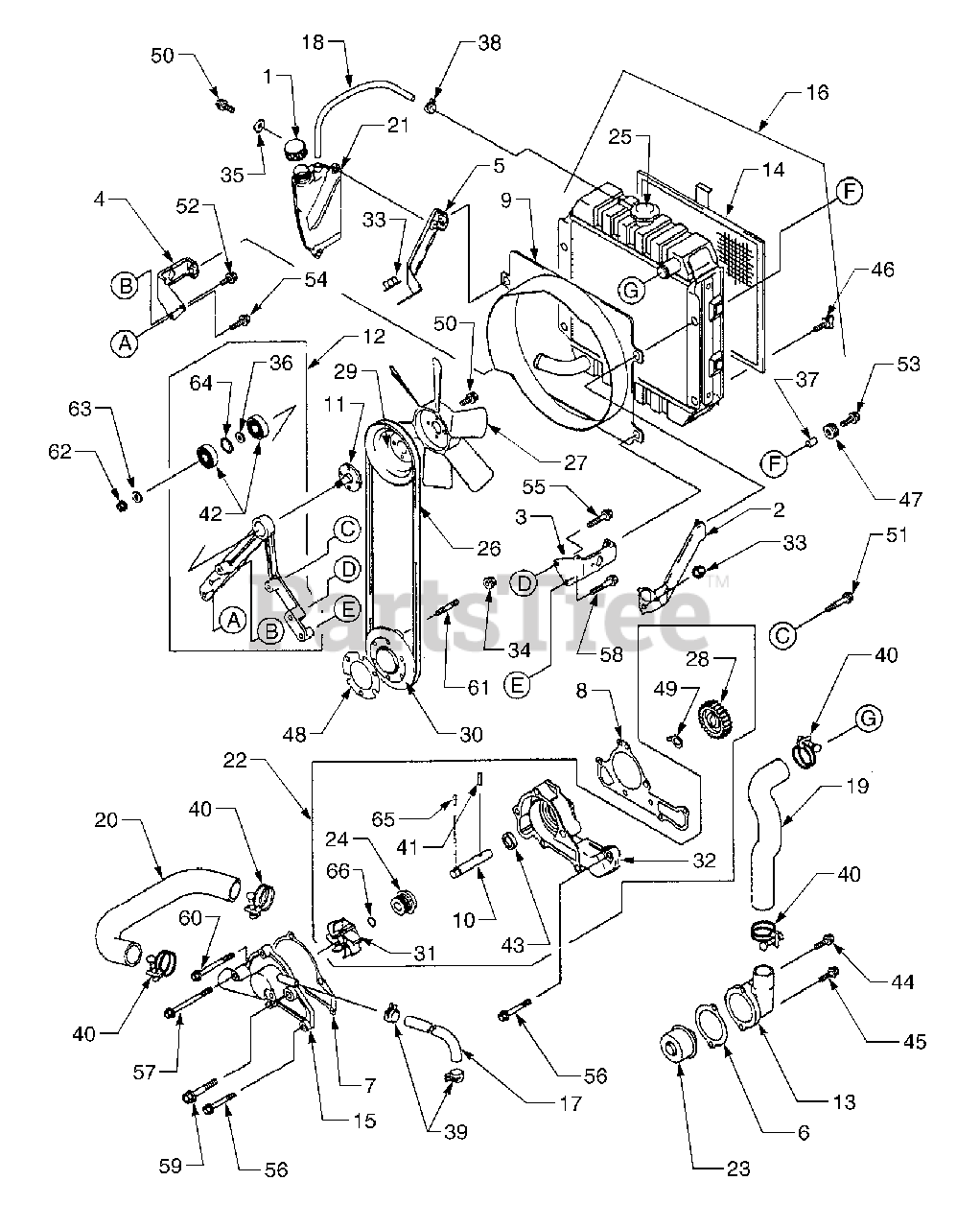

3205 (14A-685-100) - Cub Cadet Garden Tractor Cooling Parts Diagram

Garden Tractor

Cooling Parts Diagram

  • Title

1

Cub Cadet KM-11012-1084

Cap, Reservoir

$1.99

$

In Stock, Qty 20+

0

2

Cub Cadet KM-11048-20379H

Bracket

$

$

Currently unavailable

3

Cub Cadet KM-11049-20259H

Bracket

$

$

Currently unavailable

4

Cub Cadet KM-11049-20269H

Bracket

$

$

Currently unavailable

5

Cub Cadet KM-11049-20279H

Bracket

$

$

Currently unavailable

6

Cub Cadet KM-11060-2084

Gasket, Thermostat Cover

$3.49

$

In Stock, Qty 20+

0

7

Cub Cadet KM-11060-2288

Gasket, Pump Cover
(Superseded to KM-11060-2451)

$5.99

$

In Stock, Qty 17

0

8

Cub Cadet KM-11060-2289

Gasket, Pump Case
(Superseded to KM-11060-2450)

$8.49

$

In Stock, Qty 19

0

9

Cub Cadet KM-13070-2093

Guide

$34.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KM-13107-2097

Shaft, Impeller

$9.49

$

In Stock, only 3 left!

0

11

Cub Cadet KM-13107-2246

Shaft, Pulley

$58.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-13304-6007

Housing Assembly

$101.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KM-14024-2293

Cover, Thermostat

$17.99

$

In Stock, only 1 left!

0

14

Cub Cadet KM-14037-2128

Screen

$117.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KM-16142-2069

Cover, Pump
(Superseded to KM-16142-0729)

$22.99

$

In Stock, only 4 left!

0

16

Cub Cadet KM-39061-2056

Radiator Assembly

$747.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-39062-2051

Hose, Cooling, 7.5 x 13.5 x 30.5

$5.99

$

In Stock, only 4 left!

0

18

Cub Cadet KM-39062-2054

Hose, Cooling, 7.5 x 10.5 x 46

$7.49

$

Usually ships in 2-5 days

0

19

Cub Cadet KM-39062-2062

Hose, Cooling

$26.99

$

In Stock, only 1 left!

0

20

Cub Cadet KM-39062-2063

Hose, Cooling

$45.99

$

In Stock, only 3 left!

0

21

Cub Cadet KM-43078-2055

Reservoir

$47.99

$

In Stock, Qty 11

0

22

Cub Cadet KM-49044-2058

Pump, Water
(Superseded to KM-49044-2066)

$79.99

$

In Stock, Qty 8

0

23

Cub Cadet KM-49054-2056

Thermostat

$31.99

$

In Stock, Qty 20+

0

24

Cub Cadet KM-49063-2056

Seal, Mechanical
(Superseded to KM-49063-1056)

$18.99

$

In Stock, only 3 left!

0

25

Cub Cadet KM-49085-2052

Cap Assembly, Pressure

$23.99

$

In Stock, Qty 8

0

26

Cub Cadet KM-59011-2056

Belt, Fan

$26.99

$

In Stock, Qty 7

0

27

Cub Cadet KM-59041-2063

Fan, Cooling

$44.99

$

In Stock, only 1 left!

0

28

Cub Cadet KM-59051-2113

Gear, Spur

$5.99

$

In Stock, only 1 left!

0

29

Cub Cadet KM-59091-20529H

Pulley

$

$

Currently unavailable

30

Cub Cadet KM-59091-2053

Pulley

$69.99

$

Usually ships in 2-5 days

0

31

Cub Cadet KM-59256-2057

Impeller

$4.99

$

Usually ships in 2-5 days

0

32

Cub Cadet KM-59336-2052

Case, Pump

$35.99

$

Usually ships in 2-5 days

0

33

Cub Cadet KM-92015-1014

Nut

$0.99

$

In Stock, Qty 10

0

34

Cub Cadet KM-92015-1143

Nut

$0.99

$

In Stock, Qty 10

0

35

Cub Cadet KM-92022-2247

Washer

$0.99

$

Usually ships in 2-5 days

0

36

Cub Cadet KM-92026-2311

Spacer, 12 x 18 x 1.4

$0.99

$

In Stock, only 1 left!

0

37

Cub Cadet KM-92027-217

Collar

$

$

Currently unavailable

38

Cub Cadet KM-92037-2001

Clamp

$1.49

$

In Stock, only 2 left!

0

39

Cub Cadet KM-92037-2065

Clamp

$

$

Not available

40

Cub Cadet KM-92037-2210

Clamp

$2.49

$

In Stock, only 1 left!

0

41

Cub Cadet KM-92042-014

Pin

$0.99

$

In Stock, Qty 11

0

42

Cub Cadet KM-92045-2191

Bearing, Ball

$16.99

$

Usually ships in 2-5 days

0

43

Cub Cadet KM-92049-2111

Seal, Oil

$4.49

$

In Stock, Qty 10

0

44

Cub Cadet KM-92150-2230

Bolt, .6 x 40

$1.99

$

Usually ships in 2-5 days

0

45

Cub Cadet KM-92150-2231

Bolt, .6 x 20

$2.49

$

Usually ships in 2-5 days

0

46

Cub Cadet KM-92150-2255

Bolt

$5.99

$

Usually ships in 2-5 days

0

47

Cub Cadet KM-92160-2034

Damper

$1.49

$

In Stock, only 1 left!

0

48

Cub Cadet KM-92180-2013

Shim, 0.6 Thk

$1.99

$

In Stock, Qty 6

0

Cub Cadet KM-92180-2014

Shim, 1.2 Thk

$2.49

$

In Stock, Qty 11

0

49

Cub Cadet KM-92200-2044

Washer

$3.49

$

In Stock, only 1 left!

0

50

Cub Cadet KM-130B0616

Bolt, Flanged, 6 x 16
(Superseded to KM-130BA0616)

$1.49

$

In Stock, only 2 left!

0

51

Cub Cadet KM-130B0635

Bolt, Flanged, 6 x 35
(Superseded to KM-130BA0635)

$1.49

$

In Stock, Qty 6

0

52

Cub Cadet KM-130B0820

Bolt, Flanged, 8 x 20

$

$

Not available

53

Cub Cadet KM-130B0825

Bolt, Flanged, 8 x 25

$

$

Not available

54

Cub Cadet KM-130B0830

Bolt, Flanged, 8 x 30
(Superseded to KM-130CA0830)

$2.99

$

Usually ships in 2-5 days

0

55

Cub Cadet KM-130B0840

Bolt, Flanged, 8 x 40
(Superseded to KM-130BA0840)

$2.49

$

In Stock, Qty 7

0

56

Cub Cadet KM-130G0645

Bolt, Flanged, 6 x 45
(Superseded to KM-130BA0645)

$1.49

$

In Stock, Qty 8

0

57

Cub Cadet KM-130G0675

Bolt, Flanged, 6 x 75
(Superseded to KM-130CA0675)

$2.99

$

In Stock, only 2 left!

0

58

Cub Cadet KM-130G0845

Bolt, Flanged, 8 x 45
(Superseded to KM-130BA0845)

$1.99

$

In Stock, Qty 13

0

59

Cub Cadet KM-130G0870

Bolt, Flanged, 8 x 70
(Superseded to KM-130CA0870)

$2.49

$

In Stock, only 3 left!

0

60

Cub Cadet KM-130H0665

Bolt, Flanged, 6 x 65
(Superseded to KM-130BA0665)

$1.99

$

In Stock, Qty 5

0

61

Cub Cadet KM-171G0818

Bolt, Stud

$1.99

$

In Stock, only 2 left!

0

62

Cub Cadet KM-315B1000

Nut, Hex Fine
(Superseded to KM-315AA1000)

$0.99

$

In Stock, Qty 10

0

63

Cub Cadet KM-410B1000

Washer, Plain
(Superseded to KM-410AA1000)

$0.99

$

Usually ships in 2-5 days

0

64

Cub Cadet KM-481J2800

Circlip

$1.99

$

Usually ships in 2-5 days

0

65

Cub Cadet KM-551A0314

Pin, Dowel

$0.99

$

In Stock, Qty 9

0

66

Cub Cadet KM-670B1507

O-Ring

$1.49

$

In Stock, Qty 15
