3204 (14A-641-100) - Cub Cadet Garden Tractor Lower Power Steering Parts Diagram

Garden Tractor

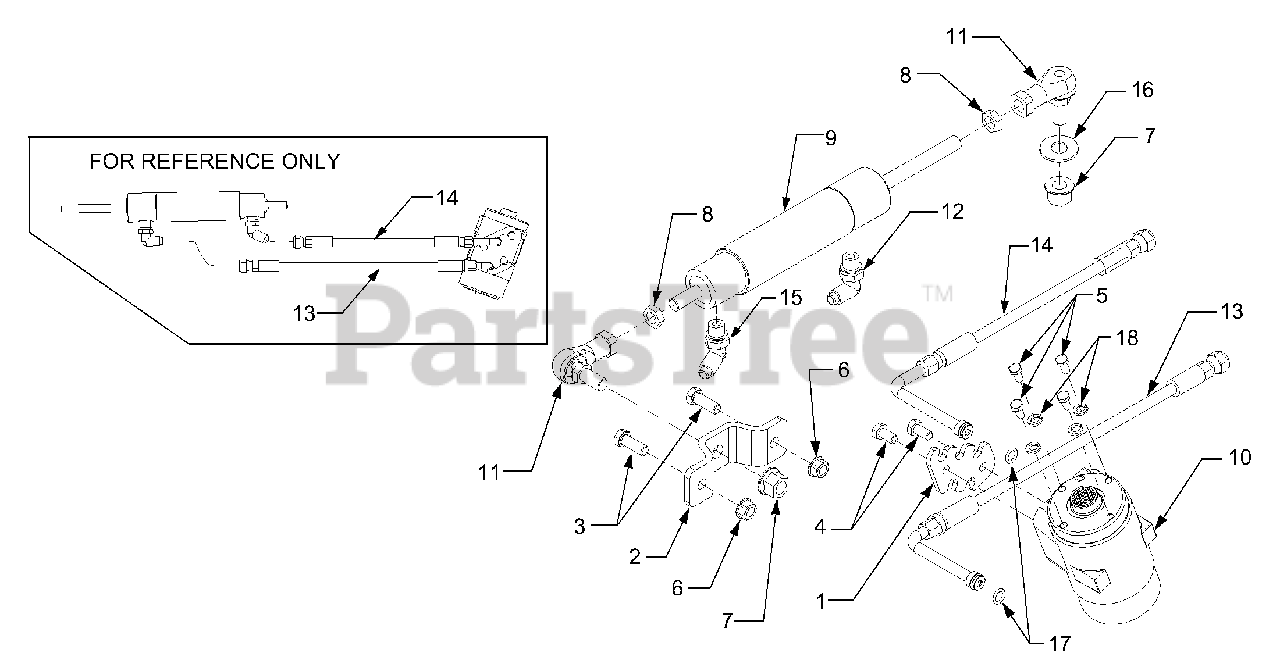

Lower Power Steering Parts Diagram

  • Title

1

Cub Cadet 703-3015-0716

Plate, Steering Pump Port
(Superseded to 703-3015-0637)

$

$

Not available

2

Cub Cadet 703-3189-0716

Bracket, Cylinder Mounting

$

$

Not available

3

Cub Cadet 710-0514

Screw, Hex Cap 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3138

Screw, Hex Cap M8-1.25 x 16MM GR5

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-3140

Screw, Hex Cap, M6 x 14MM

$

$

Not available

6

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3103

Nut, Hex Flange Lock, M12 x 1.75

$4.49

$

In Stock, only 2 left!

0

8

Cub Cadet 712-3104

Nut, Hex, M12 x 1.75 RH

$6.99

$

In Stock, only 2 left!

0

9

Cub Cadet 717-3424

Cylinder, Steering

$416.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 717-3442

Pump, Hydraulic Steering
(Superseded to 917-3442)

$

$

Not available

11

Cub Cadet 723-0462

Ball Joint, 12MM x 1.75 RH

$69.99

$

In Stock, Qty 11

0

12

Cub Cadet 727-3012

Fitting, 90 Degree Elbow

$26.99

$

In Stock, only 4 left!

0

13

Cub Cadet 727-3126

Hose, Front Steering

$142.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 727-3127

Hose, Rear Steering

$166.99

$

In Stock, only 1 left!

0

15

Cub Cadet 727-3159

Fitting, 45 Degree

$30.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-3084

Washer, Flat, .51 x 1.12 x .060

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 721-0493

O-Ring, .426 x .566 x .070

$4.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0329

Washer, Lock, 1/4"
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0
