3204 (14A-641-100) - Cub Cadet Garden Tractor Front PTO Parts Diagram

Garden Tractor

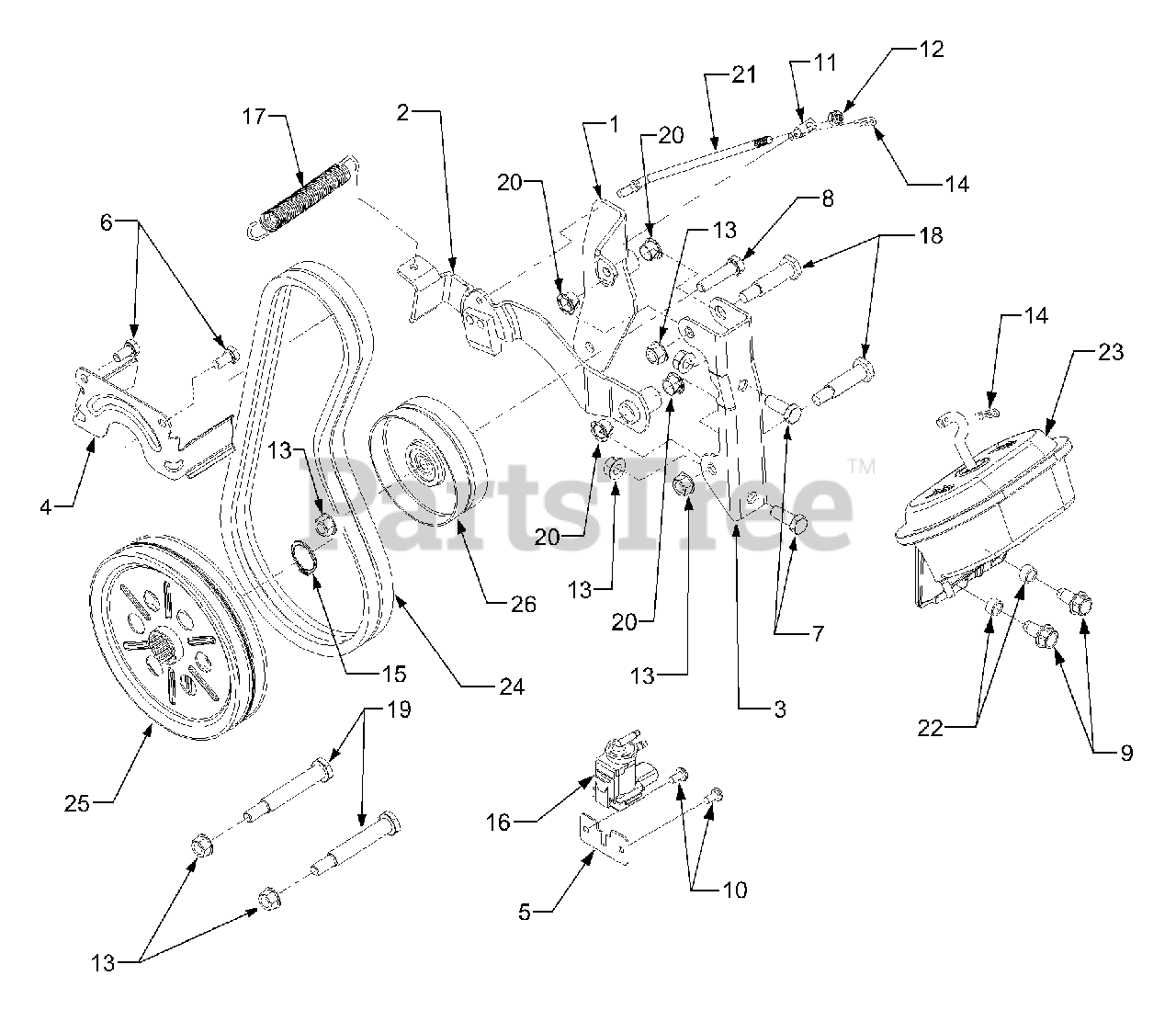

Front PTO Parts Diagram

  • Title
1

Cub Cadet 603-0442-0637

Bracket, Idler

$114.99

$

In Stock, only 2 left!

0

2

Cub Cadet 759-3867

Bracket Assembly, Brake

$

$

Not available

3

Cub Cadet 703-3009-0637

Bracket, PTO Mounting

$

$

Not available

$38.99

$

In Stock, only 2 left!

0

5

Cub Cadet 703-3812-0716

Bracket, Solenoid Mounting

$

$

Currently unavailable

6

Cub Cadet 710-0237

Screw, Hex Cap 5/16-24 x .625 GR5

$4.49

$

In Stock, only 1 left!

0

7

Cub Cadet 710-0514

Screw, Hex Cap 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0520

Screw, Hex Cap 3/8-16 x 1.5 GR5

$4.49

$

In Stock, Qty 5

0

9

Cub Cadet 710-0623

Screw, Hex Wash. Hd. Tapp 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0748

Screw, Phil. Hd. Tapp #12-14 x .5

$

$

Not available

11

Cub Cadet 711-1196

Ferrule, Brake Adjustment

$

$

Not available

12

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

13

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 716-0102

Snap Ring, 1.0 Dia Shaft

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet 759-04258

Solenoid, Kit Vacuum Actuator

Note: Replaces 725-3278

$144.99

$

In Stock, only 2 left!

0

17

Cub Cadet 732-0470A

Spring, Extension, .530 x 4.74
(Superseded to 932-0470A)

$9.99

$

In Stock, only 4 left!

0

18

Cub Cadet 738-0213

Shoulder Screw, .498 x 1.45

$7.99

$

In Stock, only 2 left!

0

19

Cub Cadet 738-3056

Shoulder Screw
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

20

Cub Cadet 741-0491

Bearing, Nylon Flange

$5.49

$

In Stock, only 3 left!

0

21

Cub Cadet 747-3322

Rod, PTO Brake

$

$

Not available

22

Cub Cadet 750-0526

Spacer, .380 x .5 x .265

$4.99

$

In Stock, only 1 left!

0

23

Cub Cadet 751-3173

Vacuum Actuator
(Superseded to 951-3173)

$137.99

$

In Stock, Qty 5

0

24

Cub Cadet 754-3084

V-Belt, A-Section x 37.63 (Set of two belts)
(Superseded to 954-3084)

$85.99

$

In Stock, Qty 20+

0

25

Cub Cadet 756-3092

Pulley, PTO Drive. 6.75-Double

$124.99

$

In Stock, only 1 left!

0

26

Cub Cadet 756-3094

Pulley, Flat Idler, 4.0

$85.99

$

In Stock, only 1 left!

0
