3204 (14A-641-100) - Cub Cadet Garden Tractor Front Axle Parts Diagram

Garden Tractor

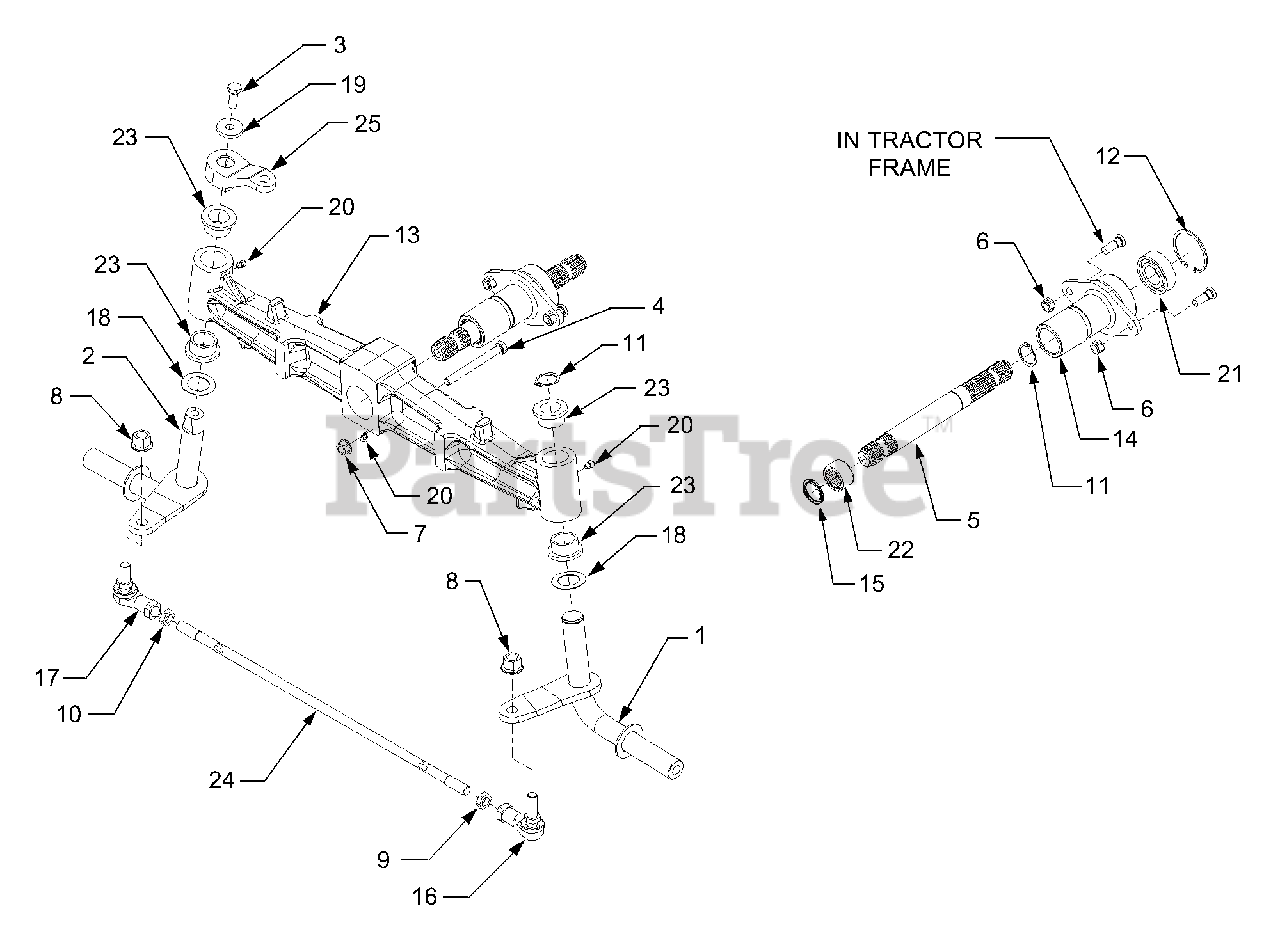

Front Axle Parts Diagram

  • Title

1

Cub Cadet 603-0426-0637

Axle, RH Steering
(Superseded to 603-0426)

$

$

Not available

2

Cub Cadet 603-0427-0637

Axle, LH Steering
(Superseded to 603-0427)

$

$

Not available

3

Cub Cadet 710-1039

Screw, Hex Cap 3/8-24 x 1.0 GR8

$4.49

$

In Stock, Qty 5

0

4

Cub Cadet 710-3085

Screw, Hex Cap 3/8-16 x 3.5 GR5

$4.49

$

In Stock, Qty 7

0

5

Cub Cadet 711-1141

Shaft, Splined

$

$

Not available

6

Cub Cadet 712-0355

Nut, Hex Center Lock, 3/8-24
(Superseded to 912-0355)

$5.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3103

Nut, Hex Flange Lock, M12 x 1.75

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet 712-3104

Nut, Hex - RH, M12 x 1.75

$6.99

$

In Stock, only 2 left!

0

10

Cub Cadet 712-3105

Nut, Hex - LH, M12 x 1.75

$9.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 716-0102

Snap Ring, 1.0 Dia. Shaft

$5.49

$

In Stock, Qty 20+

0

12

Cub Cadet 716-0188

Retaining Ring, Internal, 2.0

$

$

Not available

13

Cub Cadet 719-3119A

Pivot Axle

$

$

Not available

14

Cub Cadet 719-3120

Axle Carrier

$

$

Not available

15

Cub Cadet 721-0462

Seal, Grease, 1.31 x 1.0

$10.99

$

In Stock, Qty 5

0

16

Cub Cadet 723-0462

Ball Joint, 12MM x 1.75 RH

$69.99

$

In Stock, Qty 11

0

17

Cub Cadet 723-0463

Ball Joint, 12MM x 1.75 LH

$69.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0163

Washer, Flat, 1.03 x 1.62 x .030

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0247

Washer, Flat, .406 x 1.25

$9.49

$

In Stock, Qty 16

0

20

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 741-0131

Bearing, Ball
(Superseded to 941-0131)

$53.99

$

In Stock, Qty 6

0

22

Cub Cadet 741-0363

Bearing, Needle
(Superseded to 941-0363)

$25.99

$

In Stock, Qty 10

0

23

Cub Cadet 741-0558

Bearing, Flange
(Superseded to 741-04488)

$9.49

$

In Stock, only 4 left!

0

24

Cub Cadet 747-3348A

Tie Rod, M12 x1.75 RH & LH

$115.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 748-3074

Steering Arm

$48.99

$

In Stock, Qty 6

0
