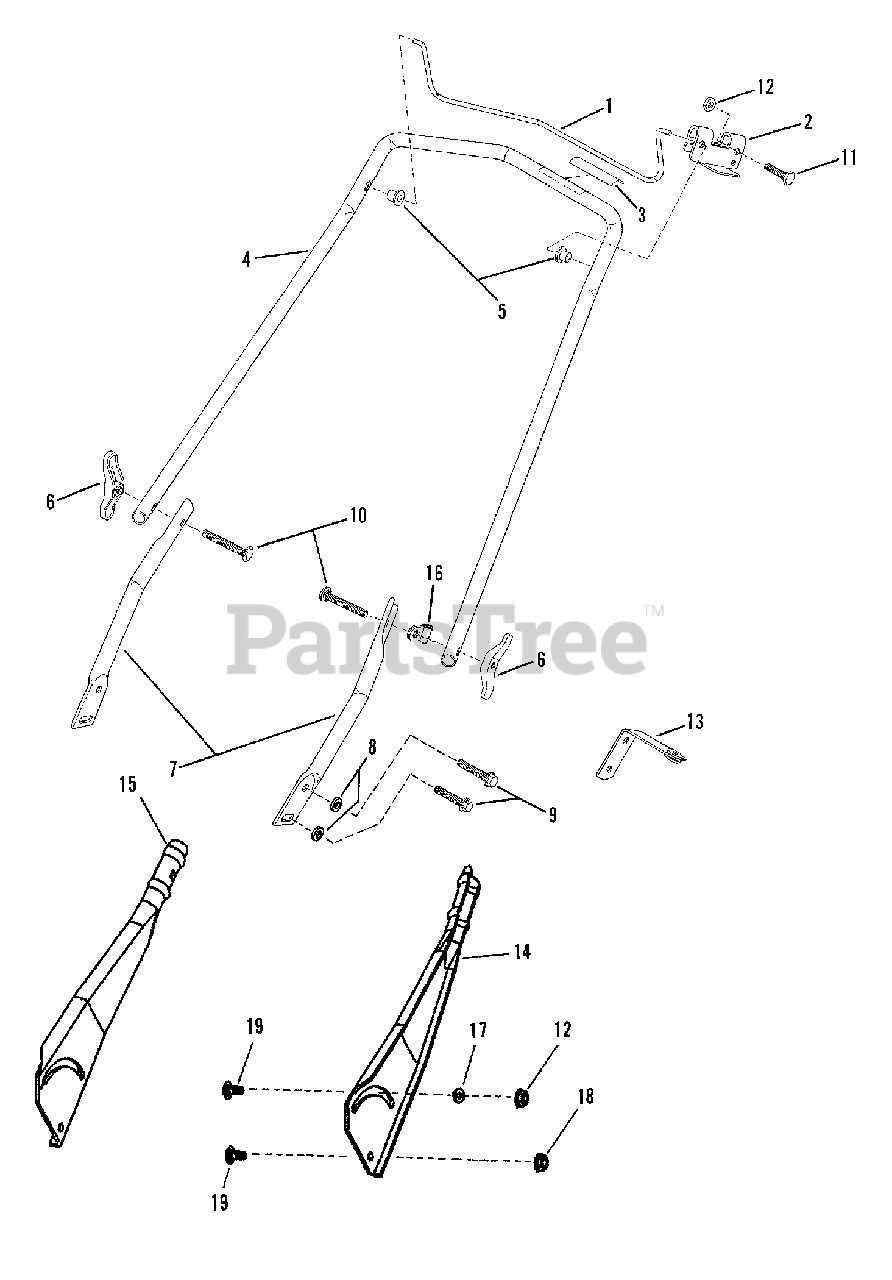

3203E (80010) - Snapper 20" Snow Thrower, 3hp Handles, Blade Control Parts Diagram

20" Snow Thrower, 3hp

Handles, Blade Control Parts Diagram

  • Title

1

Snapper 7019714

CONTROL, Auger
(Superseded to 7047011YP)

Note: (Series 0, 1 & 2)

$

$

Not available

1

Snapper 7017072

CONTROL, Auger
(Superseded to 7047011YP)

Note: (Series 3)

$

$

Not available

2

Snapper 7032350

CLIP
(Superseded to 7032918YP)

Note: (Series 0, 1 & 2)

$46.99

$

Usually ships in 2-12 days

0

2

Snapper 7032918

CLIP, 9
(Superseded to 7032918YP)

Note: (Series 3)

$46.99

$

Usually ships in 2-12 days

0

3

Snapper 7014653

DECAL, Auger Control

Note: (Series 0, 1 & 2)

$

$

Not available

3

Snapper 7016579

DECAL, Auger Control

Note: (Series 3)

$

$

Currently unavailable

4

Snapper 7036097

HANDLE, Upper (white)

Note: (Series 0)

$

$

Not available

4

Snapper 7036164

NLA, USE 7032917 HANDLE, Upper

Note: was white & used on Series 1 & 2

$

$

Currently unavailable

4

Snapper 7032917

HANDLE, Upper (black)

Note: (Series 1, 2, & 3)

$

$

Not available

5

Snapper 7014343

BUSHING
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7035744

T-KNOB (Plastic)
(Superseded to 7105085YP)

Note: Was 16324 (Series 3)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7038105

HANDLE, Lower

Note: (Series 0)

$

$

Not available

8

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7090896

SCREW, 1/4-20 x 1-3/8" Hex Washer Self-Tap
(Superseded to 7090896YP)

$3.49

$

In Stock, only 3 left!

0

10

Snapper 7091083

BOLT, 1/4-20 x 2" Short Square Neck Carriage, Grade 5

Note: (Series 3)

$1.99

$

Usually ships in 2-12 days

0

11

Snapper 7090071

SCREW, 1/4-20 x 1/2" Hex Head cap, Grade 5
(Superseded to 703818)

$3.49

$

In Stock, only 1 left!

0

12

Snapper 7090372

NUT, 1/4-20 Hex Center Lock, Grade B or 5
(Superseded to 703954)

$

$

Not available

13

Snapper 7051560

ASSEMBLY, Bracket & Bushing
(Superseded to 7051560YP)

Note: (Series 1, 2 & 3)

$23.99

$

Usually ships in 2-12 days

0

14

Snapper 7028064

HANDLE, Lower, L.H.

Note: (Series 2 & 3)

$

$

Not available

15

Snapper 7028065

HANDLE, Lower R.H.
(Superseded to 7042724YP)

Note: (Series 2 & 3)

$20.99

$

Usually ships in 2-12 days

0

16

Snapper 7015119

CLAMP, Cable
(Superseded to 7023813SM)

Note: (Series 1, 2 & 3)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7012485

RETAINER, 1/4" Bolt
(Superseded to 7012485YP)

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0

19

Snapper 7090947

BOLT, 1/4-20 x 1-3/8" Square Neck Carriage, Grade 5
(Superseded to 7090947YP)

$5.99

$

In Stock, Qty 5

0

Snapper 7060748

BAG, Hardware (not shown)

Note: (Includes 1-4915, Chute Ring Guide and 1-1138, Ignition Key)

$

$

Currently unavailable
