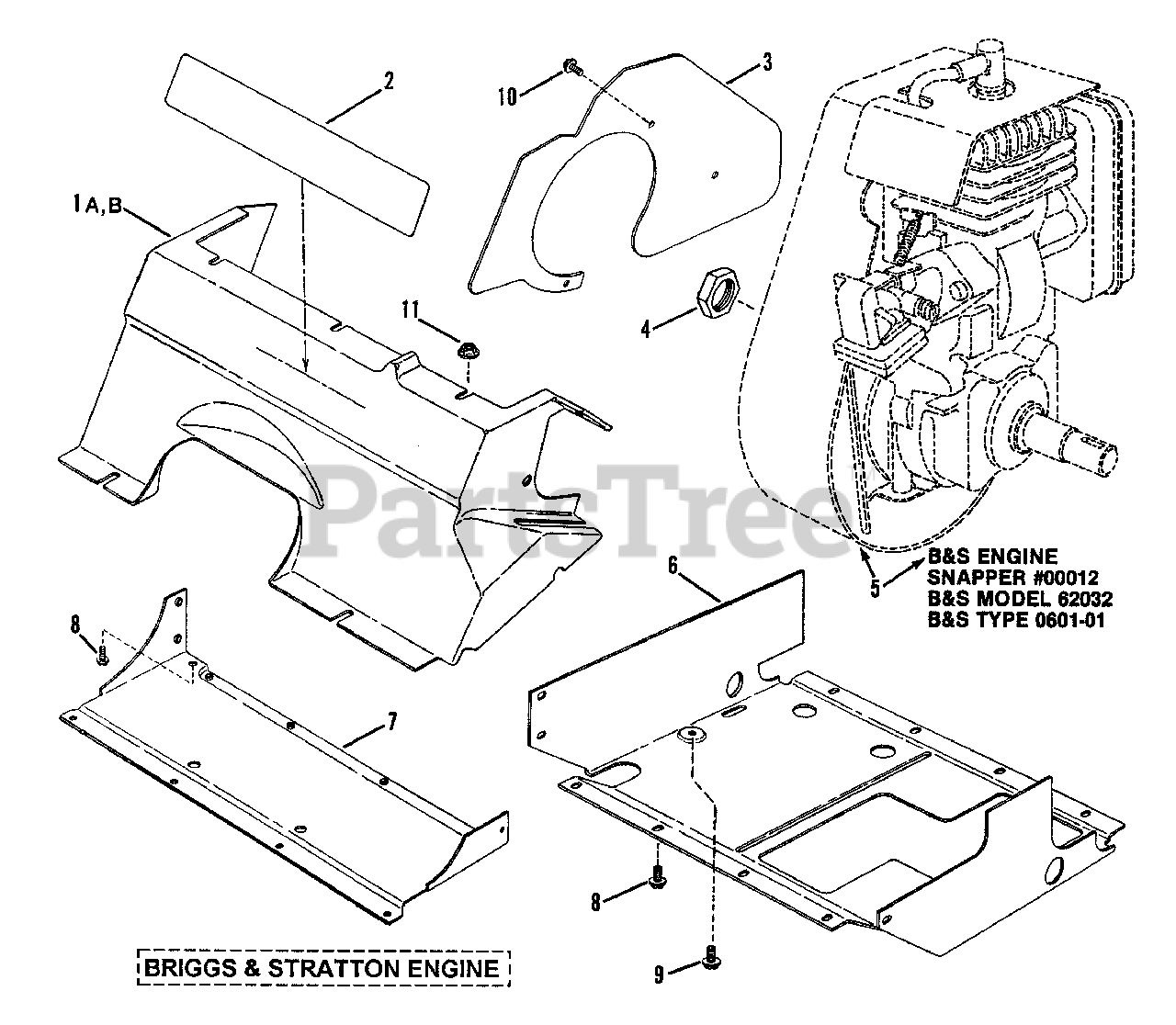

3203E (80010) - Snapper 20" Snow Thrower, 3hp Engine, Covers (Briggs & Stratton Engine) Parts Diagram

20" Snow Thrower, 3hp

Engine, Covers (Briggs & Stratton Engine) Parts Diagram

  • Title

1A

Snapper 7060755

KIT, Front Cover

Note: (Includes item 1B) (Series 0)

$

$

Not available

1B

Snapper 7016001

COVER, Top

Note: (Series 1 & 2) (Replaces 1-9988); See "Engines, Covers (Tecumseh Engine)" illustration and parts list.

$

$

Currently unavailable

2

Snapper 7019295

DECAL, Snapper
(Superseded to 7019295YP)

Note: Was 18593 (Used on item 1A)

$13.99

$

In Stock, only 4 left!

0

3

Snapper 7019737

PARTITION

$

$

Currently unavailable

4

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90771

$4.49

$

In Stock, Qty 5

0

5

* ENGINE, Briggs & Stratton 2 Cycle (B&S 62032-0601-01)

$

$

Not available

6

Snapper 7035040

COVER, Bottom

$

$

Not available

7

Snapper 7036098

BRACE
(Superseded to 7028066YP)

$62.99

$

Usually ships in 2-12 days

0

8

Snapper 7090822

SCREW, #10-24 x 1/4" Hex Washer Self-Tap

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7090856

SCREW, #10-24 x 1/2" Hex Washer Self-Tap

$

$

Not available

10

Snapper 7091581

SCREW, #8-18 x 1/2" Hex Head Sheet Metal
(Superseded to 7091581YP)

Note: Was 90525

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7090623

NUT, #10-24 Hex Flange Lock
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

Snapper 7060755

KIT, Front Cover

Note: Was 19988

$

$

Not available
