3202S (86480) - Snapper 20" Snow Thrower, 3hp Discharge Parts Parts Diagram

20" Snow Thrower, 3hp

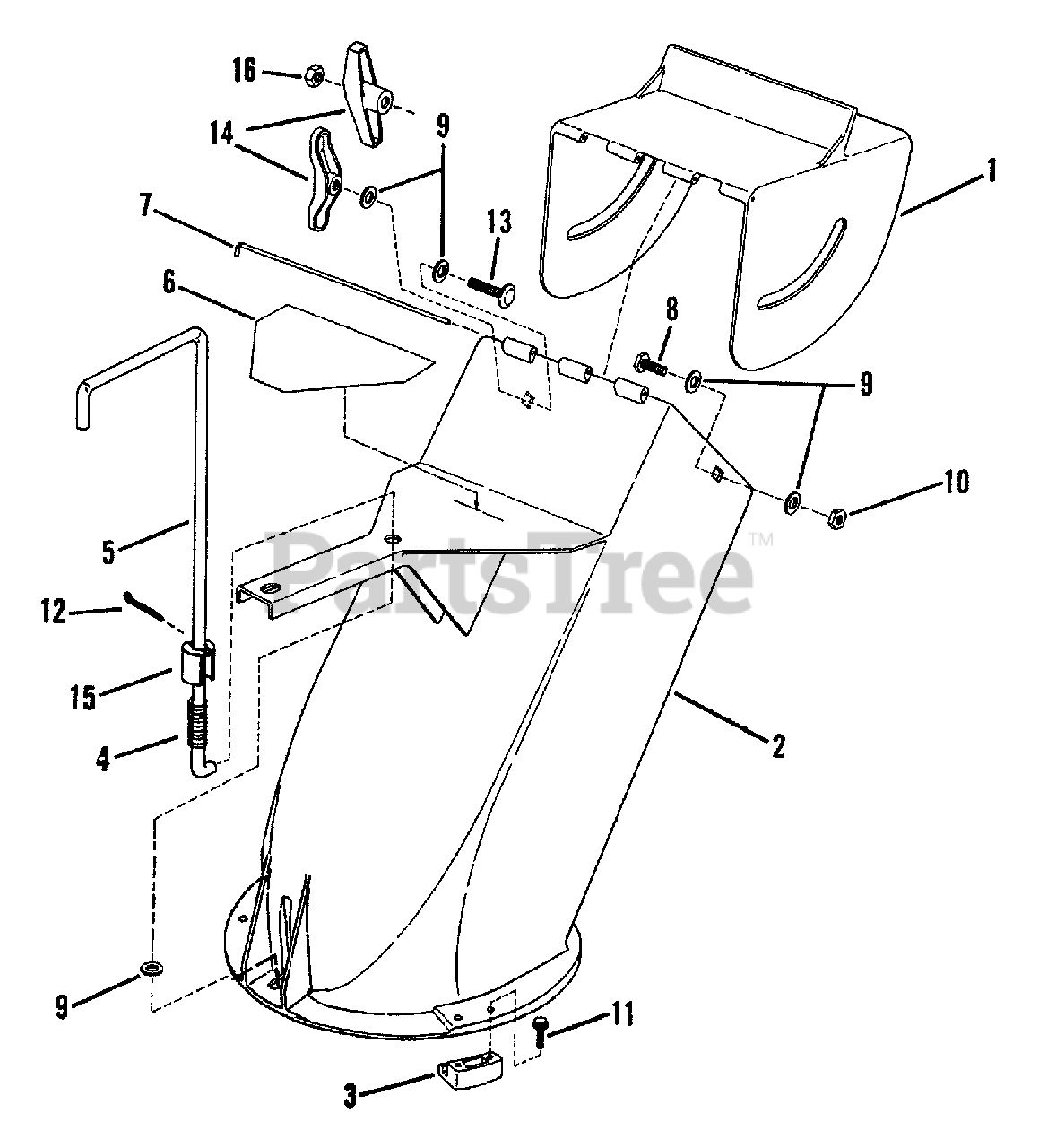

Discharge Parts Parts Diagram

  • Title

1

Snapper 7028344

DEFLECTOR, Discharge
(Superseded to 7028344YP)

Note: Was 19745 (Included in Chute Assembly P/N 5-3488)

$12.99

$

Usually ships in 2-12 days

0

2

Snapper 7053488

ASSEMBLY, Chute & Discharge Decal
(Superseded to 7053488YP)

Note: Was 52002, Included in Chute Assembly P/N 5-3488

$

$

Not available

3

Snapper 7014915

RETAINER, Chute to Housing
(Superseded to 7014915YP)

$6.49

$

In Stock, Qty 6

0

4

Snapper 7012093

SPRING, Release Rod
(Superseded to 7012093YP)

Note: (Series 1 & 2)

$4.49

$

In Stock, only 4 left!

0

Snapper 7016330

SPRING, Release Rod

Note: (Series 3); Used on Series 3 Models only; Black Zinc Coated

$1.99

$

In Stock, Qty 8

0

5

Snapper 7018686

ROD, Release

Note: (Series 1 & 2)

$

$

Not available

Snapper 7016329

ROD, Release

Note: (Series 3); Used on Series 3 Models only; Black Zinc Coated

$8.99

$

Usually ships in 2-12 days

0

6

Snapper 7014929

DECAL, Chute Danger
(Superseded to 7014929YP)

Note: Included in Chute Assembly P/N 5-3488

$6.49

$

In Stock, only 1 left!

0

7

Snapper 7014916

PIN, Wire Hinge

Note: Included in Chute Assembly P/N 5-3488

$

$

Not available

8

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap, Grade 5
(Superseded to 703301)

Note: (Series 1 & 2)

$3.99

$

In Stock, only 2 left!

0

Snapper 7091021

SCREW, 5/16-24 x 1" Hex Head Cap, Grade 5
(Superseded to 703336)

Note: (Series 3); Used on Series 3 Models only; Black Zinc Coated

$4.49

$

In Stock, Qty 5

0

9

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

Note: (Series 1 & 2)

$4.49

$

In Stock, only 1 left!

0

Snapper 7091076

WASHER, 5/16 Flat
(Superseded to 703350)

Note: (Series 3); Used on Series 3 Models only; Black Zinc Coated

$4.49

$

In Stock, only 1 left!

0

10

Snapper 7090222

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

Note: (Series 1 & 2)

$3.49

$

In Stock, Qty 20+

0

Snapper 7091606

NUT, 5/16-24 Hex Center Lock, Grade B
(Superseded to 703896)

Note: Was 91074 (Series 3); Used on Series 3 Models only; Black Zinc Coated

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Face Self-Tap
(Superseded to 7091075SM)

Note: Was 90363 (Series 1 & 2)

$4.49

$

In Stock, Qty 5

0

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Face Self-Tap
(Superseded to 7091075SM)

Note: (Series 3); Used on Series 3 Models only; Black Zinc Coated

$4.49

$

In Stock, Qty 5

0

12

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 91082 (Used on Series 3 Models only; Black Zinc Coated)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7091303

BOLT, 5/16-18 x 1" Square Neck Carriage, Grade 5
(Superseded to 703800)

Note: Was 90383 (Series 1 & 2)

$3.99

$

In Stock, Qty 7

0

Snapper 7091303

BOLT, 5/16-18 x 1" Square neck Carriage, Grade 5
(Superseded to 703800)

Note: Was 91072 (Series 3); Used on Series 3 Models only; Black Zinc Coated

$3.99

$

In Stock, Qty 7

0

14

Snapper 7014468

NUT, 5/16-18 Wing
(Superseded to 703065)

Note: (Series 1 & 2)

$6.99

$

In Stock, Qty 20+

0

Snapper 7035744

T-KNOB (Plastic)
(Superseded to 7105085YP)

Note: Was 16324 (Series 3); Used on Series 3 Models only; Black Zinc Coated

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7032765

STOP, Handle
(Superseded to 7032919YP)

Note: (Series 2)

$35.99

$

Usually ships in 2-12 days

0

Snapper 7032919

STOP, Handle
(Superseded to 7032919YP)

Note: (Series 3); Used on Series 3 Models only; Black Zinc Coated

$35.99

$

Usually ships in 2-12 days

0

16

Snapper 7091511

NUT, 5/16-18 Hex, Grade 5
(Superseded to 7091511SM)

Note: Was 91069 (Series 3)

$3.49

$

In Stock, Qty 20+

0

Snapper 7053488

ASSEMBLY, Chute
(Superseded to 7053488YP)

Note: (Includes items 1, 2, 6, 7)

$

$

Not available
