3202S (86480) - Snapper 20" Snow Thrower, 3hp Control Panel, Lower Handle Parts Diagram

20" Snow Thrower, 3hp

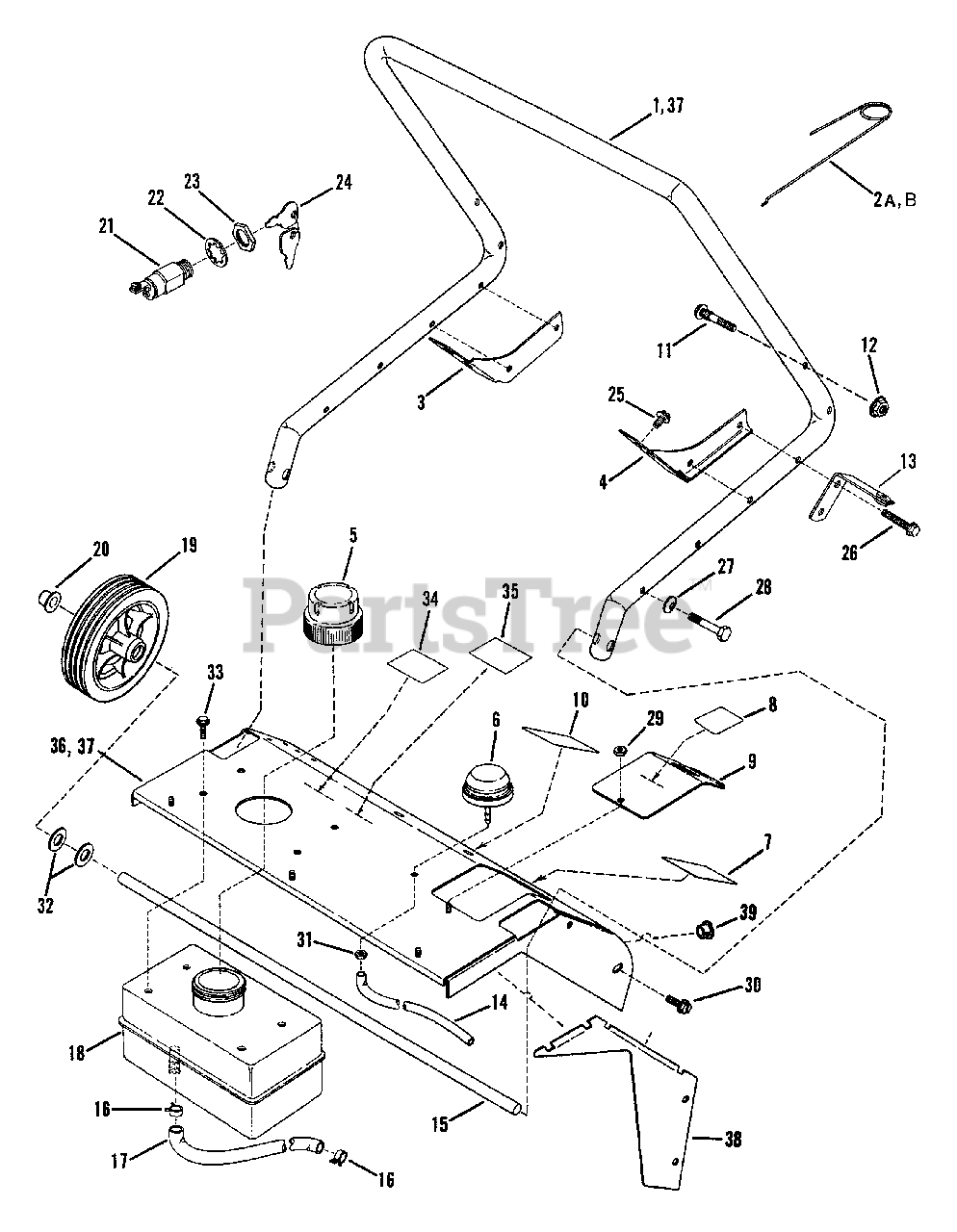

Control Panel, Lower Handle Parts Diagram

  • Title

1

Snapper 7036165

HANDLE, Lower
(Superseded to 7036165YP)

Note: (Replaces 3-6094) (Units Prior to 1986; use item 37)

$68.99

$

Usually ships in 2-12 days

0

2A

Snapper 7014647

CONTROL, Choke (Briggs)

$1.99

$

In Stock, only 1 left!

0

2B

Snapper 7046473

CONTROL, Choke (Tecumseh)
(Superseded to 7046473YP)

Note: Was 14918 or 14648

$22.99

$

Usually ships in 2-12 days

0

3

Snapper 7038109

BRACE, Handle (Right Hand)
(Superseded to 7038109YP)

$23.99

$

Usually ships in 2-12 days

0

4

Snapper 7038110

BRACE, Handle (Left Hand)
(Superseded to 7038110YP)

$23.99

$

Usually ships in 2-12 days

0

5

Snapper 7014636

CAP, Fuel Tank
(Superseded to 7014636YP)

$7.49

$

Usually ships in 2-12 days

0

6

Snapper 7014638

PRIMER, Fuel (Tecumseh)
(Superseded to 7014638SM)

$

$

Not available

Snapper 7018656

PRIMER, Fuel (Briggs)

$11.99

$

Usually ships in 2-12 days

0

7

Snapper 7014635

DECAL, Choke

$

$

Not available

8

Snapper 7014640

DECAL, Spark Plug Access

$

$

Not available

9

Snapper 7032353

COVER, Access Hole

$

$

Not available

10

Snapper 7014641

DECAL, Controls

$2.99

$

In Stock, only 1 left!

0

11

Snapper 7090947

BOLT, 1/4-20 x 1-3/8" Square Neck Carriage, Grade 5
(Superseded to 7090947YP)

$5.99

$

In Stock, Qty 5

0

12

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 10

0

13

Snapper 7051560

ASSEMBLY, Bracket & Bushing
(Superseded to 7051560YP)

$23.99

$

Usually ships in 2-12 days

0

14

Snapper 7014639

HOSE, Primer
(Superseded to 7014639SM)

$7.99

$

Usually ships in 2-12 days

0

15

Snapper 7032366

AXLE
(Superseded to 7032366YP)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7032365

LINE, Fuel
(Superseded to 7032365YP)

$4.49

$

In Stock, only 1 left!

0

18

Snapper 7019736

TANK, Fuel

$

$

Not available

19

Snapper 7018640

WHEEL

$

$

Not available

20

Snapper 7014667

NUT, 3/8" Push
(Superseded to 7014667YP)

$3.49

$

In Stock, only 2 left!

0

21

Snapper 7011853

SWITCH, Ignition
(Superseded to 7011853YP)

Note: Was 15211 (Includes items 22 & 23)

$27.99

$

In Stock, only 3 left!

0

22

Snapper 7091546

WASHER, 5/8" Internal Tooth Lock
(Superseded to 1960547SM)

Note: Was 90880

$4.49

$

In Stock, only 4 left!

0

23

Snapper 7012685

NUT, 5/8-32 Hex (Special)
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 7011138

KEY, Ignition
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 7

0

25

Snapper 7090822

SCREW, #10-32 x 1/4" Hex Washer Face Self-Tap

Note: (Series 0, 1 & 2)

$4.49

$

In Stock, Qty 20+

0

Snapper 7090981

SCREW, #10-32 x 1/4" Hex Washer Face Self-Tap
(Superseded to 704061)

Note: Was 91080 (Series 3); Used on Series 3 Models only; Black Zinc Coated

$3.99

$

In Stock, Qty 16

0

26

Snapper 7090896

SCREW, 1/4-20 x 3/8" Hex Washer Face Self-Tap
(Superseded to 7090896YP)

$3.49

$

In Stock, only 3 left!

0

27

Snapper 7014645

WASHER, 1/4" Curved

$

$

Not available

28

Snapper 7090825

BOLT, 114-20 x 1-1/4" Hex Head, Grade 5
(Superseded to 7090825YP)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 7090623

NUT, #10-24 Hex Flange Lock
(Superseded to 703917)

Note: (Series 0, 1 & 2)

$3.49

$

In Stock, Qty 20+

0

Snapper 7091079

NUT, #10-24 Hex Flange Lock
(Superseded to 703917)

Note: (Series 3); Used on Series 3 Models only; Black Zinc Coated

$3.49

$

In Stock, Qty 20+

0

30

Snapper 7090856

SCREW, Drill, #10-24 x 1/2" Hex Washer Face

$

$

Not available

31

Snapper 7090372

NUT, 1/4-20 Hex Center Lock, Grade B or 5
(Superseded to 703954)

$

$

Not available

32

Snapper 7090122

WASHER, 3/8 SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

33

Snapper 90855

SCREW, 1/4-15 x 3/4" Hex Washer Face, Self-Tap (Plastic)

Note: (Ser. 0, 1 & 2)

$

$

Currently unavailable

Snapper 7091081

SCREW, 1/4-15X3/4, Self-Tapping, BZ
(Superseded to 7091081SM)

Note: (Series 3); Used on Series 3 Models only; Black Zinc Coated

$4.49

$

In Stock, Qty 12

0

34

Snapper 7018652

DECAL, Fuel Mix Chart (Tecumseh)

$1.99

$

In Stock, only 1 left!

0

Snapper 7014764

DECAL, Fuel Mix Chart (Briggs)

$

$

Currently unavailable

35

Snapper 7018653

DECAL, Warning, Fuel Mix (Tecumseh)

$

$

Not available

36

Snapper 7049963

WELDMENT, Handle/Panel

Note: (3201 Series) (For Units Prior to 1986, Use Item 37)

$

$

Currently unavailable

37

Snapper 7051613

ASSEMBLY, Lower Handle/Panel

Note: (Includes Items 1, 11 & 36)

$

$

Currently unavailable

38

Snapper 7032943

BAFFLE, L.H.
(Superseded to 7032943YP)

Note: (Series 3)

$22.99

$

Usually ships in 2-12 days

0

39

Snapper 7016401

PLUG, 1/2" Panel

Note: (Series 3) (or 1-5158)

$

$

Currently unavailable

Snapper 7061011

KIT, Snow Infiltration
(Superseded to 7061011YP)

$39.99

$

Usually ships in 2-12 days

0

Snapper 7036165

HANDLE, LOWER
(Superseded to 7036165YP)

Note: Was 36094

$68.99

$

Usually ships in 2-12 days

0

Snapper 7014648

USE 7014648YP: (S) CONTROL CHOKE TEC B

$5.99

$

In Stock, only 1 left!

0

Snapper 7011853

Manual Start Switch
(Superseded to 7011853YP)

$27.99

$

In Stock, only 3 left!

0

Snapper 15158

$

$

Currently unavailable
