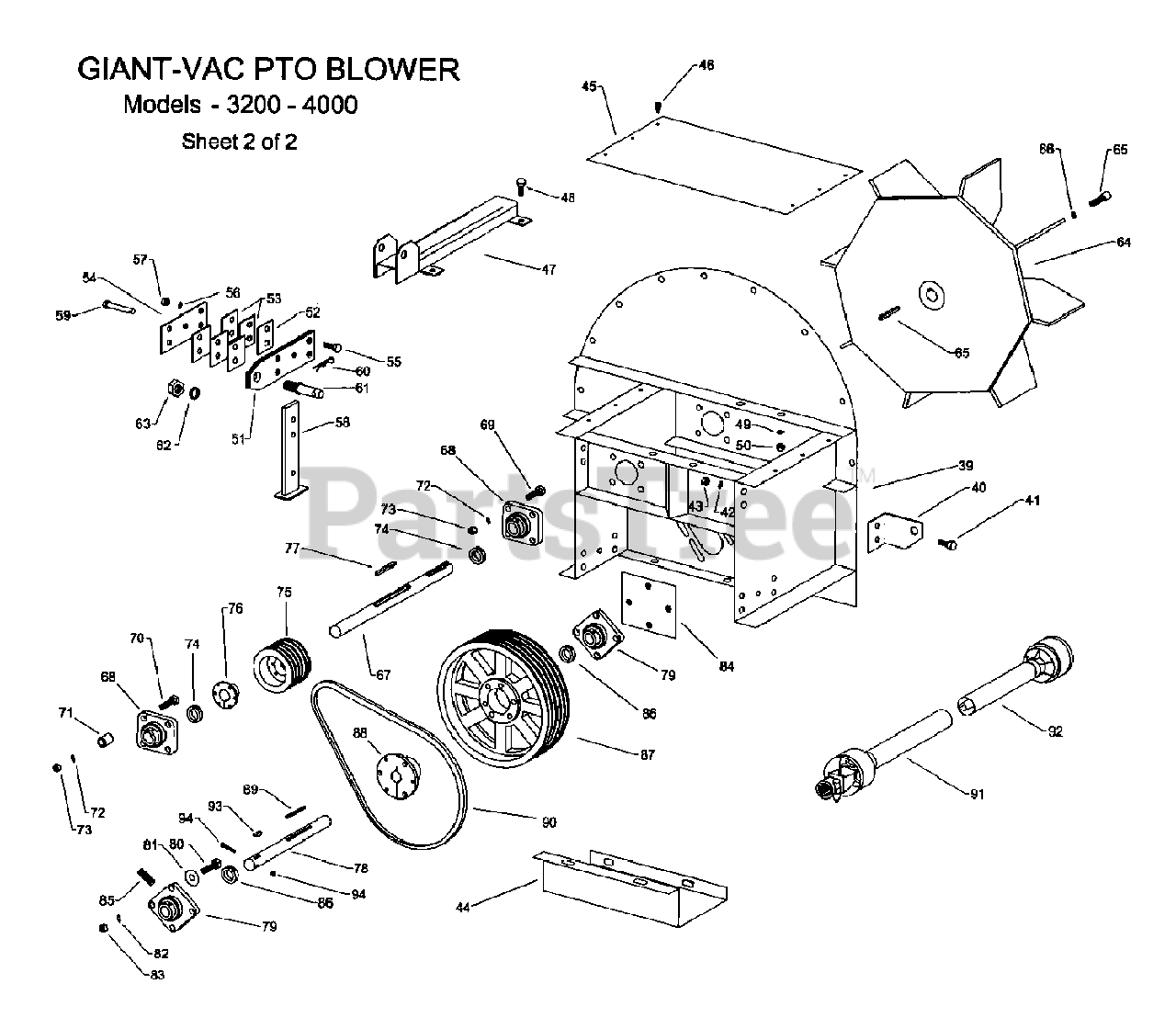

3200PT (3071023) - Giant-Vac PTO Tow-Behind Blower Frame Group Parts Diagram

PTO Tow-Behind Blower

Frame Group Parts Diagram

  • Title

39

Giant-Vac 3010110

Blower back & shaft frame

$

$

Currently unavailable

40

Giant-Vac 3027178

Control rod guide bracket

$

$

Currently unavailable

41

Giant-Vac 3031084

1/2 x 1-1/4 hex bolt

$

$

Not available

42

Giant-Vac 3031078

1/2 lockwasher

$

$

Currently unavailable

43

Giant-Vac 3031022

1/2 hex nut

$

$

Currently unavailable

44

Giant-Vac 3027127

Shaft frame bottom cover

$

$

Currently unavailable

44a

Giant-Vac 3031368

½ x 1 bolt, lockwasher & nut (not shown)

$

$

Currently unavailable

44b

Giant-Vac 3031043

½ flatwasher (not shown)
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

45

Giant-Vac 3037101

Shaft frame top cover plate

$

$

Currently unavailable

46

Giant-Vac 3031562

#12 x 3/4 self tapping screw
(Superseded to 1723636SM)

$2.99

$

In Stock, only 2 left!

0

47

Giant-Vac 3038015

Top hitch point bracket

$

$

Currently unavailable

48

Giant-Vac 3031084

1/2 x 1-1/4 hex bolt

$

$

Not available

49

Giant-Vac 3031078

1/2 lockwasher

$

$

Currently unavailable

50

Giant-Vac 3031022

1/2 hex nut

$

$

Currently unavailable

51

Giant-Vac 3038016

Hitch lower point plate

$

$

Not available

52

Giant-Vac 3031676

Jack stand spacer - 1/8

$

$

Not available

53

Giant-Vac 3031470

Jack stand spacer - 1/4

$

$

Currently unavailable

54

Giant-Vac 3038018

Jack stand side support plate

$

$

Currently unavailable

55

Giant-Vac 3031467

1/2 x 3-1/2 hex bolt

$

$

Currently unavailable

56

Giant-Vac 3031078

1/2 lockwasher

$

$

Currently unavailable

57

Giant-Vac 3031022

1/2 hex nut

$

$

Currently unavailable

58

Giant-Vac 3038017

Jack stand

$

$

Not available

59

Giant-Vac 3031468

Jack stand pin

$

$

Currently unavailable

60

Giant-Vac 3031469

Jack stand hair clip

$

$

Currently unavailable

61

Giant-Vac 3031463

Hitch pin

$

$

Currently unavailable

62

3031465

7/8 hitch pin lockwasher

$

$

Not available

63

Giant-Vac 3031464

7/8 hitch pin nut

$

$

Currently unavailable

64

Giant-Vac 3021576

Impeller, 33"

Note: 3200 Model

$

$

Currently unavailable

64

Giant-Vac 3021542

Impeller, 34"

Note: 4000 Model

$

$

Not available

65

3031456

Impeller bolt & key (5/8 x 3)

$

$

Not available

66

Giant-Vac 3031457

5/8 lockwasher

$

$

Currently unavailable

67

Giant-Vac 3036162

Impeller shaft

$

$

Not available

68

Giant-Vac 3036163

Impeller shaft bearing

$

$

Currently unavailable

69

Giant-Vac 3031459

1/2 x 1-3/4 hex bolt (impeller shaft inner bearing)

$

$

Currently unavailable

70

Giant-Vac 3031461

1/2 x 2-1/2 hex bolt (impeller shaft outer bearing)
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

71

Giant-Vac 3031460

Impeller shaft outer bearing spacer

$

$

Currently unavailable

72

Giant-Vac 3031078

1/2 lockwasher

$

$

Currently unavailable

73

Giant-Vac 3031022

1/2 hex nut

$

$

Currently unavailable

74

Giant-Vac 3031458

Impeller shaft collar

$

$

Currently unavailable

75

Giant-Vac 3036164

Impeller shaft pulley (4V)

Note: 3200 Model

$

$

Not available

75

Giant-Vac 3036234

Impeller shaft pulley (5V)

Note: 4000 Model

$

$

Currently unavailable

76

Giant-Vac 3036232

Impeller shaft pulley hub assembly (w/hardware)

$

$

Not available

77

Giant-Vac 3031677

Key - 3/8 x 3-1/2

$

$

Not available

78

Giant-Vac 3036166

Lower input shaft

$

$

Not available

79

Giant-Vac 3036167

Lower input shaft bearing

$

$

Currently unavailable

80

Giant-Vac 3031147

1/2 x 1-3/4 hex bolt

$

$

Currently unavailable

81

Giant-Vac 3031043

1/2 flatwasher
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

82

Giant-Vac 3031078

1/2 lockwasher

$

$

Currently unavailable

83

Giant-Vac 3031022

1/2 hex nut

$

$

Currently unavailable

84

Giant-Vac 3037100

Lower input shaft inner bearing bolt plate

$

$

Currently unavailable

85

Giant-Vac 3031453

1/2 x 4 Allen head pusher bolt

$

$

Not available

86

Giant-Vac 3031462

Lower input shaft locking collar

$

$

Currently unavailable

87

Giant-Vac 3036168

Lower input shaft pulley (4V)

$

$

Currently unavailable

87

Giant-Vac 3036235

Lower input shaft pulley (5V)

$

$

Currently unavailable

88

Giant-Vac 3036230

Lower input shaft pulley hub ass’y (w/hardware)

$

$

Not available

89

Giant-Vac 3031678

Key - 1/4 x 2-1/4

$

$

Not available

90

Giant-Vac 3036165

Drive belts (4 to a set)

Note: 3200 Model

$

$

Currently unavailable

90

Giant-Vac 3036236

Drive belts (5 to a set)

Note: 4000 Model

$

$

Not available

91

Giant-Vac 3036169

Drive shaft - tractor end*

$

$

Currently unavailable

92

Giant-Vac 3036170

Drive shaft - unit end*

$

$

Currently unavailable

Giant-Vac 3036171

* Drive shaft - complete assembly (Items 91 & 92)

$

$

Currently unavailable

93

Giant-Vac 3031449

5/16 drive shaft key

$

$

Currently unavailable

94

3031448

¼ x 2-1/2 bolt & nut

$

$

Not available
