3200 (85813) - Snapper 20" Snow Thrower, 3hp Discharge Parts Parts Diagram

20" Snow Thrower, 3hp

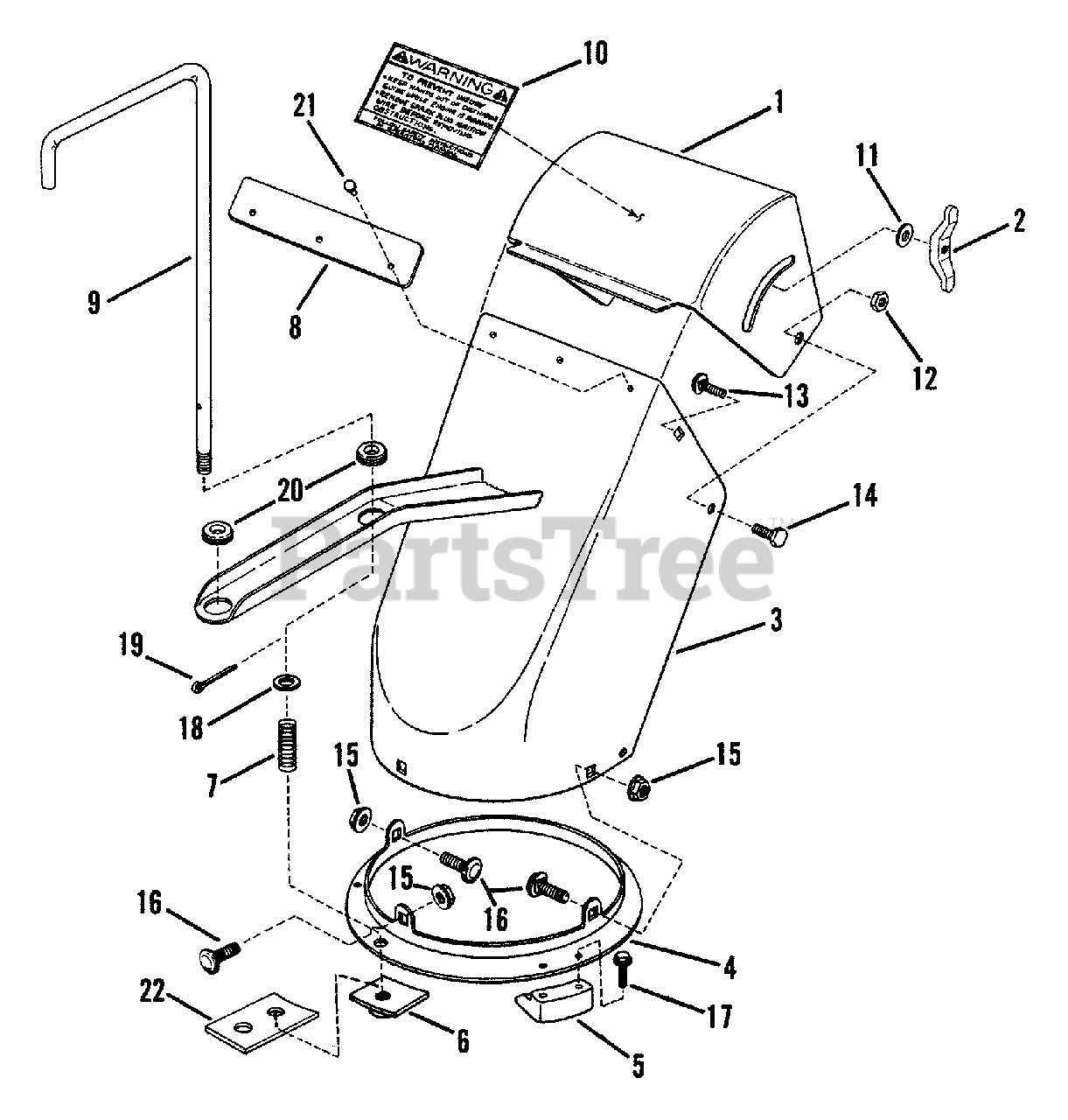

Discharge Parts Parts Diagram

  • Title

1

Snapper 7053488

DEFLECTOR, Discharge
(Superseded to 7053488YP)

Note: Was 37966

$

$

Not available

2

Snapper 7015693

WING-NUT, 1/4-20
(Superseded to 014X79MA)

Note: Was 14207

$4.99

$

Usually ships in 2-12 days

0

3

Snapper 7053488

CHUTE, Discharge
(Superseded to 7053488YP)

Note: Was 47842

$

$

Not available

4

Snapper 7036096

RING, Chute
(Superseded to 7036096YP)

$43.99

$

Usually ships in 2-12 days

0

5

Snapper 7011938

RETAINER (Chute Ring to Housing)
(Superseded to 7011938SM)

$

$

Not available

6

Snapper 7051445

BRAKE SHOE
(Superseded to 7051445YP)

$43.99

$

Usually ships in 2-12 days

0

7

Snapper 7012093

SPRING
(Superseded to 7012093YP)

$4.49

$

In Stock, only 4 left!

0

8

Snapper 7014316

WIPER

$

$

Currently unavailable

9

Snapper 7018636

ROD, Release
(Superseded to 7018636YP)

$14.99

$

Usually ships in 2-12 days

0

10

Snapper 7013929

DECAL, Deflector Warning

$

$

Not available

11

Snapper 7091294

WASHER, 1/4" SAE
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7091575

NUT, 5/16-5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 19

0

13

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 7091530SM)

Note: Was 90074

$3.99

$

In Stock, only 3 left!

0

14

Snapper 7090534

SCREW, 5/16-18 x 1/2" Hex Head Cap, Grade 2
(Superseded to 704317)

Note: Was 90203

$4.49

$

Usually ships in 2-12 days

0

15

Snapper 7091601

NUT, 5/16-18 Hex Flange
(Superseded to 703409)

Note: Was 12625

$5.49

$

In Stock, Qty 20+

0

16

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 703798)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Face
(Superseded to 7091075SM)

Note: Was 90363

$4.49

$

In Stock, Qty 5

0

18

Snapper 7090188

WASHER, 5/16 SAE Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

19

Snapper 7090360

COTTER PIN, 1/16 x 3/4"

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 7014603

GROMMET, Rubber
(Superseded to 7014603YP)

$5.49

$

Usually ships in 2-12 days

0

21

Snapper 7090814

RIVET

$

$

Currently unavailable

22

Snapper 7014773

PAD, Brake
(Superseded to 7014773YP)

$4.49

$

Usually ships in 2-12 days

0
