3200/72RDCE (5901580) - Ferris 72" Rear-Discharge Mower Deck 72" Mower Deck Group - Housing, Covers, Spindles & Blades (Rear Discharge) Parts Diagram

72" Rear-Discharge Mower Deck

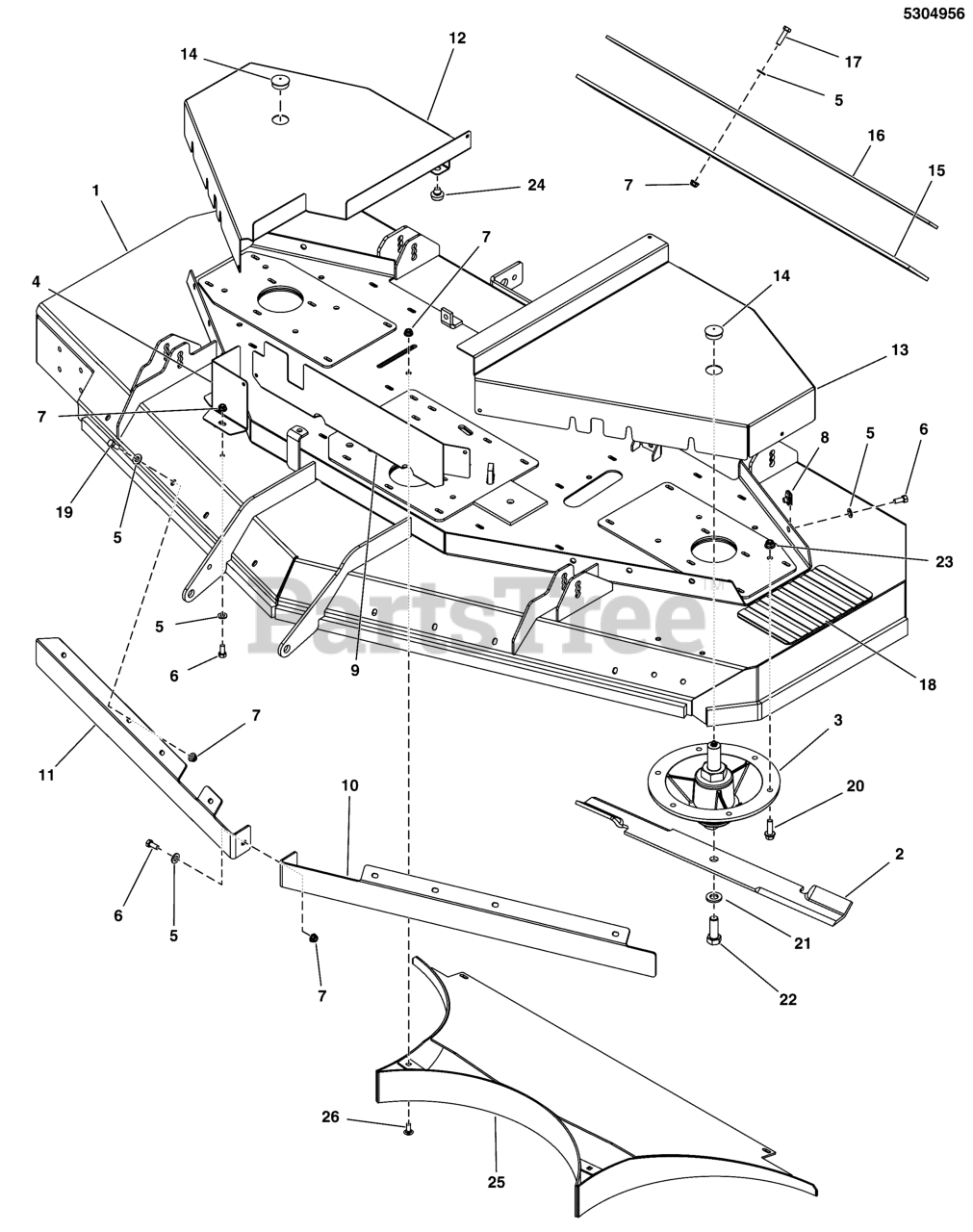

72" Mower Deck Group - Housing, Covers, Spindles & Blades (Rear Discharge) Parts Diagram

  • Title

1

Ferris 5601017

DECK SHELL W/DECALS, 3200 72RDCE (5416028B)

Note: (S/N: 2017954955 & Below)

$

$

Currently unavailable

1

Ferris 5601125

DECK SHELL W/DECALS, 3200-72RE(5417030B)

Note: (S/N: 2017954956 & Above)(Refer to Note: *)

$3248.99

$

Usually ships in 2-12 days

0

2

Ferris 5103306S

BLADE SET, MULCH, 72 DECK (SET OF 3)

$92.99

$

In Stock, only 2 left!

0

3

Ferris 84007984

SPINDLE ASSEMBLY

Note: (S/N: 2017458254 and below)

$296.99

$

In Stock, only 1 left!

0

3

Ferris 84003242

SPINDLE ASSEMBLY

Note: (S/N: 2017458255 and above)

$351.99

$

In Stock, Qty 5

0

4

Ferris 5416381B

PLATE, FRONT DECK GUARD, 72CE - RED

$

$

Currently unavailable

5

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

7

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

9

Ferris 5416301B

PLATE, FRONT DECK GUARD CE - RED

Note: (S/N: 4001202382 and below)

$

$

Currently unavailable

9

Ferris 5420733B

PLATE, FRONT GUARD, DECK-72CE - RED

Note: (S/N: 4001202383 and above)

$

$

Currently unavailable

10

Ferris 5413186B

PLATE, BLOWOUT BAFFLE IS5100Z CE, LH - RED
(Superseded to 5413186BFS)

$46.99

$

Usually ships in 2-12 days

0

11

Ferris 5413185B

PLATE, BLOWOUT BAFFLE IS5100Z CE, RH - RED
(Superseded to 5413185BFS)

$46.99

$

Usually ships in 2-12 days

0

12

Ferris 5416295B

GUARD, MOWER DECK, RH, 72 CE - RED

$

$

Currently unavailable

13

Ferris 5416296B

GUARD, CUTTER DECK, LH, 72 CE - RED

Note: (S/N: 4001202382 and below)

$

$

Currently unavailable

13

Ferris 5420732B

GUARD, DECK-LH, 72 2-BELT - RED

Note: (S/N: 4001202383 and above)

$

$

Currently unavailable

14

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, Qty 20+

0

15

Ferris 5105321

FLAP, REAR DISCHARGE, 72"

$

$

Currently unavailable

16

Ferris 5416138A

PLATE, RUBBER SUPPORT, 72RD - RED

$

$

Currently unavailable

17

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

19

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

20

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

Note: (Torque spindle mounting bolts to 30 ft-lbs (41 Nm)

$2.99

$

Usually ships in 2-12 days

0

21

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

22

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque blade mounting bolts to 120 ft-lbs (163 Nm)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

24

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

25

Ferris 5416135A

WELD, REAR BAFFLE, 72RD SHORT - RED

$198.99

$

Usually ships in 2-12 days

0

26

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0
