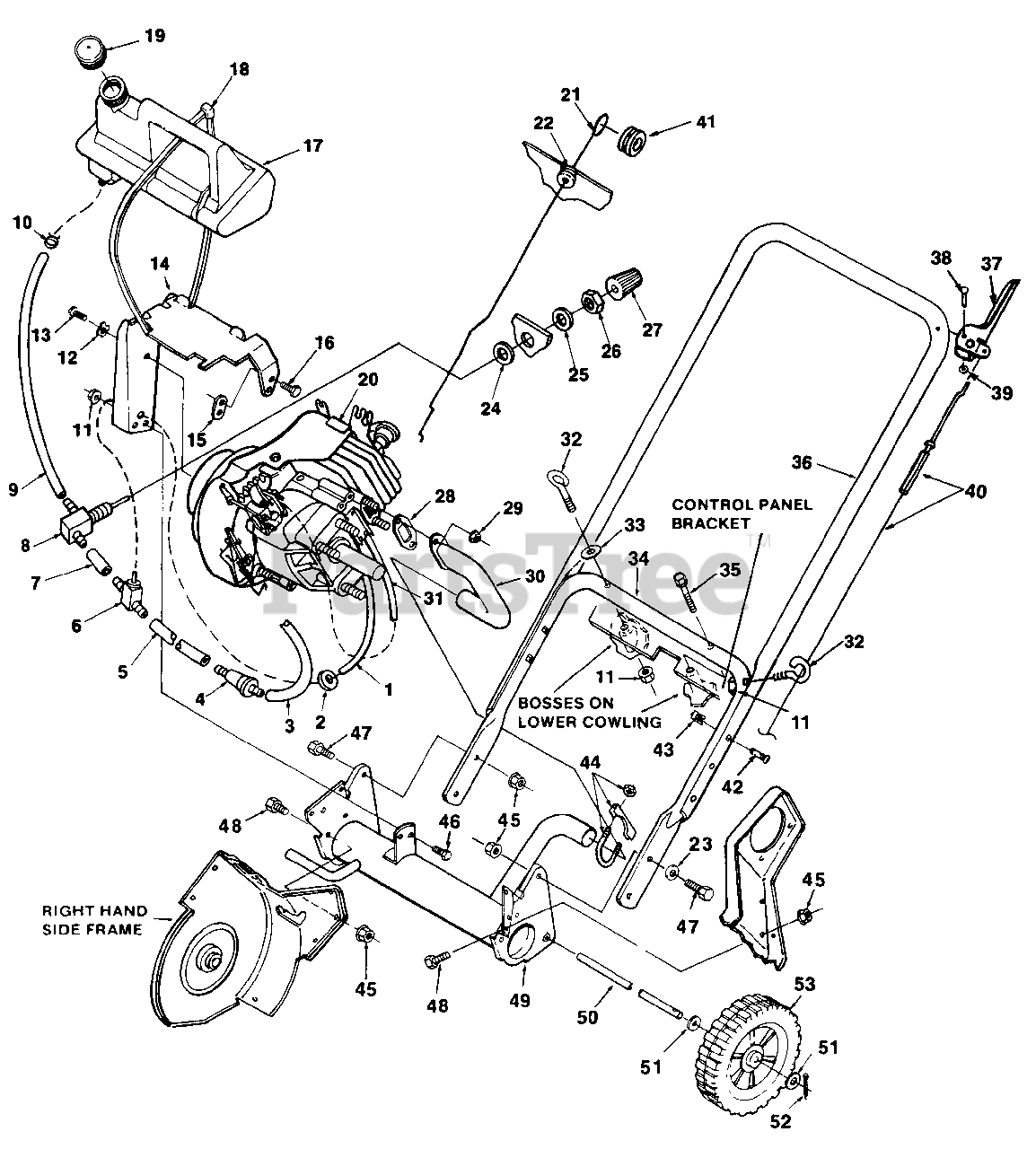

320 (UT-35011-A) - Homelite Snow Thrower Handles and Tank Parts Diagram

Snow Thrower

Handles and Tank Parts Diagram

  • Title

1

Homelite JA990803

TUBING- Rubber 17"

$

$

Currently unavailable

2

Homelite JA990722

GROMMET

$

$

Currently unavailable

3

Homelite JA990809

TUBING- Rubber (cut to 8")

$

$

Currently unavailable

4

Homelite JA992940

FILTER-Fuel

$

$

Currently unavailable

5

Homelite JA990807

TUBING- Rubber (13 1/2")

$

$

Not available

6

Homelite JA990801

FITTING- Fuel

$

$

Currently unavailable

7

Homelite JA990807

TUBING- Rubber (cut to 1 1/2")

$

$

Not available

8

Homelite JA375995

VALVE

$

$

Not available

9

Homelite JA990807

TUBING- Rubber (cut to 7 1/4")

$

$

Not available

10

Homelite JA472801

CLAMP

$

$

Currently unavailable

11

Homelite JA445768

NUT- Flange 1/4-20

$

$

Not available

12

Homelite JA454023

WASHER- Shakeproof 1/4"

$3.49

$

Usually ships in 3-7 days

0

13

Homelite JA400102

BOLT- 1/4-20 x 3/8

$5.49

$

Usually ships in 3-7 days

0

14

Homelite JA397370

BRACKET- Fuel tank

$

$

Currently unavailable

15

Homelite JA375993

SPACER

$

$

Currently unavailable

16

Homelite JA403756

SCREW- 10-24 x 3/4

$

$

Currently unavailable

17

Homelite JA397369

FUEL TANK

$

$

Currently unavailable

18

Homelite JA992365

EYEBOLT AND NUT ASSY.

$

$

Currently unavailable

19

Homelite JA181572

CAP- Tank

$

$

Not available

20

Homelite JA991599

SHORT BLOCK

$

$

Currently unavailable

21

Homelite JA992559

ROD- Choke

$

$

Currently unavailable

22

Homelite JA991206

GROMMET

$

$

Currently unavailable

23

Homelite JA453009

WASHER- 5/16
(Superseded to UP07173)

$

$

Not available

24

Homelite JA453013

WASHER- Flat 7/16
(Superseded to 84047)

$

$

Not available

25

Homelite JA447218

WASHER- Lock 7/16

$

$

Currently unavailable

26

Homelite JA443816

NUT- R.H. 7/16-20

$

$

Currently unavailable

27

Homelite JA375994

KNOB- Shut off

$

$

Currently unavailable

28

Homelite JA994490

GASKET- Manifold

$

$

Currently unavailable

29

Homelite JA444808

NUT- 10-32

$

$

Currently unavailable

30

Homelite JA990940

MANIFOLD- Exhaust

$

$

Currently unavailable

31

Homelite JA992534

RUBBER TUBING (cut to 11 1/4")

$

$

Currently unavailable

32

Homelite JA352167

EYEBOLT

$

$

Currently unavailable

33

Homelite JA452004

WASHER- 1/4"
(Superseded to 84026)

$

$

Not available

34

Homelite JA339309

HANDLE- Lower

$

$

Currently unavailable

35

Homelite JA409718

SCREW- #10-16 x 1 1/2"

$2.49

$

Usually ships in 3-7 days

0

36

Homelite JA991723

HANDLE- Upper

$

$

Currently unavailable

37

Homelite JA991724

LEVER- Operating

$

$

Currently unavailable

38

Homelite JA463606

PIN

$

$

Currently unavailable

39

Homelite JA445516

PAL NUT

$

$

Not available

40

Homelite JA992561

CABLE & SPRING

$

$

Not available

41

Homelite JA991427

GROMMET

$

$

Not available

42

Homelite JA375510

SCREW- 1/4-20 x 1 1/2"

$

$

Currently unavailable

43

Homelite JA445264

RETAINER- Nut 1/4-20

$

$

Currently unavailable

44

Homelite JA990799

CLAMP- Muffler

$

$

Not available

45

Homelite JA445775

NUT- Flange 5/16-18
(Superseded to UP06674)

$

$

Not available

46

Homelite JA400104

SCREW- 1/4-20 x 1/2
(Superseded to UP03379)

$

$

Not available

47

Homelite JA400184

SCREW- 5/16-18 x 3/4
(Superseded to UP03381)

$

$

Not available

48

Homelite JA400182

SCREW- Cap 5/16-18 x 5/8"

$

$

Not available

49

Homelite JA992825

MUFFLER

$

$

Currently unavailable

50

Homelite JA375429

AXLE-Shaft

$

$

Currently unavailable

51

Homelite JA453011

WASHER- Flat 3/8"
(Superseded to PS84010)

$

$

Not available

52

Homelite JA460014

PIN- Cotter 3/32-34

$

$

Not available

53

Homelite JA124080

WHEEL & TIRE

$

$

Currently unavailable
