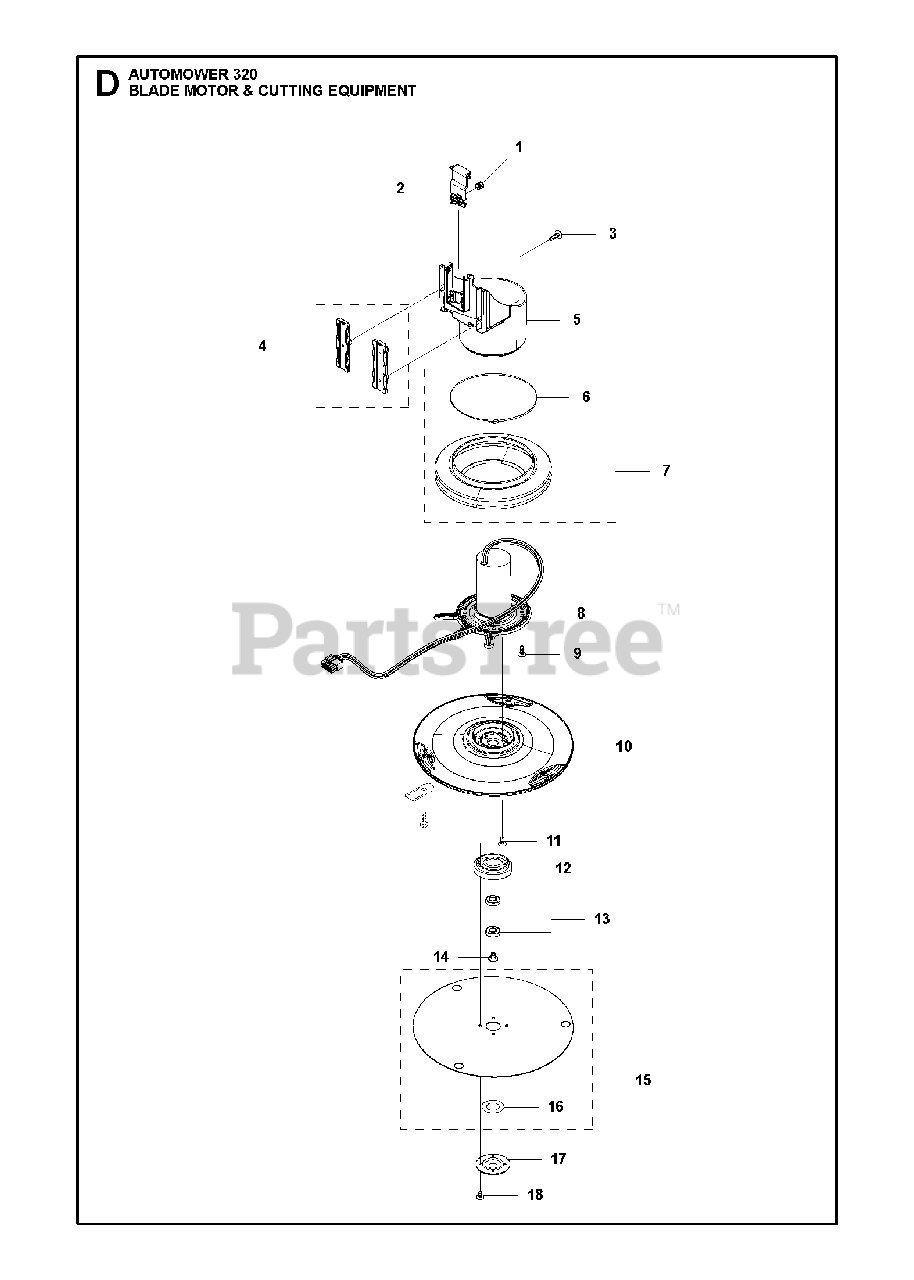

320 - Husqvarna Automower Robotic Lawn Mower (2013-03) BLADE MOTOR CUTTING EQUIPMENT Parts Diagram

Automower Robotic Lawn Mower

BLADE MOTOR CUTTING EQUIPMENT Parts Diagram

  • Title
1

Husqvarna 580624401

SPRING LINK

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 579564601

LINK MOTOR HOUSING

$5.99

$

In Stock, only 1 left!

0

3

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

4

Husqvarna 581621801

BEARING KIT

$7.99

$

Usually ships in 3-10 days

0

5

Husqvarna 579564501

HOUSING CUTTING MOTOR

$22.99

$

Usually ships in 3-10 days

0

6

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

9

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

$

$

Currently unavailable

11

Husqvarna 535130501

SCREW
(Superseded to 535130502)

$4.99

$

In Stock, only 2 left!

0

12

$9.49

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 1 left!

0

$4.99

$

In Stock, Qty 17

0

$

$

Currently unavailable

16

Husqvarna 535082501

GASKET

Note: . 15

$3.49

$

In Stock, only 2 left!

0

17

Husqvarna 535081501

COVER SKID PLATE

$

$

Not available

18

Husqvarna 575543310

SCREW SILVER 10MM

$3.49

$

In Stock, Qty 9

0
