320 (190-320-100) - Cub Cadet 42" Mower Deck att Deck Assembly Parts Diagram

42" Mower Deck

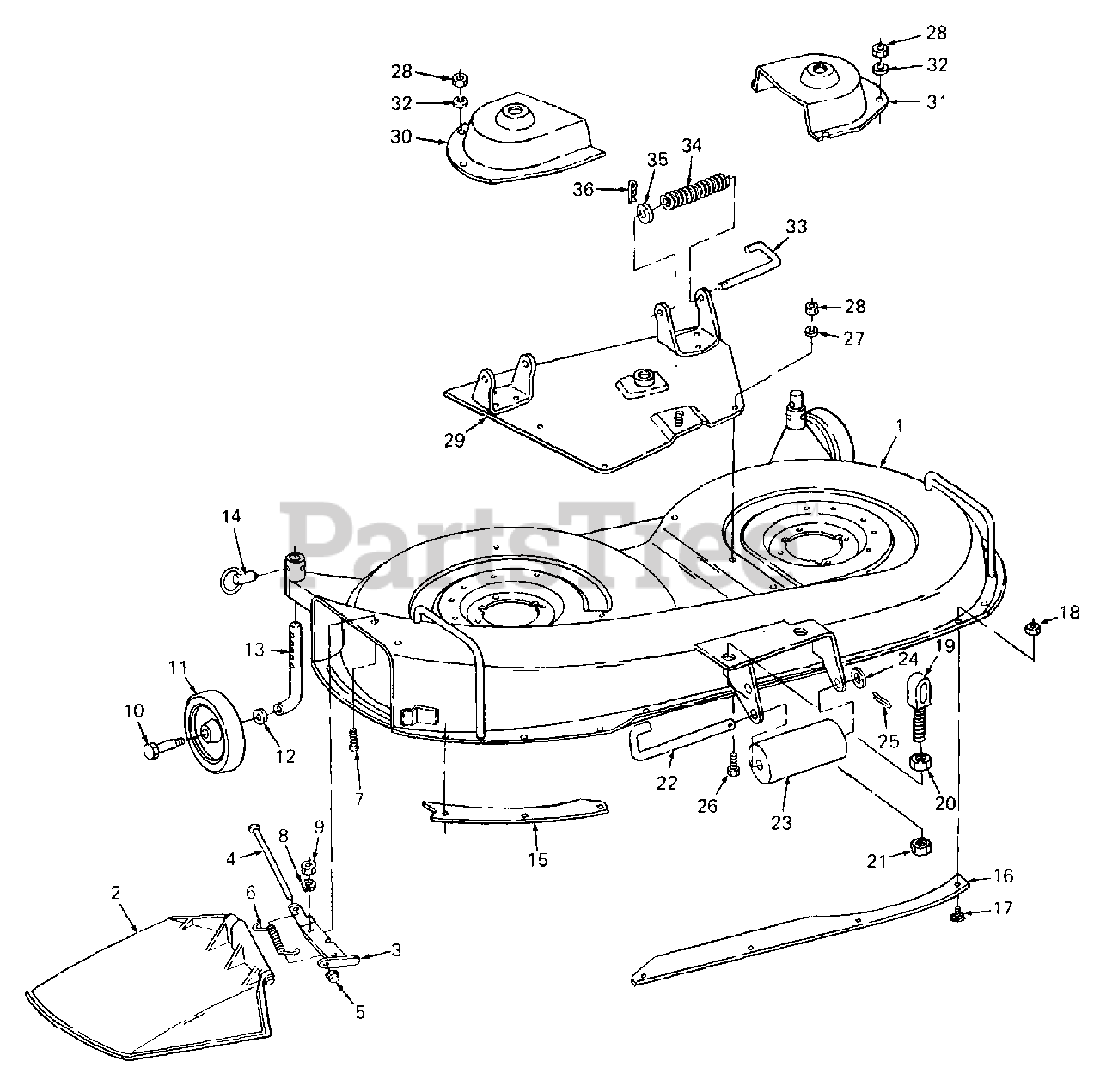

Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 759-3663

Deck Assembly w/Graphics
(Superseded to 759-3663-0716)

Variations

Cub Cadet 759-3663-0498

HOUSING-MOW - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 759-3663-0716

HOUSING-MOWER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

Cub Cadet 777-0702

Graphic, Danger Rider
(Superseded to 777S30018)

$8.49

$

In Stock, Qty 11

0

Cub Cadet 777-7313

Graphic, Danger Chute

$

$

Not available

2

Cub Cadet 731-1032

Deflector Assy, Chute
(Superseded to 631-05229)

Note: (Includes Ref No. 3, 4, 5 & 6)

$81.99

$

In Stock, Qty 6

0

Cub Cadet 777-2196

Graphic, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

3

Cub Cadet 703-1693

Bracket, Hinge Mtg
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

4

Cub Cadet 711-0792

Pin, Hinge, .25 Dia X 6.75 Lg
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

5

Cub Cadet 726-0106

Cap, Speed Nut

$3.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 732-0602

Spring, Torsion
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

7

Cub Cadet 710-0255

Screw, Truss Machine, 1/4-20 X .75 Lg, Phillips
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0329

Washer, Lock, 1/4 Dia
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

9

Cub Cadet 712-0287

Nut, Hex, 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

10

Cub Cadet 738-0373

Screw, Shoulder
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

11

Cub Cadet 734-3062

Wheel, Gauge, 5 in. Dia

$21.99

$

In Stock, Qty 16

0

12

Cub Cadet 736-0105

Washer, Bell, .380 X .88 X .062 Thk

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 711-3256

Axle, Deck

$77.99

$

In Stock, Qty 11

0

14

Cub Cadet 711-3266

Pin, Clevis w/Detent Ball

$15.99

$

In Stock, Qty 7

0

15

Cub Cadet 17961

Skirt, Short
(Superseded to 17961-0637)

Variations

Cub Cadet 17961-0637

Skirt Deck Extension Sho - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 1 left!

0

16

Cub Cadet 17861A

Skirt, Extension
(Superseded to 17861A-0637)

$

$

Not available

17

Cub Cadet 710-0167

Bolt, Carriage, 1/4-20 X .50 Lg
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 719-3009

Hanger, Front Mower Support
(Superseded to 919-3009)

$69.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 712-3015

Nut, Hex Jam, 5/8-11 GR5

$4.99

$

In Stock, only 2 left!

0

21

Cub Cadet 712-0261

Nut, Hex Jam Lock, 5/8-11 GR5
(Superseded to 912-0261)

$

$

Not available

22

Cub Cadet 711-3314

Pin, Roller, 1/2 Dia X 7.31 Lg
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

23

Cub Cadet 731-3005

Roller

$28.99

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .060 Thk

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia X 1.0 Lg

$3.99

$

In Stock, only 2 left!

0

26

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 603-0032

Plate Assy, Adapter

Variations

Cub Cadet 603-0032-0498

PLATE ASSEMBLY-ADAPTOR (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

30

Cub Cadet 703-2182

Cover, RH Belt
(Superseded to 703-3237-4021)

Variations

Cub Cadet 703-2182-0498

Belt Cover, RH Yellow - OLD CUB YELLOW (0498)

$66.99

$

Usually ships in 3-6 days

0

$66.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 703-1651A

Cover, LH Belt
(Superseded to 703-1651A-4021)

Variations

Cub Cadet 703-1651A-4021

Belt Cover, LH - CUB YELLOW 2 (4021)

$

$

Not available

$

$

32

Cub Cadet 736-0275

Washer, Flat, .34 X .68 X .062 Thk

$6.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 747-3013

Pin, Mower Support

$22.99

$

In Stock, only 2 left!

0

34

Cub Cadet 732-3007

Spring, Compression
(Superseded to 932-3007)

$

$

Not available

35

Cub Cadet 736-0160

Washer, Flat, .531 X .930 X .050 Thk

$4.49

$

In Stock, only 2 left!

0

36

Cub Cadet 715-3003

Pin, Spirol Spring, 3/16 Dia X .75 Lg

$6.99

$

In Stock, Qty 7

0
