32 RL - Husqvarna String Trimmer (1990-01) Engine Assembly Parts Diagram

String Trimmer

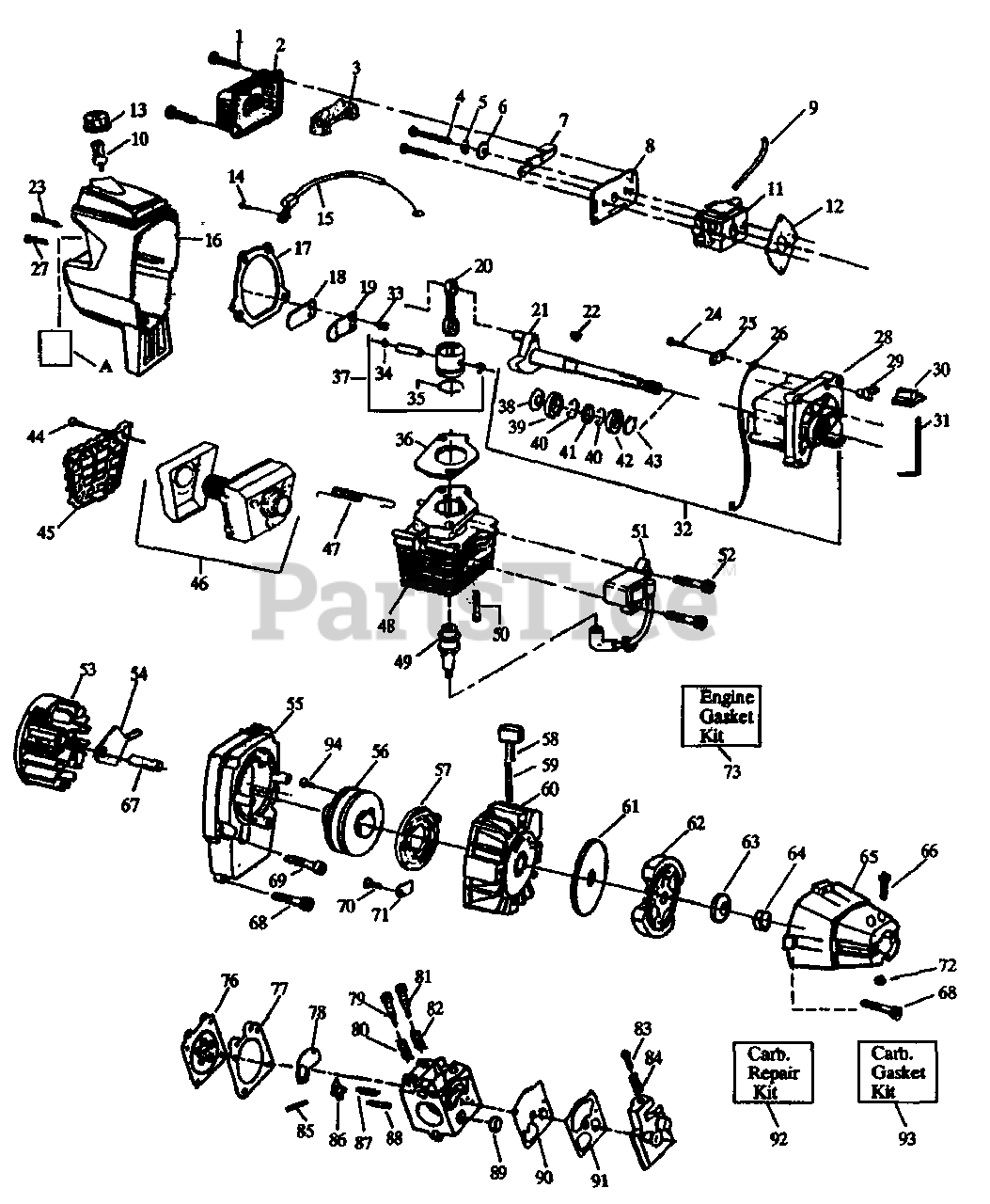

Engine Assembly Parts Diagram

  • Title

1

Husqvarna 530015772

Screw

$3.99

$

In Stock, only 2 left!

0

2

Husqvarna 530027529

Air Filter Cover

$

$

Not available

3

Husqvarna 530027530

Air Filter

$6.49

$

In Stock, Qty 11

0

4

Husqvarna 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

5

Husqvarna 530027528

Spacer
(Superseded to 530015852)

$3.49

$

In Stock, only 1 left!

0

6

Husqvarna 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

7

Husqvarna 530027526

Choke Shutter

$1.99

$

Usually ships in 3-10 days

0

8

Husqvarna 530027527

Air Filter Plate

$2.99

$

Usually ships in 3-10 days

0

9

Husqvarna 530069247

Fuel Line Kit

$7.99

$

In Stock, Qty 20+

0

10

Husqvarna 530010897

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

11

Husqvarna 530035259

Carburetor (WA-199)
(Superseded to 545081825)

$66.99

$

Usually ships in 3-10 days

0

12

Husqvarna 530019156

Carburetor Gasket

Note: (Included in Engine Gasket Kit P/N 530069276)

$8.99

$

In Stock, only 2 left!

0

13

Husqvarna 530010807

Fuel Cap Ass'y.
(Superseded to 530014347)

$9.49

$

In Stock, Qty 15

0

14

Husqvarna 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

15

Husqvarna 530027549

Throttle Cable Ass'y.
(Superseded to 530037497)

$

$

Not available

16

Husqvarna 530029188

Shroud & Tank Ass'y.

$

$

Not available

17

Husqvarna 530019154

Gasket

Note: (Included in Engine Gasket Kit P/N 530069276)

$3.99

$

In Stock, only 1 left!

0

18

Husqvarna 530027593

Reed

$6.49

$

In Stock, only 3 left!

0

19

Husqvarna 530027594

Reed Stop

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 530010960

Connecting Rod Ass'y.

Note: (Incl. Bearings)

$18.99

$

Usually ships in 3-10 days

0

21

Husqvarna 530010934

Crankshaft Ass'y.

$34.99

$

Usually ships in 3-10 days

0

22

Husqvarna 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 530015772

Screw

$3.99

$

In Stock, only 2 left!

0

24

Husqvarna 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 530027546

Kill Switch Insulator

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 530027547

Lead Wire

$

$

Not available

27

Husqvarna 530015771

Screw

$6.49

$

In Stock, Qty 6

0

28

Husqvarna 530014016

Crankcase Ass'y.

Note: (Incl. #39 - 42)

$

$

Not available

29

Husqvarna 530027545

Kill Switch Ramp

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 530027958

Kill Switch Button
(Superseded to 530038309)

$4.99

$

In Stock, Qty 8

0

31

Husqvarna 530027959

Kill Switch Spring

$

$

Not available

32

Husqvarna 530014015

Crankcase & Crankshaft Ass'y.
(Superseded to 530071705)

Note: (Incl. #21, 28, 38 & 43)

$37.99

$

Usually ships in 3-10 days

0

33

Husqvarna 530015241

Screw
(Superseded to 545227101)

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 530015162

Piston Pin Retainer

$6.49

$

In Stock, only 1 left!

0

35

Husqvarna 530025875

Piston Ring

$

$

Not available

36

Husqvarna 530019161

Cylinder Gasket
(Superseded to 530019267)

Note: (Included in Engine Gasket Kit P/N 530069276)

$4.99

$

In Stock, only 4 left!

0

37

Husqvarna 530069277

Piston Kit

Note: (Incl. #34, 35 & pin)

$54.99

$

Usually ships in 3-10 days

0

38

Husqvarna 530015788

Spacer

$0.99

$

Usually ships in 3-10 days

0

39

Husqvarna 530032103

Inner Bearing

$

$

Not available

40

Husqvarna 530015787

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 530019158

Crankshaft Seal

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 530032102

Outer Bearing

$

$

Not available

43

Husqvarna 530015789

Crankshaft Retaining Ring

$4.99

$

Usually ships in 3-10 days

0

44

Husqvarna 530015717

Screw

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 530027781

Muffler Guard

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 530069257

Muffler Kit
(Superseded to 530069310)

$

$

Not available

47

Husqvarna 530024903

Muffler Spring
(Superseded to 530036409)

$

$

Not available

48

Husqvarna 530012238

Cylinder
(Superseded to 530071581)

$78.99

$

Usually ships in 3-10 days

0

49

Husqvarna 530030058

Spark Plug

$3.99

$

In Stock, only 3 left!

0

50

Husqvarna 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

51

Husqvarna 530039134

Ignition Module Kit

$

$

Not available

52

Husqvarna 530015128

Screw
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 530039136

Flywheel Ass'y.
(Superseded to 530039189)

$

$

Not available

54

Husqvarna 530027572

Flywheel Counterweight
(Superseded to 530347987)

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 530029189

Fan Housing

$19.99

$

Usually ships in 3-10 days

0

56

Husqvarna 530069291

Starter Pulley
(Superseded to 530071387)

$

$

Not available

57

Husqvarna 530027531

Starter Spring
(Superseded to 545008015)

$7.99

$

In Stock, Qty 16

0

58

Husqvarna 530027569

Starter Handle

$6.49

$

Usually ships in 3-10 days

0

59

Husqvarna 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

60

Husqvarna 530014114

Pulley Housing Ass'y.
(Superseded to 530014009)

$

$

Not available

61

Husqvarna 530094189

Clutch Washer

$6.99

$

In Stock, only 1 left!

0

62

Husqvarna 530069259

Clutch

$

$

Currently unavailable

63

Husqvarna 530015796

Washer

$3.99

$

Usually ships in 3-10 days

0

64

Husqvarna 530001733

Nut

$

$

Not available

65

Husqvarna 530014115

Clutch Housing
(Superseded to 530014017)

$37.99

$

In Stock, only 1 left!

0

66

Husqvarna 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

67

Husqvarna 530027511

Spacer

$8.99

$

Usually ships in 3-10 days

0

68

Husqvarna 530015770

Screw

$

$

Not available

69

Husqvarna 530015769

Screw

$3.99

$

Usually ships in 3-10 days

0

70

Husqvarna 530015496

Screw

$3.99

$

Usually ships in 3-10 days

0

71

Husqvarna 530027523

Pulley Retainer

$7.49

$

In Stock, only 2 left!

0

72

Husqvarna 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0

73

Husqvarna 530069276

Engine Gasket Kit

Note: (Incl. Ref. Nos. 12, 17 and 36)

$

$

Not available

76

Husqvarna 530035014

Metering Diaphragm
(Superseded to 503896701)

Note: (Included in Carb. Kwik Repair Kit P/N 530035260; Included in Carb. Gasket/Diaphragm Kit P/N 530035185)

$51.99

$

In Stock, Qty 10

0

77

Husqvarna 530035151

Metering Diaphragm Gasket

Note: (Included in Carb. Kwik Repair Kit P/N 530035260; Included in Carb. Gasket/Diaphragm Kit P/N 530035185)

$3.99

$

In Stock, Qty 8

0

78

Husqvarna 530035147

Circuit Plate Gasket
(Superseded to 501781301)

Note: (Included in Carb. Kwik Repair Kit P/N 530035260; Included in Carb. Gasket/Diaphragm Kit P/N 530035185)

$

$

Not available

79

Husqvarna 530035142

Hi Speed Needle
(Superseded to 501782201)

$

$

Not available

80

Husqvarna 530035036

Hi Speed Needle Spring

$

$

Not available

81

Husqvarna 530035141

Idle Needle

$2.99

$

Usually ships in 3-10 days

0

82

Husqvarna 530035023

Idle Needle Spring

$0.99

$

Usually ships in 3-10 days

0

83

Husqvarna 530035203

Idle Speed Screw

$8.99

$

Usually ships in 3-10 days

0

84

Husqvarna 530035208

Idle Speed Spring
(Superseded to 530035121)

$3.99

$

Usually ships in 3-10 days

0

85

Husqvarna 530035028

Metering Lever Pin
(Superseded to 505520125)

Note: (Included in Carb. Gasket/Diaphragm Kit P/N 530035185)

$7.99

$

In Stock, only 3 left!

0

86

Husqvarna 530038031

Metering Lever

Note: (Included in Carb. Gasket/Diaphragm Kit P/N 530035185)

$

$

Currently unavailable

87

Husqvarna 530035188

Metering Lever Spring

Note: (Included in Carb. Gasket/Diaphragm Kit P/N 530035185)

$4.99

$

In Stock, Qty 10

0

88

Husqvarna 530035106

Inlet Needle Valve
(Superseded to 503117001)

Note: (Included in Carb. Gasket/Diaphragm Kit P/N 530035185)

$22.99

$

In Stock, Qty 8

0

89

Husqvarna 530035178

Inst Screen

Note: (Included in Carb. Gasket/Diaphragm Kit P/N 530035185)

$3.99

$

Usually ships in 3-10 days

0

90

Husqvarna 530035166

Pump Diaphragm
(Superseded to 504130807)

Note: (Included in Carb. Kwik Repair Kit P/N 530035260; Included in Carb. Gasket/Diaphragm Kit P/N 530035185)

$31.99

$

In Stock, Qty 6

0

91

Husqvarna 530035164

Pump Gasket
(Superseded to 504130906)

Note: (Included in Carb. Kwik Repair Kit P/N 530035260; Included in Carb. Gasket/Diaphragm Kit P/N 530035185)

$11.99

$

In Stock, only 3 left!

0

92

Husqvarna 530035260

Carb. Kwik Repair Kit

Note: (Incl. Ref. Nos. 76, 77, 78, 85 - 91)

$26.99

$

In Stock, only 3 left!

0

93

Husqvarna 530035185

Carb. Gasket/Diaphragm Kit

Note: (Incl. Ref. Nos. 76, 77, 78, 90 and 91)

$36.99

$

In Stock, only 2 left!

0

94

Husqvarna 530015823

Screw
(Superseded to 530016080)

Note: (Incl. in Starter Pulley Kit)

$6.49

$

In Stock, only 1 left!

0

A

Husqvarna 530029496

Instruction Decal
(Superseded to 530029406)

$

$

Not available

Husqvarna 230031314

Carton

$

$

Currently unavailable

Husqvarna 530014239

Ass'y. Parts Bag

$

$

Not available
