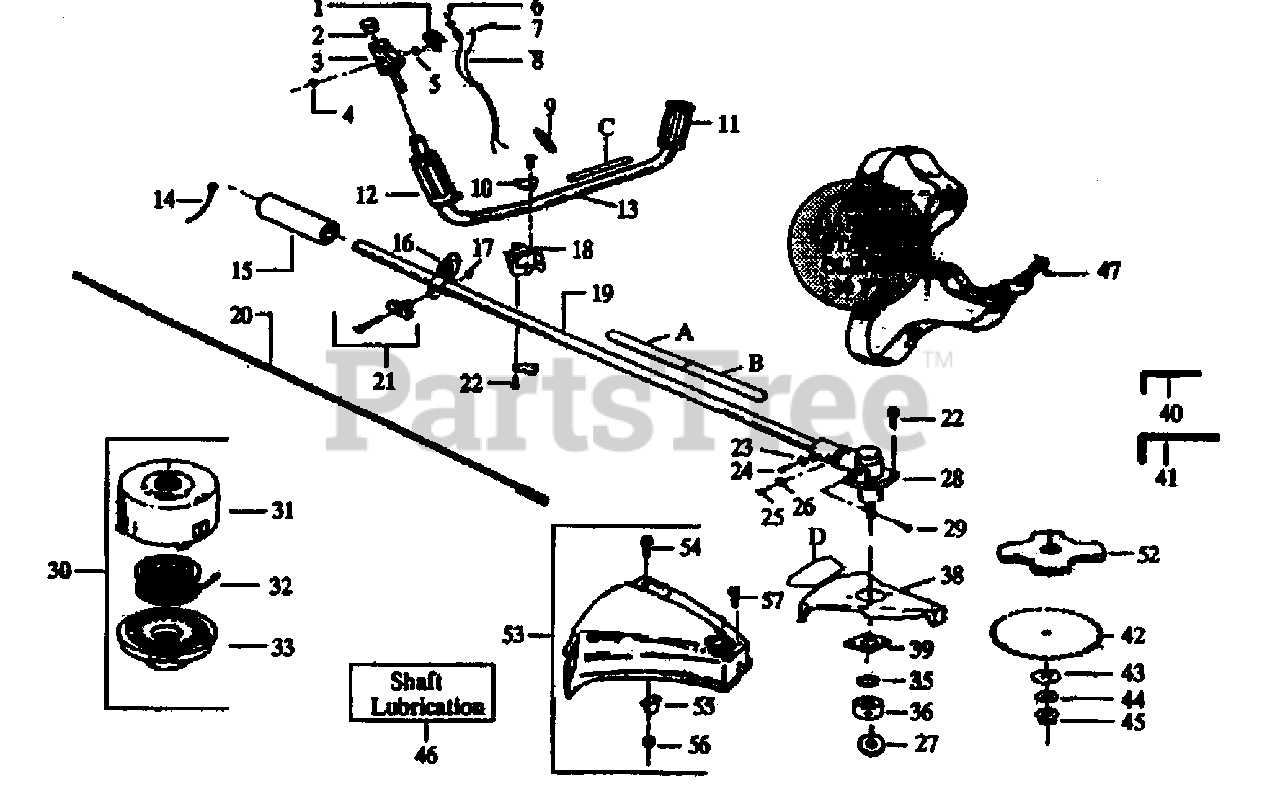

32 R - Husqvarna String Trimmer (1990-01) Handle, Tube And Spool Assembly Parts Diagram

String Trimmer

Handle, Tube And Spool Assembly Parts Diagram

  • Title
1

Husqvarna 530027900

Kill Switch Bracket

$

$

Not available

2

Husqvarna 530027588

Handlebar Cap

$0.99

$

Usually ships in 3-10 days

0

3

Husqvarna 530010965

Throttle Lever Ass'y. w/ Lock

Note: (Incl. #4 & 7)

$

$

Not available

$6.49

$

In Stock, only 2 left!

0

$1.99

$

Usually ships in 3-10 days

0

6

Husqvarna 530023575

Nut
(Superseded to 530002582)

$

$

Not available

$0.99

$

Usually ships in 3-10 days

0

8

Husqvarna 530027726

Wire Harness Ass'y

$

$

Not available

9

Husqvarna 530027893

Terminal Lock

$0.99

$

Usually ships in 3-10 days

0

10

Husqvarna 530094572

Handlebar Bracket

$3.99

$

In Stock, only 1 left!

0

11

Husqvarna 530027766

Handlebar Grip

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 530027736

Handguard Grip

$

$

Not available

13

$21.99

$

Usually ships in 3-10 days

0

14

$0.99

$

Usually ships in 3-10 days

0

15

Husqvarna 530021706

Drive Shaft Pad

$

$

Currently unavailable

16

Husqvarna 530094598

Clamp Harness Ass'y.
(Superseded to 530094686)

$7.49

$

Usually ships in 3-10 days

0

$

$

Currently unavailable

18

Husqvarna 530012207

Handlebar Clamp

$

$

Not available

19

Husqvarna 530094757

Drive Shaft Housing

$

$

Not available

20

Husqvarna 530094566

Drive Shaft

$96.99

$

Usually ships in 3-10 days

0

21

Husqvarna 530069252

"T" Handle Ass'y.
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

22

Husqvarna 530015791

Screw
(Superseded to 530015940)

$6.49

$

In Stock, Qty 8

0

23

Husqvarna 530015328

Lockwasher

$3.99

$

Usually ships in 3-10 days

0

$0.99

$

Usually ships in 3-10 days

0

$1.99

$

In Stock, only 1 left!

0

26

Husqvarna 530001642

Lockwasher

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 530094571

Grass Washer

$1.99

$

Usually ships in 3-10 days

0

28

Husqvarna 530094568

Gear Box Ass'y.
(Superseded to 530071781)

$

$

Not available

$

$

Currently unavailable

30

Husqvarna 952708529

Cutting Head Ass'y.
(Superseded to 952715541)

Note: (Incl. #31-33)

$

$

Not available

31

Husqvarna 530094759

Hub Ass'y.
(Superseded to 952711550)

$

$

Not available

32

Husqvarna 952708528

Spool w/Line

$

$

Not available

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

36

$

$

Not available

$

$

Not available

39

Husqvarna 530027615

Shield Retention Plate

$7.99

$

Usually ships in 3-10 days

0

40

Husqvarna 530031111

Hex Wrench (5/32)
(Superseded to 530031159)

$4.99

$

In Stock, only 1 left!

0

41

Husqvarna 530031098

Hex Wrench (9/16)

$2.49

$

Usually ships in 3-10 days

0

42

Husqvarna 952708522

Brush Blade -- 8"

$

$

Not available

$5.99

$

In Stock, only 2 left!

0

44

Husqvarna 530015492

Washer
(Superseded to 530016240)

$6.49

$

In Stock, only 1 left!

0

$6.49

$

In Stock, Qty 5

0

46

Husqvarna 530030102

Shaft Lubrication
(Superseded to 952708514)

$

$

Not available

47

Husqvarna 530094638

Shoulder Strap
(Superseded to 530094417)

$

$

Not available

52

Husqvarna 952708524

Weed Blade

Note: (Optional)

$

$

Not available

53

Husqvarna 530069256

Shield Kit Ass'y.

Note: (Incl.17 - 19)

$

$

Not available

$2.49

$

Usually ships in 3-10 days

0

55

Husqvarna 530094570

Line Limiter

$5.99

$

In Stock, only 2 left!

0

56

Husqvarna 530015653

Locknut
(Superseded to 534235901)

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 530015790

Screw
(Superseded to 530092243)

$3.99

$

In Stock, Qty 11

0

A

Husqvarna 530029167

Decal-Shaft Warning (Upper)

$

$

Not available

B

Husqvarna 530029168

Decal-Shaft Warning (Lower)

$

$

Not available

C

Husqvarna 530027884

Decal-Handlebar Warning

$

$

Not available

D

Husqvarna 530027755

Decal-Blade Direction

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 530067681

Operator's Manual

Note: Not Shown

$

$

Not available
