32-16BE01 (216-H) - Toro Lawn Tractor (1990) STARTER Parts Diagram

Lawn Tractor

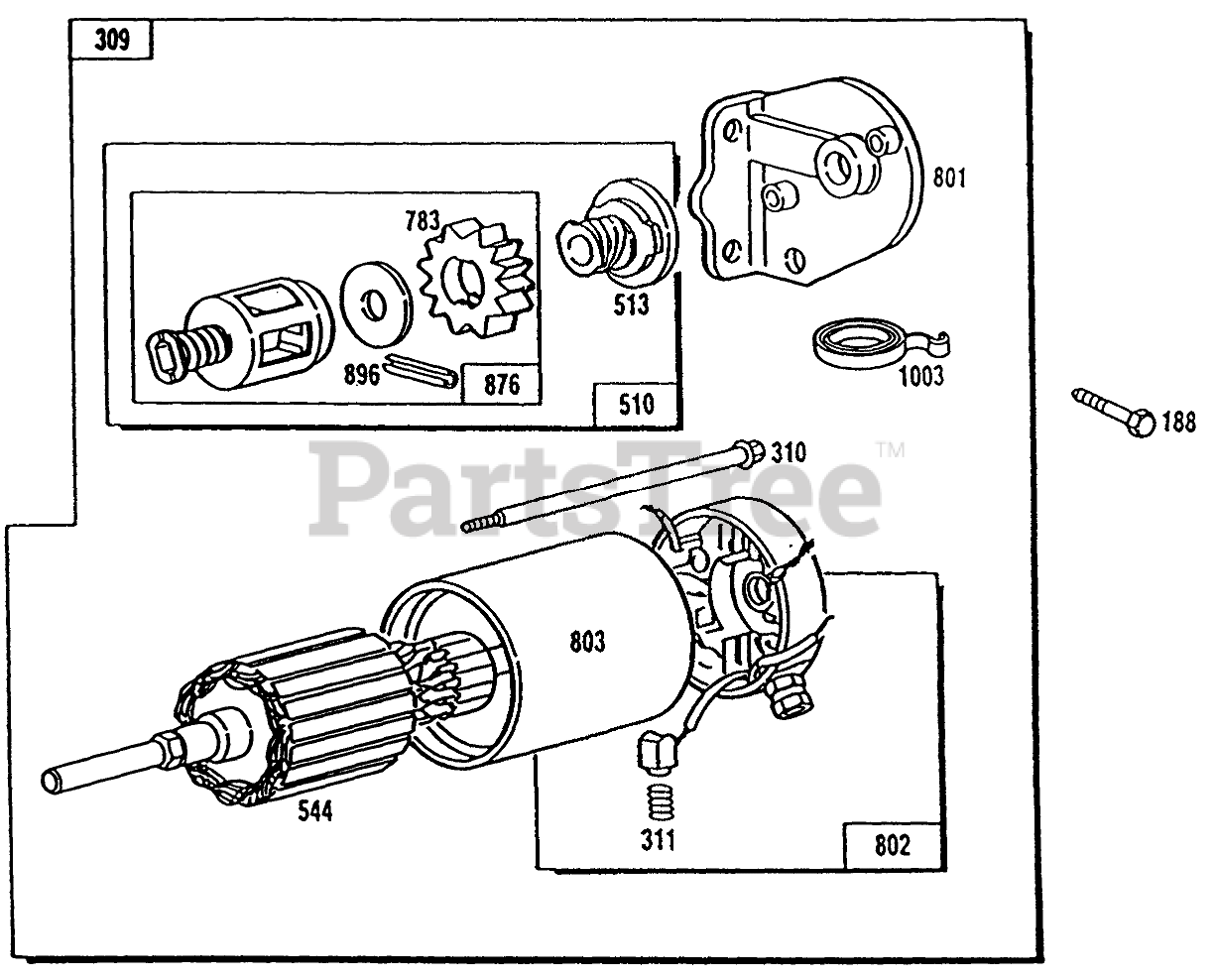

STARTER Parts Diagram

  • Title
188

Toro 78-4110

Screw

$

$

Not available

309

Toro 78-4340

Motor

$

$

Not available

310

$

$

Not available

311

Toro 78-4360

Brush Assembly

$

$

Not available

510

Toro 78-4530

Drive Assembly

$

$

Not available

513

Toro 78-4540

Clutch Assembly

$

$

Not available

544

Toro 78-4620

BRIGGS-490309

$

$

Not available

783

$

$

Not available

801

Toro 78-4880

Cap Assembly-Drive End

$

$

Not available

802

Toro 78-4890

BRIGGS-490310

$

$

Not available

803

Toro 78-4900

Housing Assembly

$

$

Not available

876

Toro 78-5020

Gear Kit

$

$

Not available

896

Toro 78-5050

Pin-Roll

$

$

Not available

1003

Toro 78-5200

Brush Spring Set

$

$

Not available
