32-16BE01 (216-H) - Toro Lawn Tractor (1990) SEAT AND SUSPENSION Parts Diagram

Lawn Tractor

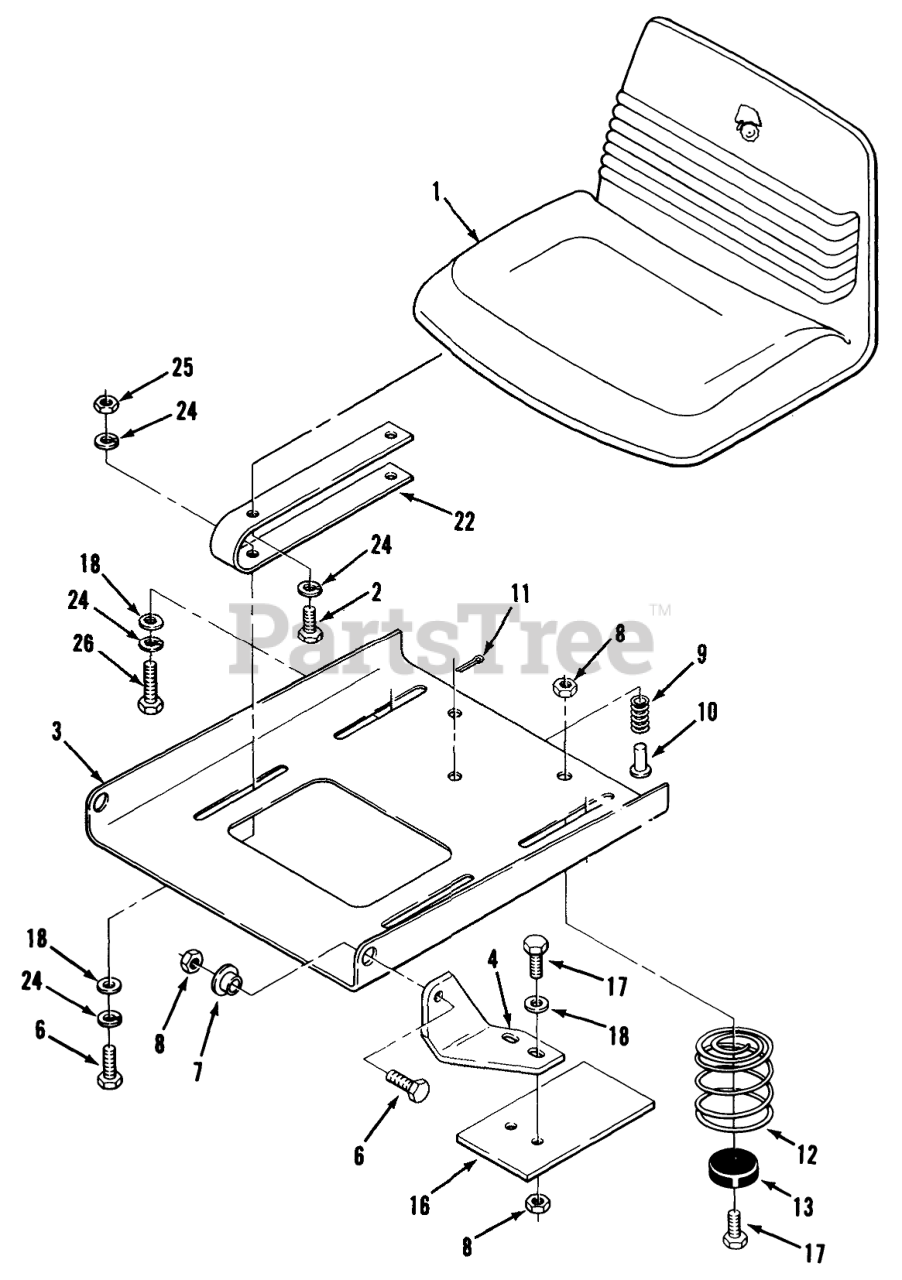

SEAT AND SUSPENSION Parts Diagram

  • Title

1

Toro 113985

Seat
(Superseded to 112292)

$

$

Not available

2

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

3

Toro 113852

PLATE-SEAT PIVOT B

$

$

Not available

4

Toro 112744

Bracket-Pivot RH

$36.99

$

Usually ships in 3-6 days

0

Toro 112745

BRACKET-PIVOT L.H B

$36.99

$

Usually ships in 3-6 days

0

6

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

7

Toro 105503

BUSHING

$0.99

$

In Stock, Qty 7

0

8

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

9

Toro 114267

SPRING-SEAT SWITCH

$

$

Not available

10

Toro 106449

PIN

$6.99

$

Usually ships in 3-6 days

0

11

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

12

Toro 114496

SPRING

$

$

Not available

13

Toro 108889

BUMPER

$21.99

$

Usually ships in 3-6 days

0

16

Toro 112961

PLATE R

$

$

Not available

17

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

18

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

22

Toro 112837

SPRING-SEAT B

$

$

Not available

24

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

25

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

26

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0
