32-16BE01 (216-H) - Toro Lawn Tractor (1990) HYDROSTATIC TRANSAXLE BRAKE AND IDLER LINKAGE Parts Diagram

Lawn Tractor

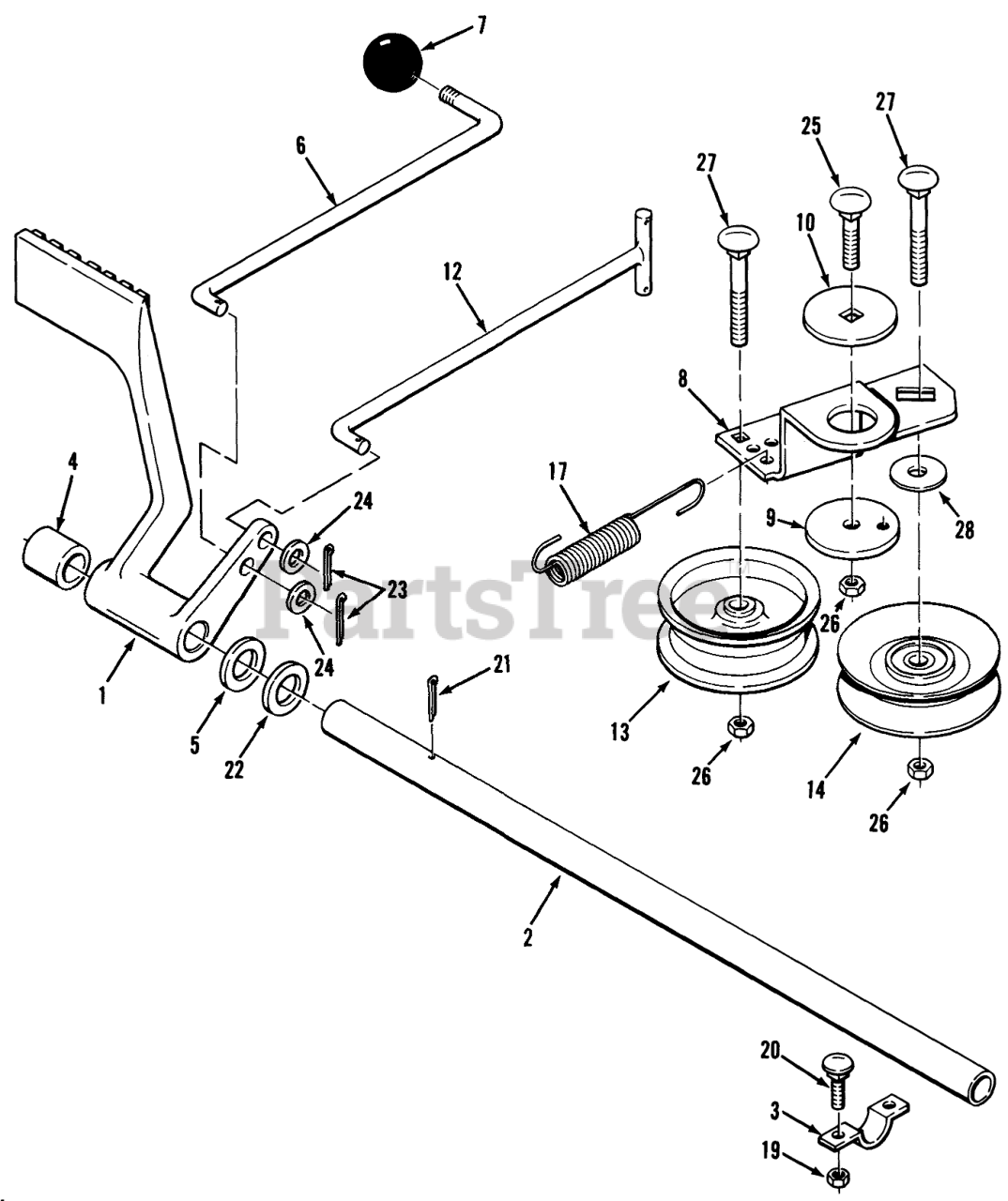

HYDROSTATIC TRANSAXLE BRAKE AND IDLER LINKAGE Parts Diagram

  • Title

1

Toro 114418

PEDAL-BRAKE R

$

$

Not available

2

Toro 111437

SHAFT PEDAL

$

$

Not available

3

Toro 106288

CLAMP

$16.99

$

Usually ships in 3-6 days

0

4

Toro 110015

SPACER

$

$

Not available

5

Toro 111712

WASHER-WAVE

$

$

Not available

6

Toro 114705

ROD-BRAKE LOCK B

$

$

Not available

7

Toro 111070

KNOB
(Superseded to 93-5312)

$10.99

$

Usually ships in 3-6 days

0

8

Toro 114034

ARM-IDLER R

$

$

Not available

9

Toro 111418

BUSHING

$33.99

$

Usually ships in 3-6 days

0

10

Toro 111419

WASHER-BEARING

$

$

Not available

12

Toro 114707

ASSY-ROD FRONT BR

$

$

Not available

13

Toro 111442

PULLEY IDLER

$59.99

$

Usually ships in 3-6 days

0

14

Toro 109444

PULLEY-IDLER

$74.99

$

Usually ships in 3-6 days

0

17

Toro 102572

SPRING

$24.99

$

Usually ships in 3-6 days

0

19

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

20

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

21

Toro 932025

PIN

$

$

Not available

22

Toro 920215

Washer
(Superseded to 9202154)

$3.49

$

In Stock, Qty 15

0

23

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

24

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

25

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

26

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

27

Toro 900237

Carriage Bolt 3/8-16 x 1-3/4
(Superseded to 3231-29)

$7.99

$

Usually ships in 3-6 days

0

28

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0
