32-16BE01 (216-H) - Toro Lawn Tractor (1990) ENGINE PULLEY & PTO CLUTCH Parts Diagram

Lawn Tractor

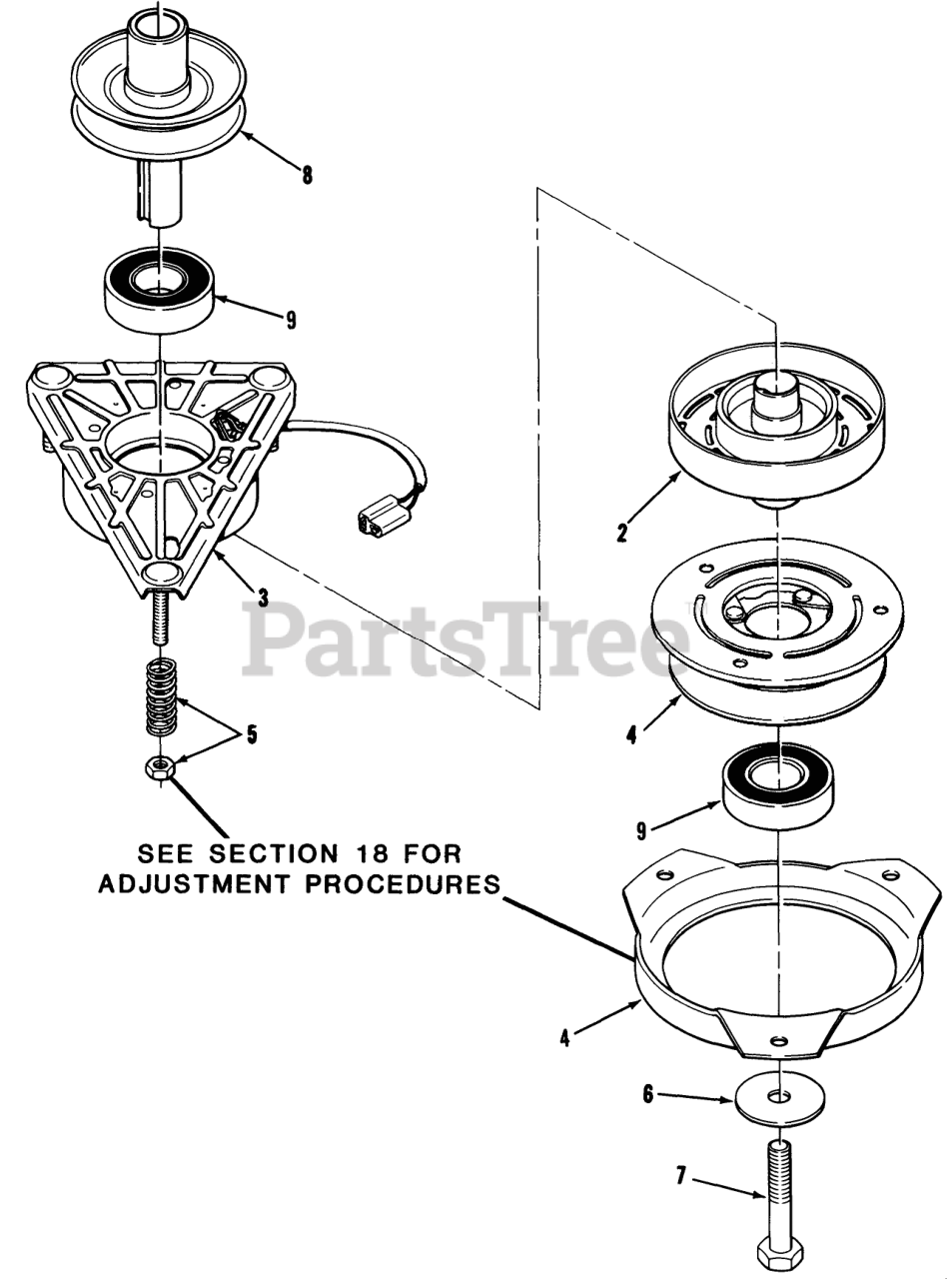

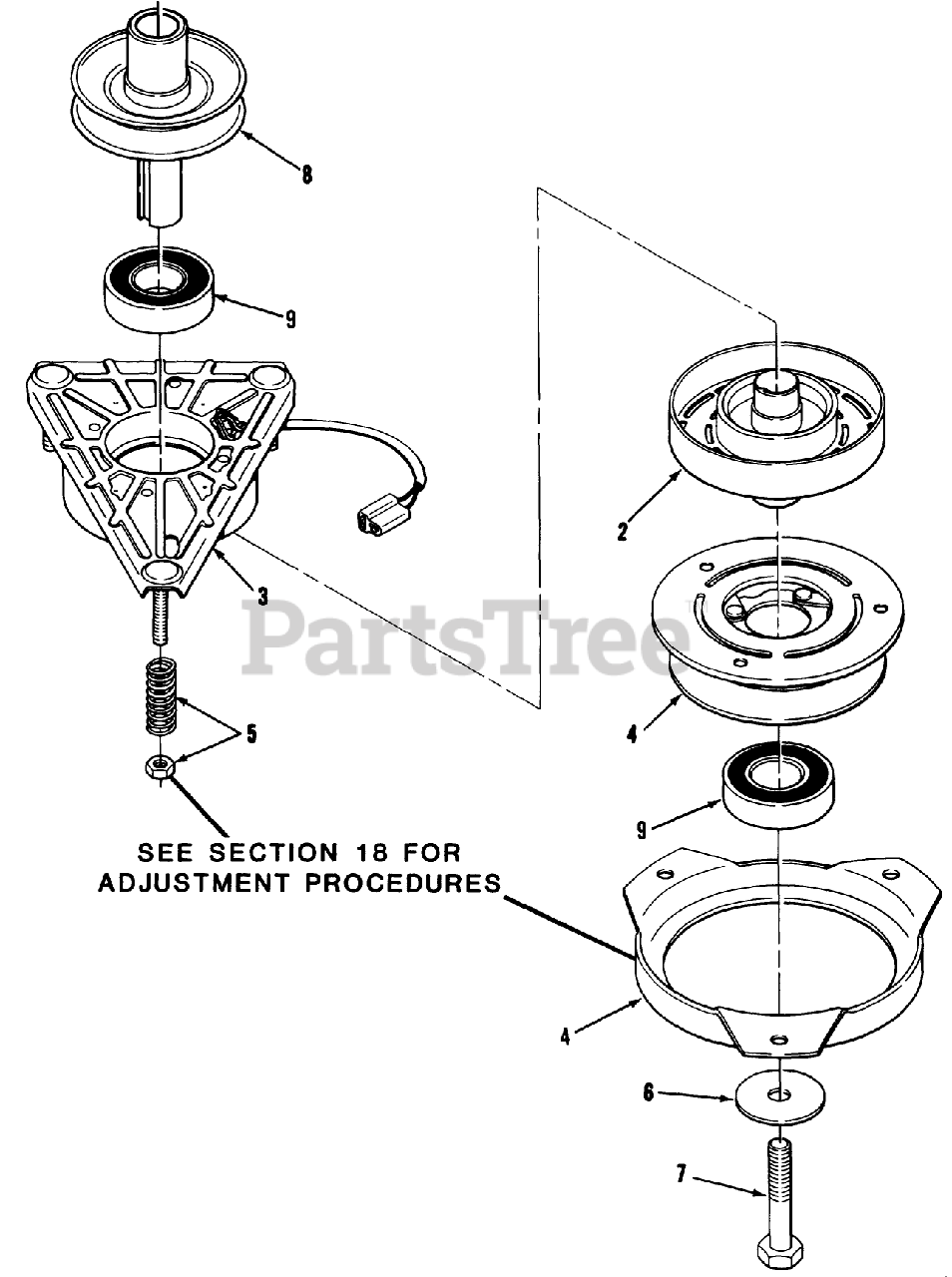

ENGINE PULLEY & PTO CLUTCH Parts Diagram

  • Title

Toro 112849

Electric Clutch Assy (Includes items 2, 3, 4, & 5)
(Superseded to 99-8011)

$

$

Not available

2

Toro 113280

Rotor Assy

$

$

Not available

3

Toro 113821

Field Assy (Includes one of item 9)

$

$

Not available

4

Toro 113822

Armature and pulley Assy (Includes one of item 9 and Brake Plate)

$438.99

$

Usually ships in 3-6 days

0

5

Toro 113823

ACCESS SPRING & NUT

$

$

Not available

6

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

7

Toro 112853

HHCS M10X1.5X120

$

$

Not available

8

Toro 112858

PULLEY-ENGINE

$209.99

$

Usually ships in 3-6 days

0

9

Toro 114064

BEARING-ELEC CLUTCH

$77.99

$

In Stock, only 2 left!

0
