32-16BE01 (216-H) - Toro Lawn Tractor (1990) ELECTRICAL SYSTEM Parts Diagram

Lawn Tractor

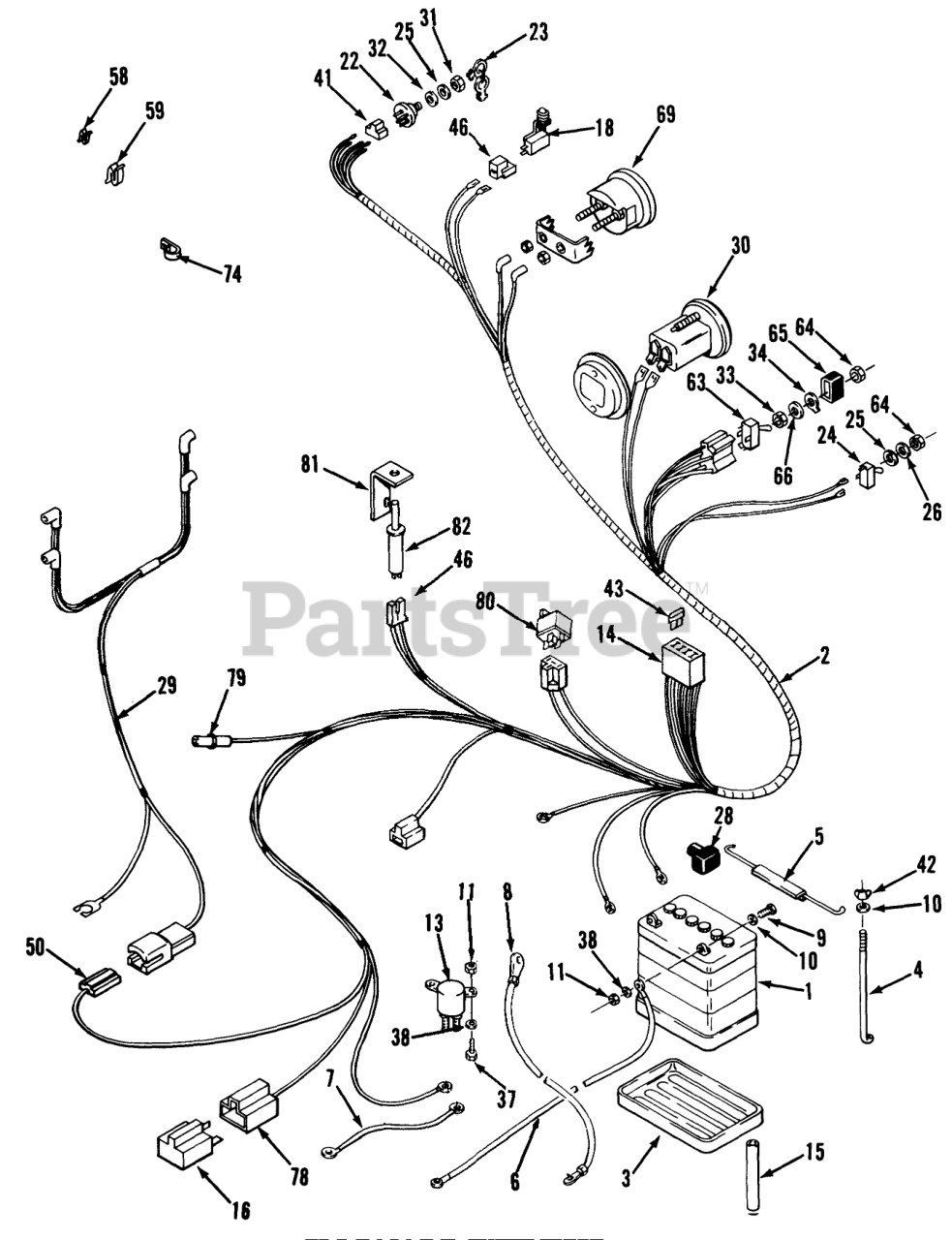

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 115877

Battery
(Superseded to 104-8162)

$

$

Not available

2

Toro 117690

MAIN-HARNESS & DIA

$

$

Not available

3

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 1 left!

0

4

Toro 109547

HOOK

$10.99

$

In Stock, only 2 left!

0

5

Toro 117316

ROD-BATTERY HOLD DWN

$25.99

$

In Stock, only 1 left!

0

6

Toro 111076

WIRE - 14" BLACK

$

$

Not available

7

Toro 114642

ASS'Y-WIRE 9.0"

$

$

Not available

8

Toro 111076

WIRE - 14" BLACK

$

$

Not available

9

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

10

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

11

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

13

Toro 110167

Solenoid (Includes two of item 11)
(Superseded to 740207)

$34.99

$

In Stock, Qty 6

0

14

Toro 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)

$21.99

$

In Stock, only 1 left!

0

15

Toro 114721

TUBE-BATTERY DRAIN

$

$

Not available

16

Toro 117007

DIODE-ASS'Y

$

$

Not available

18

Toro 114240

Seat Switch
(Superseded to 112418)

$51.99

$

In Stock, only 4 left!

0

22

Toro 116338

Ignition Switch (Includes items 31 & 32)

$76.99

$

In Stock, only 2 left!

0

23

Toro 111220

Ignition Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

Toro 116738

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

24

Toro 102138

Light Switch (Includes items 33 & 34)

$34.99

$

Usually ships in 3-6 days

0

25

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

26

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

28

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

29

Toro 78-0010

HARNESS-HEADLIGHT

$

$

Not available

30

Toro 113469

Hourmeter (Includes 114017 Bracket, 915962 Keps Nut (2) & 5924 E.S. Nut #10-24 (2))

$445.99

$

Usually ships in 3-6 days

0

31

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

32

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

33

Toro 105805

NUT-HEX, SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

34

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

37

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

38

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

41

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

42

Toro 116497

Nut
(Superseded to 32103-22)

$2.99

$

In Stock, Qty 17

0

43

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

Toro 109102

FUSE-BLADE, 25 AMP

$5.49

$

In Stock, Qty 9

0

Toro 109103

FUSE-BLADE, 30 AMP

$6.49

$

In Stock, Qty 6

0

46

Toro 111498

CONNECTOR BODY

$4.99

$

In Stock, only 3 left!

0

50

Toro 104926

CONNECTOR BODY ELECT

$3.99

$

In Stock, only 2 left!

0

58

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

59

Toro 3023

SPEED CLIP

$

$

Not available

63

Toro 116716

Electric Clutch Switch (Includes items 33, 34 & 64)

$83.99

$

In Stock, only 1 left!

0

64

Toro 113179

DISC

$

$

Not available

65

Toro 113050

COVER-PTO SWITCH

$71.99

$

Usually ships in 3-6 days

0

66

Toro 920242

WASHER

$6.49

$

Usually ships in 3-6 days

0

69

Toro 117176

Voltmeter (Includes 109650 Clamp & 5924 #10-32 Nut (2))

$

$

Not available

74

Toro 105490

CLAMP

$

$

Not available

78

Toro 105303

CONNECTOR 5 WAY

$4.49

$

Usually ships in 3-6 days

0

79

Toro 518075

Connector-Socket

$

$

Not available

80

Toro 116397

RELAY

$33.99

$

In Stock, only 1 left!

0

81

Toro 120380

Bracket

$

$

Not available

82

Toro 120370

SWITCH-PLUNGER

$74.99

$

Usually ships in 3-6 days

0
