32-16BE01 (216-H) - Toro Lawn Tractor (1990) CYLINDER, OIL PUMP AND CRANKSHAFT Parts Diagram

Lawn Tractor

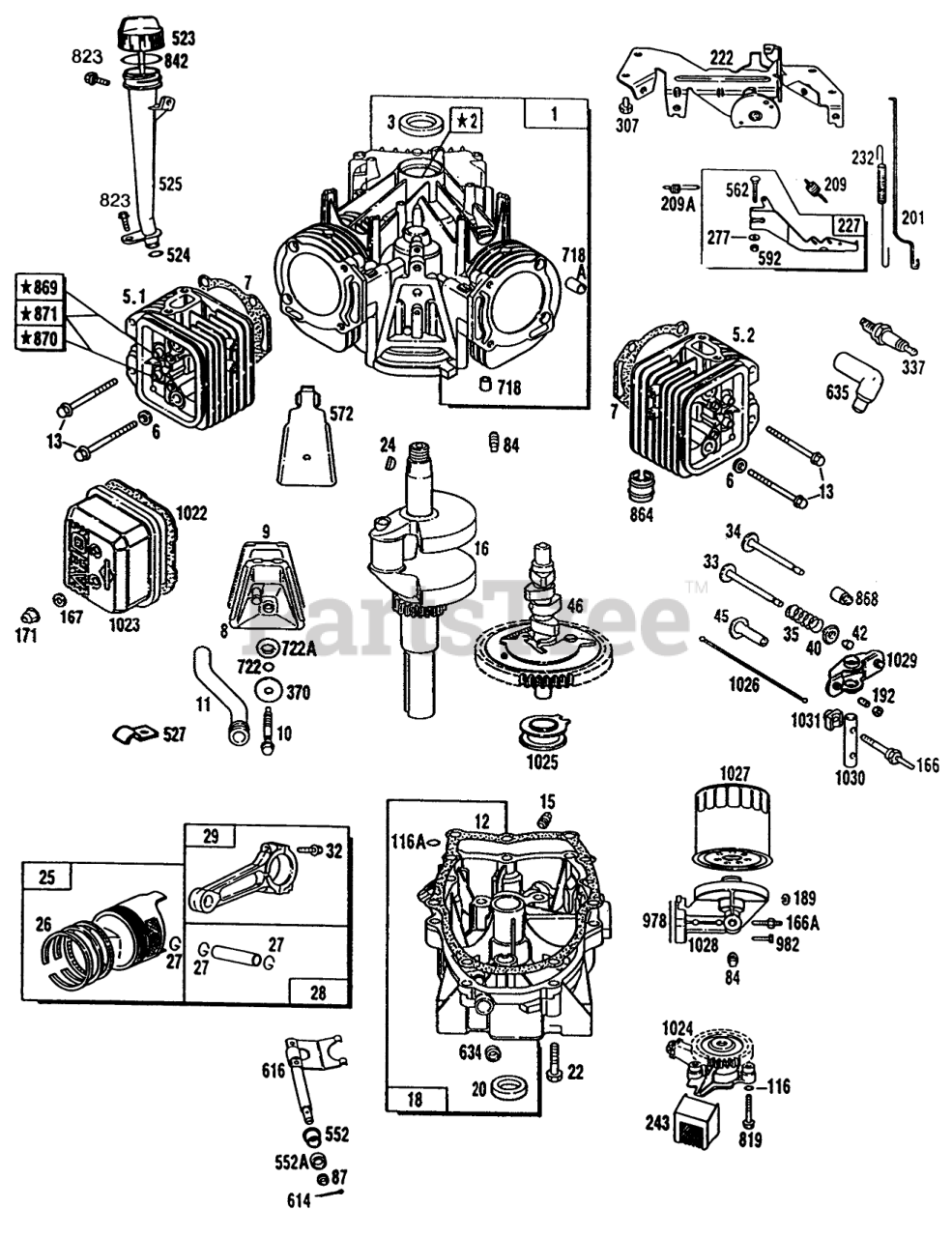

CYLINDER, OIL PUMP AND CRANKSHAFT Parts Diagram

  • Title

1

Toro 78-3410

Cylinder Assembly

$

$

Not available

2

Toro 78-3420

Bearing

$

$

Not available

3

Toro 78-3430

Oil Seal

$

$

Not available

5.1

Toro 78-3440

Cylinder Head w/Valves

$

$

Not available

5.2

Toro 78-3450

Cylinder Head w/out Valves

$

$

Not available

6

Toro 78-3460

Washer

$

$

Not available

7

Toro 78-3470

Gasket

$

$

Not available

8

Toro 78-3480

Breather

$

$

Not available

9

Toro 78-3490

Gasket

$

$

Not available

10

Toro 78-3500

Screw

$

$

Not available

11

Toro 78-3510

Tube

$

$

Not available

12

Toro 78-3520

Gasket

$

$

Not available

13

Toro 78-3530

Screw

$

$

Not available

15

Toro 78-3540

BRIGGS 805048

$

$

Not available

16

Toro 78-3550

Crankshaft

$

$

Not available

18

Toro 78-3570

Cover

$

$

Not available

20

Toro 78-3580

Seal

$

$

Not available

22

Toro 78-3590

Screw

$

$

Not available

24

Toro 78-3610

Key

$

$

Not available

25

Toro 78-3620

Piston Ass-y (Std.)

$

$

Not available

26

Toro 78-3630

Ring-Piston (Std.)

$

$

Not available

27

Toro 78-3640

Lock

$

$

Not available

28

Toro 78-3650

Pin Ass-y (Std.)

$

$

Not available

29

Toro 78-3660

Rod Assembly

$

$

Not available

32

Toro 78-3670

Nut

$

$

Not available

33

Toro 78-3680

Exhaust Valve

$

$

Not available

34

Toro 78-3690

Intake Valve

$

$

Not available

35

Toro 78-3700

Spring

$

$

Not available

40

Toro 78-3710

Spring Retainer

$

$

Not available

42

Toro 78-3720

Retainer-Valve

$

$

Not available

45

Toro 78-3730

Tappet

$

$

Not available

46

Toro 78-3740

Gear

$

$

Not available

84

Toro 78-3830

Plug

$

$

Not available

87

Toro 78-3840

Seal

$

$

Not available

116

Toro 78-3910

"O"Ring

$

$

Not available

116A

Toro 78-3920

"O"Ring

$

$

Not available

166

Toro 78-4060

Stud

$

$

Not available

166A

Toro 78-4070

Stud

$

$

Not available

167

Toro 78-4080

Washer

$

$

Not available

171

Toro 78-4090

Nut

$

$

Not available

189

Toro 78-4120

Lockwasher

$

$

Not available

192

Toro 78-4130

Screw

$

$

Not available

201

Toro 78-4140

Link

$

$

Not available

209

Toro 78-4150

Spring

$

$

Not available

209A

Toro 78-4160

Idle Spring

$

$

Not available

222

Toro 78-4180

Bracket

$

$

Not available

227

Toro 78-4200

Lever Assembly

$

$

Not available

232

Toro 78-4210

Governor Link Spring

$

$

Not available

243

Toro 78-4230

Screen

$

$

Not available

277

Toro 78-4280

Washer

$

$

Not available

307

Toro 784310

Screw

$

$

Currently unavailable

337

Toro 784410

Spark Plug

$

$

Currently unavailable

370

Toro 784480

Washer

$

$

Currently unavailable

523

Toro 78-4560

Dipstick

$

$

Not available

524

Toro 78-4570

Seal

$

$

Not available

525

Toro 784580

Tube

$

$

Currently unavailable

527

Toro 78-4600

Clamp

$

$

Not available

552

Toro 78-4630

Bushing

$

$

Not available

552A

Toro 784640

Bushing

$

$

Currently unavailable

562

Toro 784650

Bolt

$

$

Currently unavailable

572

Toro 784660

Baffle

$

$

Currently unavailable

592

Toro 78-4680

Nut

$

$

Not available

614

Toro 78-4710

Cotter Pin

$

$

Not available

615

Toro 784720

Choke Shaft Retainer

$

$

Currently unavailable

634

Toro 784750

Washer

$

$

Currently unavailable

635

Toro 784790

Elbow

$

$

Currently unavailable

718

Toro 784810

Dowel Pin

$

$

Currently unavailable

718A

Toro 78-4820

Dowel Pin

$

$

Not available

722

Toro 784830

Seal

$

$

Currently unavailable

722A

Toro 784840

Seal

$

$

Currently unavailable

819

Toro 784910

Screw

$

$

Currently unavailable

823

Toro 784920

Screw

$

$

Currently unavailable

842

Toro 78-4930

"O"Ring

$

$

Not available

864

Toro 78-4960

Liner

$

$

Not available

868

Toro 78-4980

Seal

$

$

Not available

869

Toro 78-4990

Seal-Intake Valve

$

$

Not available

870

Toro 78-5000

Seat-Exhaust Valve

$

$

Not available

871

Toro 78-5010

Guide-Valve

$

$

Not available

978

Toro 78-5160

Gasket

$

$

Not available

982

Toro 78-5170

Screw

$

$

Not available

1022

Toro 78-5240

Gasket

$

$

Not available

1023

Toro 78-5250

Cover

$

$

Not available

Toro 78-5260

Cover (Used on Cyl. w/Valves on Fuel Pump Applications)

$

$

Not available

1024

Toro 78-5270

Oil Pump Assembly

$

$

Not available

1025

Toro 78-5280

Governor Slider

$

$

Not available

1026

Toro 78-5290

Rod

$

$

Not available

1027

Toro 78-5300

FILTER-OIL
(Superseded to 107-7817)

$17.99

$

In Stock, Qty 7

0

1028

Toro 78-5310

Adapter-Oil Filter

$

$

Not available

1029

Toro 78-5320

Arm

$

$

Not available

1030

Toro 78-4460

Shaft

$

$

Not available

1031

Toro 78-4190

Rocker Arm Support

$

$

Not available

Toro 78-3760

Gasket Kit (Includes Items 7, 9, 51, 52, 537, 883, 978 & 1022)

Note: Not illustrated

$

$

Not available

Toro 78-3960

Valve Overhaul Kit (Includes Items 6, 7, 167 & 171)

Note: Not illustrated

$

$

Not available

Toro 78-3940

Carburetor Gasket Kit (Includes Items 116B, 137, 987 & 1013)

Note: Not illustrated

$

$

Not available

Toro 78-3930

Carburetor Overhaul Kit (Includes Items 116B, 117,127, 127A, 137, 147, 634A, 634B, 634C, 987 & 1013)

Note: Not illustrated

$

$

Not available
