32-12OE01 (212-H) - Toro Lawn Tractor (1990) FRAME, SHEET METAL & COVERS Parts Diagram

Lawn Tractor

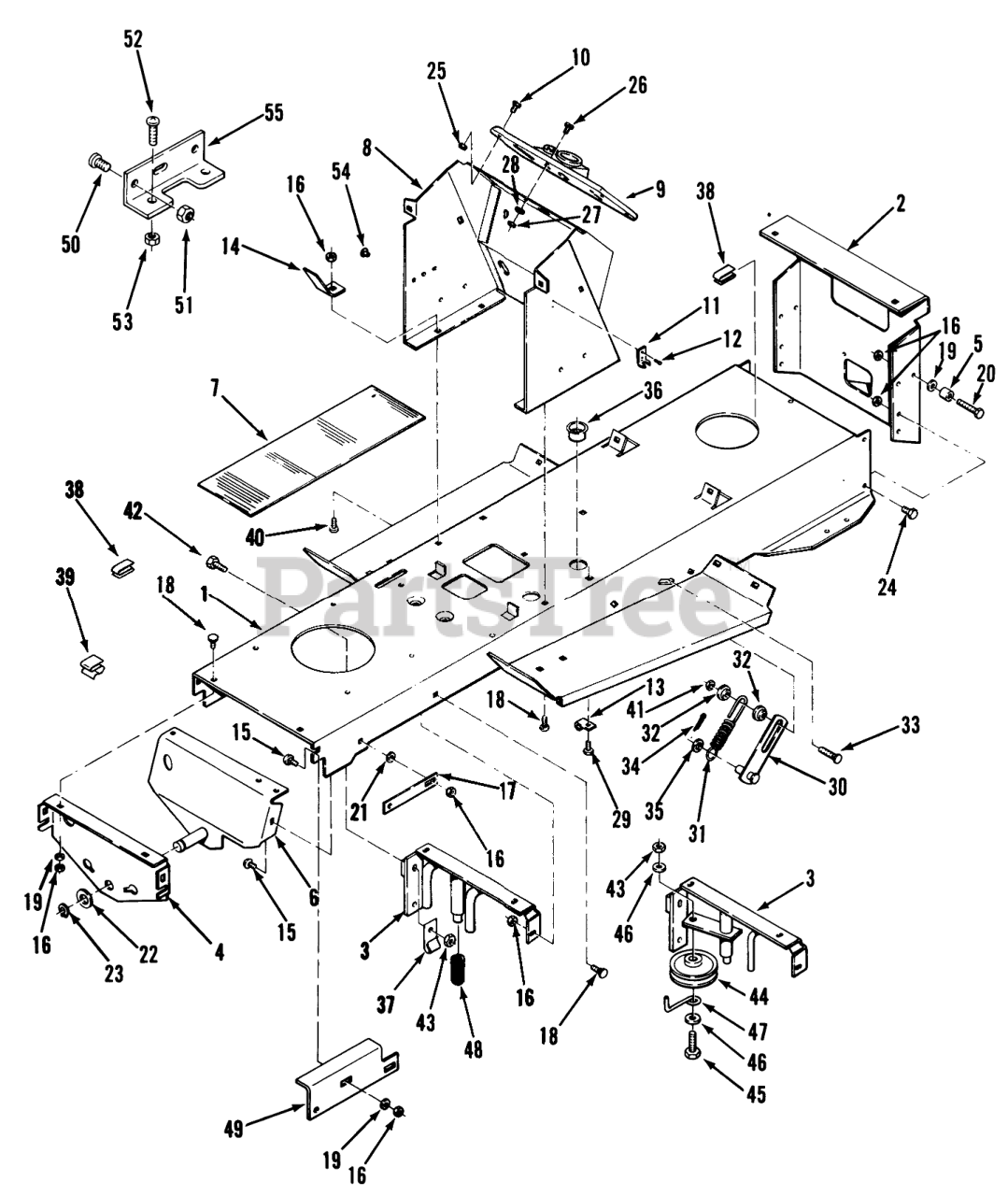

FRAME, SHEET METAL & COVERS Parts Diagram

  • Title
1

Toro 114423

Frame
(Superseded to 78-1640)

$587.99

$

Usually ships in 3-6 days

0

2

Toro 114417

PLATE-DRAWBAR R

$204.99

$

Usually ships in 3-6 days

0

3

Toro 112850

ASS'Y-FRAME SUPPO R

$

$

Not available

Toro 114851

ASS'Y-FRAME SUPPO R

$

$

Not available

4

Toro 111397

PLATE SUPT - AXLE R

$110.99

$

Usually ships in 3-6 days

0

5

Toro 114610

BEARING-CAM ROLLER

$

$

Not available

6

Toro 112977

ASS'Y-AXLE SPT RE R
(Superseded to 112977-01)

$

$

Not available

7

Toro 106488

PAD-FOOTREST

$31.99

$

Usually ships in 3-6 days

0

Toro 110180

PAD-FOOTREST

$

$

Not available

8

Toro 114897

Hoodstand 210-H, 210-5

$

$

Not available

Toro 117136

WLDMT-HOODSTAND B

$

$

Not available

9

Toro 111467

CONSOLE

$

$

Not available

10

Toro 111499

SCREW #10X.62 PHCR

$

$

Not available

11

Toro 109237

Latch Keeper
(Superseded to 117343)

$4.49

$

In Stock, only 2 left!

0

12

Toro 923784

RIVET
(Superseded to 3290-54)

$0.99

$

In Stock, only 2 left!

0

13

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

14

Toro 111671

BRACKET FUSE

$

$

Not available

15

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

Usually ships in 3-6 days

0

16

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

17

Toro 111763

STRAP R

$19.99

$

Usually ships in 3-6 days

0

18

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

19

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

20

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

21

Toro 920155

Washer-Lock
(Superseded to 3254-23)

$

$

Not available

22

Toro 1278

WASHER

$2.99

$

In Stock, Qty 5

0

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 16

0

23

Toro 104822

Snap Ring
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

24

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

25

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

26

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

27

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

28

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

29

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

30

Toro 111524

ASSY LINK B

$

$

Not available

31

Toro 111527

SPRING

$55.99

$

In Stock, only 2 left!

0

32

Toro 111758

BUSHING

$

$

Not available

33

Toro 900040

Bolt-Carriage
(Superseded to 3230-4)

$3.99

$

In Stock, Qty 6

0

34

$

$

Not available

35

Toro 920242

WASHER

$6.49

$

Usually ships in 3-6 days

0

36

Toro 938031

BUSHING-NYLON 1.093

$0.99

$

Usually ships in 3-6 days

0

37

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

38

Toro 113116

RETAINER

$

$

Not available

39

Toro 519337

CLIP-CABLE

$1.99

$

Usually ships in 3-6 days

0

40

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

41

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

42

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

43

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

44

Toro 110370

IDLER PULLEY R
(Superseded to 93-0320)

$19.99

$

In Stock, only 4 left!

0

45

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

46

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

47

Toro 109230

RETAINER BELT R

$

$

Not available

48

$

$

Not available

49

Toro 114990

BRACKET R.H. R

$

$

Not available

Toro 114989

BRACKET L.H. R

$

$

Not available

50

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

51

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

52

Toro 910796

Screw
(Superseded to 9107964)

$1.49

$

Usually ships in 3-6 days

0

53

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

54

Toro 938050

PLUG-NYLON .250

$

$

Not available

55

Toro 117142

BRKT-FUSE HOLDER B

$

$

Not available
