32-12BEA3 (212-H) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) ENGINE FUEL & EXHAUST ASSEMBLY Parts Diagram

Lawn Tractor

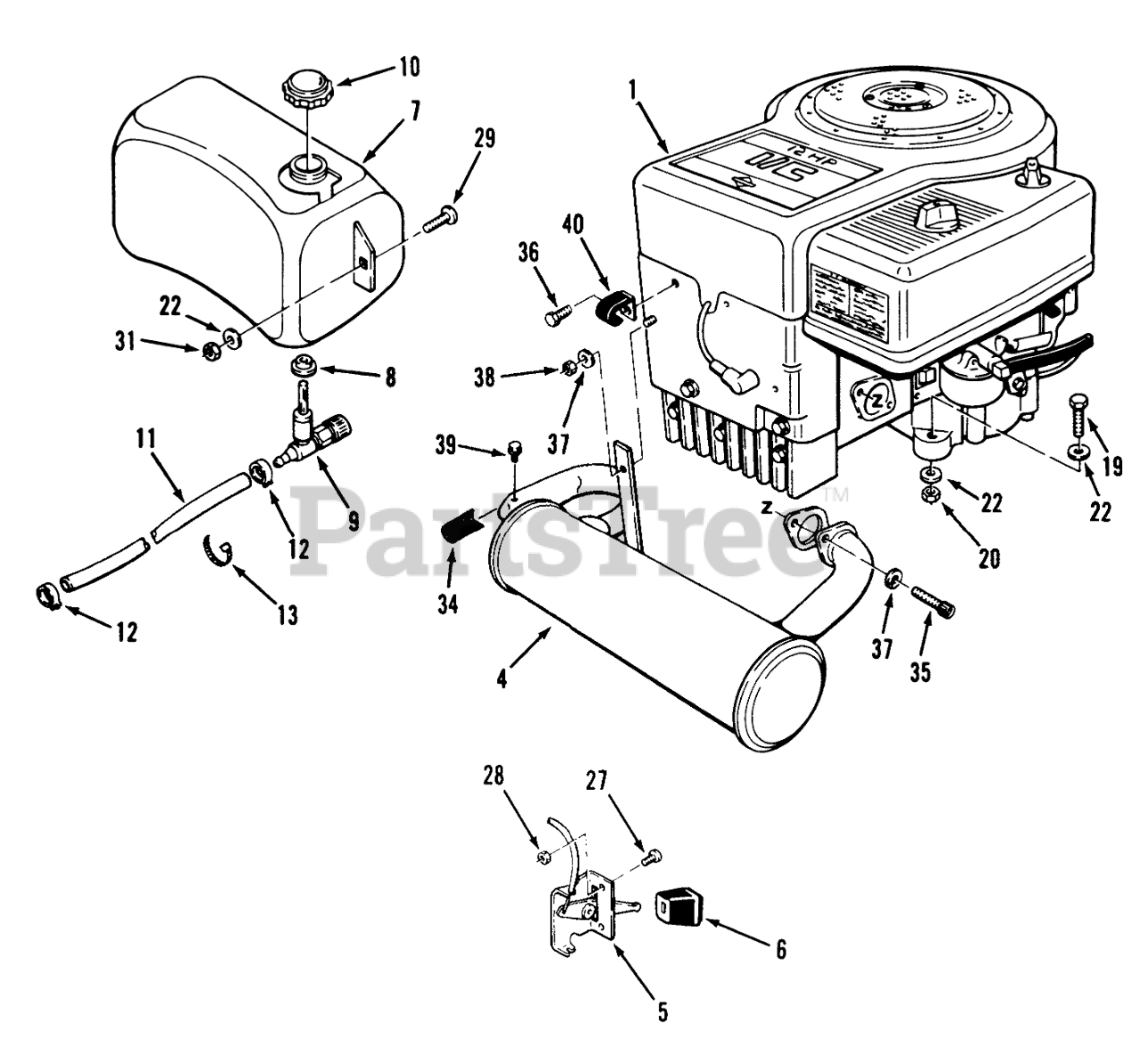

ENGINE FUEL & EXHAUST ASSEMBLY Parts Diagram

  • Title

1

Toro 78-3330

Engine-12HP-B & S Model 281707-0226-01 Model 212-HA

$

$

Currently unavailable

4

Toro 116702

MUFFLER-EXHAUST

$

$

Not available

5

Toro 115788

THROTTLE-CONTROL

$

$

Not available

6

Toro 116454

KNOB-CONTROL
(Superseded to 66-0120)

$5.99

$

In Stock, only 2 left!

0

7

Toro 111473

Fuel Tank Assembly (Incl. Ref. #8 & 9)
(Superseded to 112153)

$

$

Not available

8

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

9

Toro 104048

VALVE-FUEL

$31.99

$

In Stock, only 1 left!

0

10

Toro 111474

CAP GAS

$27.99

$

In Stock, only 2 left!

0

11

Toro 113324

FUEL LINE 19" OF 6554

$

$

Not available

12

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

13

Toro 100571

PLASTIC TIE

$

$

Not available

19

Toro 908022

HHCS
(Superseded to 322-9)

$3.49

$

In Stock, only 1 left!

0

20

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

27

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

28

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

29

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

31

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

35

Toro 911066

SHCS 5/16-18X.625

$2.49

$

Usually ships in 3-6 days

0

36

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

37

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

38

Toro 32176-6

Nut-Hex

$

$

Currently unavailable

39

Toro 911652

BOLT-HEX S.T. #8X1/2

$

$

Not available

40

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0
