32-12BEA2 (212-H) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) FRAME ASSEMBLY Parts Diagram

Lawn Tractor

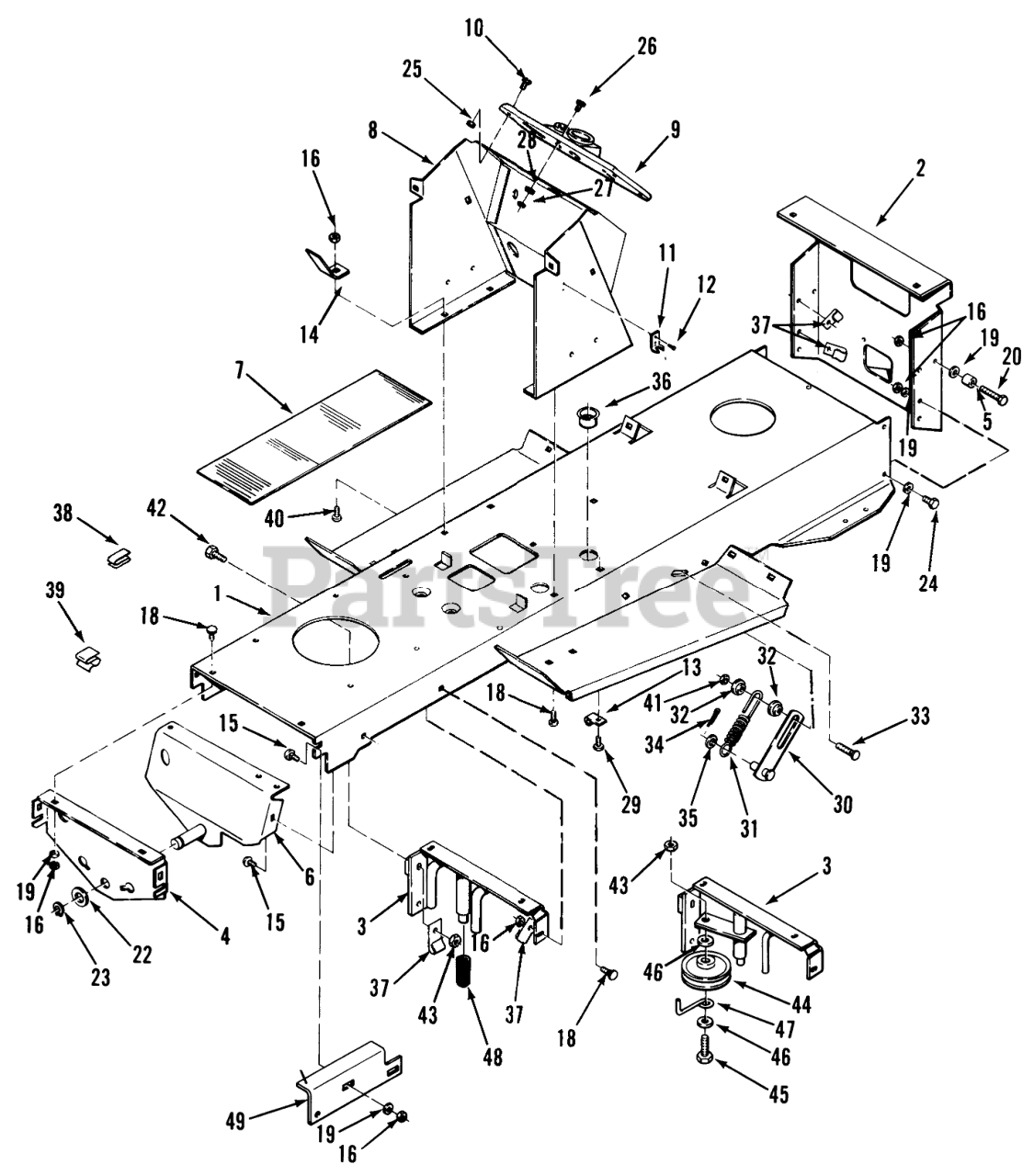

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 117600

Frame
(Superseded to 78-1640)

$587.99

$

Usually ships in 3-6 days

0

2

Toro 114417

PLATE-DRAWBAR R

$232.99

$

Usually ships in 3-6 days

0

3

Toro 112850

ASS'Y-FRAME SUPPO R

$

$

Not available

Toro 114851

ASS'Y-FRAME SUPPO R

$

$

Not available

4

Toro 111397

PLATE SUPT - AXLE R

$111.99

$

Usually ships in 3-6 days

0

5

Toro 114610

BEARING-CAM ROLLER

$

$

Not available

6

Toro 112977

ASS'Y-AXLE SPT RE R
(Superseded to 112977-01)

$

$

Not available

7

Toro 110180

PAD-FOOTREST

$

$

Not available

8

Toro 78-3310

Hoodstand

$

$

Not available

9

Toro 111467

CONSOLE

$

$

Not available

10

Toro 111499

SCREW #10X.62 PHCR

$

$

Not available

11

Toro 117343

KEEPER-LATCH

$4.99

$

In Stock, only 2 left!

0

12

Toro 117431

POPRIVET 1/8X 1/8 BK

$

$

Not available

13

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

14

Toro 111671

BRACKET FUSE

$

$

Not available

15

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 911449

Bolt
(Superseded to 3230-16)

$2.99

$

In Stock, Qty 20+

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

22

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0

23

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

24

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

25

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

26

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

27

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

28

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

29

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

30

Toro 111524

ASSY LINK B

$

$

Not available

31

Toro 111527

SPRING

$56.99

$

In Stock, only 2 left!

0

32

Toro 111758

BUSHING

$

$

Not available

33

Toro 900040

Bolt-Carriage
(Superseded to 3230-4)

$3.99

$

In Stock, Qty 6

0

34

Toro 3272-16

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

35

Toro 920242

WASHER

$6.49

$

Usually ships in 3-6 days

0

36

Toro 938031

BUSHING-NYLON 1.093

$

$

Not available

37

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

38

Toro 113116

RETAINER

$

$

Not available

39

Toro 3023

SPEED CLIP

$

$

Not available

40

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

41

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

42

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

43

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

44

Toro 110370

IDLER PULLEY R
(Superseded to 93-0320)

$21.99

$

In Stock, only 4 left!

0

45

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

46

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

47

Toro 109230

RETAINER BELT R

$

$

Not available

48

Toro 111439

GRIP

$

$

Not available

49

Toro 114990

BRACKET R.H. R

$

$

Not available

Toro 114989

BRACKET L.H. R

$

$

Not available

Toro 938050

PLUG-NYLON .250

$

$

Not available
