32-12BEA2 (212-H) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) ENGINE, FUEL & EXHAUST ASSEMBLY Parts Diagram

Lawn Tractor

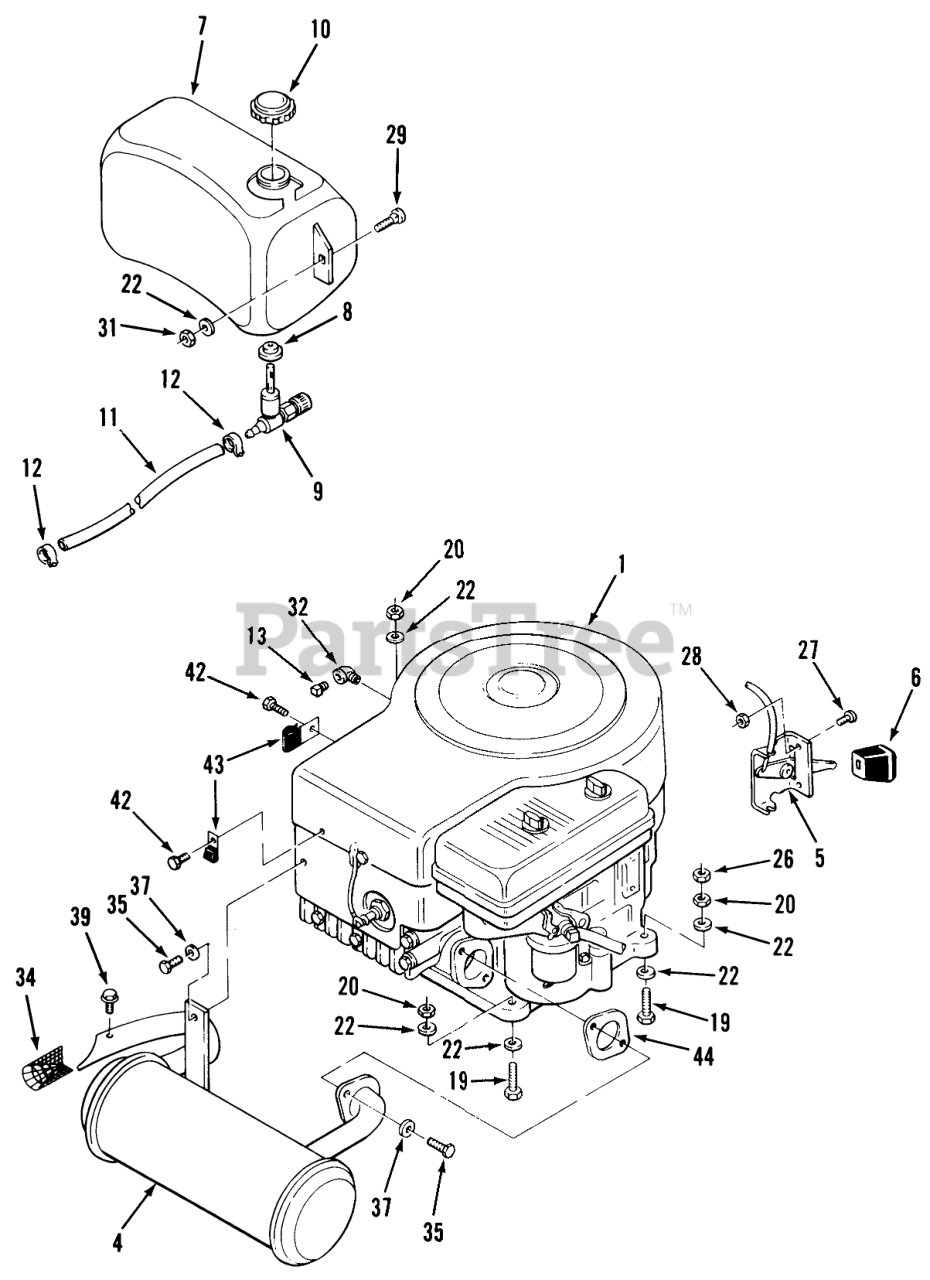

ENGINE, FUEL & EXHAUST ASSEMBLY Parts Diagram

  • Title
1

Toro 78-3330

Engine-12HP-B & S Model 281707-0226-01 Model 212-HA

$

$

Currently unavailable

4

Toro 116707

EXHAUST-MUFFLER

$

$

Not available

5

Toro 115788

THROTTLE-CONTROL

$

$

Not available

6

Toro 116454

KNOB-CONTROL
(Superseded to 66-0120)

$5.99

$

In Stock, only 2 left!

0

7

Toro 111472

Fuel Tank Assembly (Incl. Ref. #8 & 9)
(Superseded to 112153)

$

$

Not available

8

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

9

Toro 104048

VALVE-FUEL

$31.99

$

In Stock, only 1 left!

0

10

Toro 111474

CAP GAS

$27.99

$

In Stock, only 2 left!

0

11

Toro 113324

FUEL LINE 19" OF 6554

$

$

Not available

12

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

13

Toro 943420

Plug
(Superseded to 281-2)

$2.49

$

Usually ships in 3-6 days

0

19

Toro 908022

HHCS
(Superseded to 322-9)

$3.49

$

In Stock, only 1 left!

0

20

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 18

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

9080.01

Screw-Cap Hex. Hd.

$

$

Not available

26

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

27

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

28

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

29

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

31

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

32

Toro 943083

STREET ELBOW 45DEGRE

$17.99

$

Usually ships in 3-6 days

0

34

Toro 115356

Arrester-Spark
(Superseded to 93-9911)

$43.99

$

Usually ships in 3-6 days

0

35

Toro 911066

SHCS 5/16-18X.625

$2.49

$

Usually ships in 3-6 days

0

37

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

39

Toro 911652

BOLT-HEX S.T. #8X1/2

$

$

Not available

42

Toro 113114

HHCS M8X1.25X15

$

$

Not available

43

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0
