32-12B5A3 (212-5) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) TRANSMISSION ASSEMBLY (212-5) Parts Diagram

Lawn Tractor

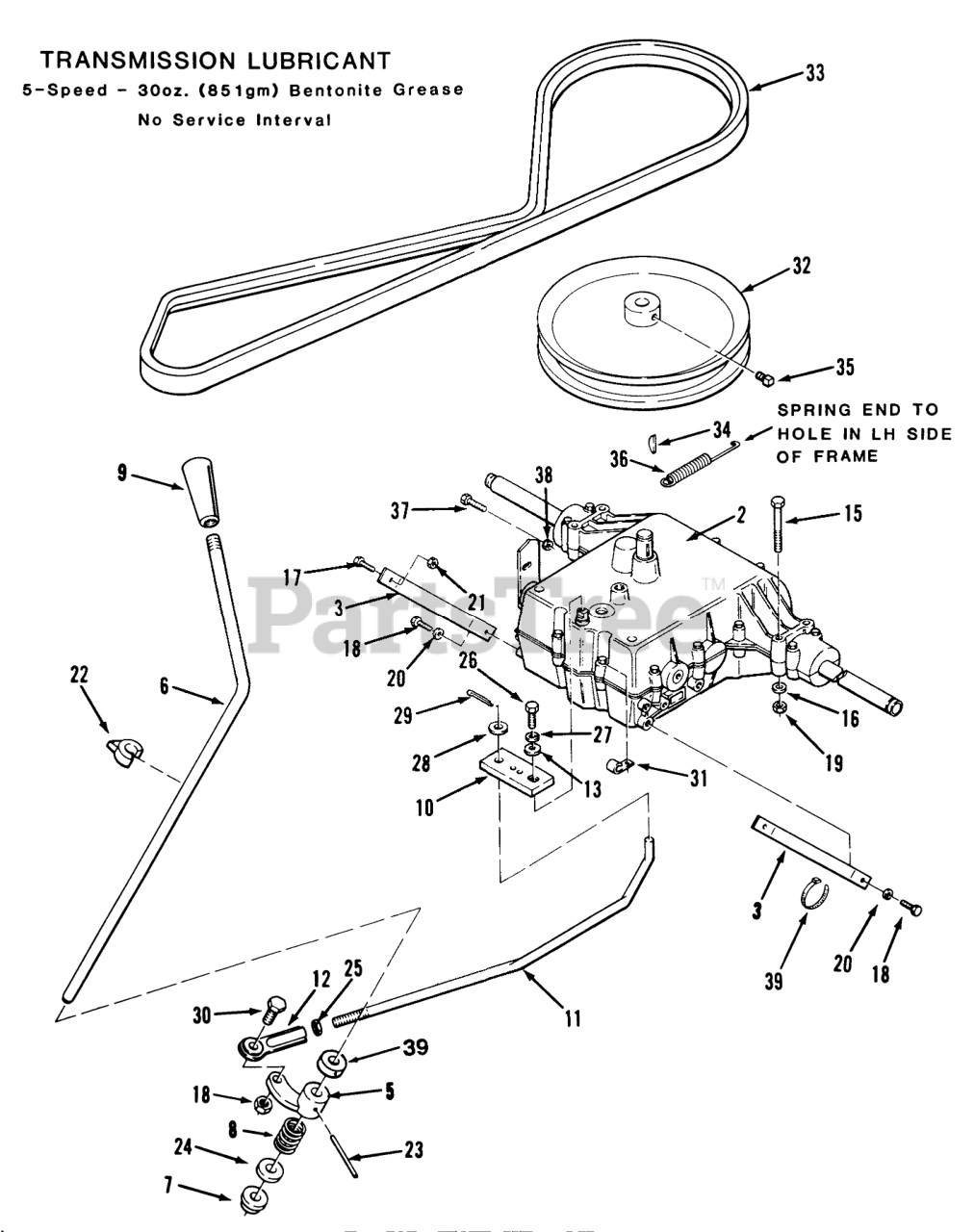

TRANSMISSION ASSEMBLY (212-5) Parts Diagram

  • Title

2

Toro 78-3340

ASS'Y TRANSAXLE 5-SP

$2419.99

$

Usually ships in 3-6 days

0

3

Toro 112982

TORQUE-STRAP R

$

$

Not available

5

Toro 111430

ARM SHIFTER B

$

$

Not available

6

Toro 78-2020

ROD-SHIFT LEVER

$

$

Not available

7

Toro 5666

BUSHING-NYLINER

$6.49

$

In Stock, Qty 7

0

8

Toro 111432

SPRING COMPRESSION

$5.99

$

Usually ships in 3-6 days

0

9

Toro 112983

KNOB

$28.99

$

Usually ships in 3-6 days

0

10

Toro 115198

ARM-TRANSMISSION 5SP

$

$

Not available

11

Toro 115042

ROD-LINKAGE

$87.99

$

Usually ships in 3-6 days

0

12

Toro 115043

END-ROD

$

$

Not available

13

Toro 104869

WASHER

$

$

Not available

15

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 9

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

18

Toro 926720

Screw
(Superseded to 9264964)

$1.99

$

Usually ships in 3-6 days

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

22

Toro 113025

POINTER

$4.99

$

Usually ships in 3-6 days

0

23

Toro 933273

SPIROL PIN 7/32X21/2

$2.99

$

Usually ships in 3-6 days

0

24

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

25

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

26

Toro 329-5

SCREW-HH

$

$

Not available

27

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

28

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

29

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

30

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

31

Toro 111357

J-CLIP

$

$

Not available

32

Toro 108790

PULLEY-TRANS

$

$

Not available

33

Toro 114860

BELT-V

$44.99

$

In Stock, Qty 14

0

34

Toro 937225

KEY-HI-PRO

$5.99

$

Usually ships in 3-6 days

0

35

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

36

Toro 110769

SPRING-EXTENSION

$15.99

$

In Stock, only 3 left!

0

37

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

39

Toro 100571

PLASTIC TIE

$

$

Not available

40

Toro 78-2030

COLLAR

$

$

Not available
