32-12B5A2 (212-5) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) BRAKE & IDLER ASSEMBLY (212-5) Parts Diagram

Lawn Tractor

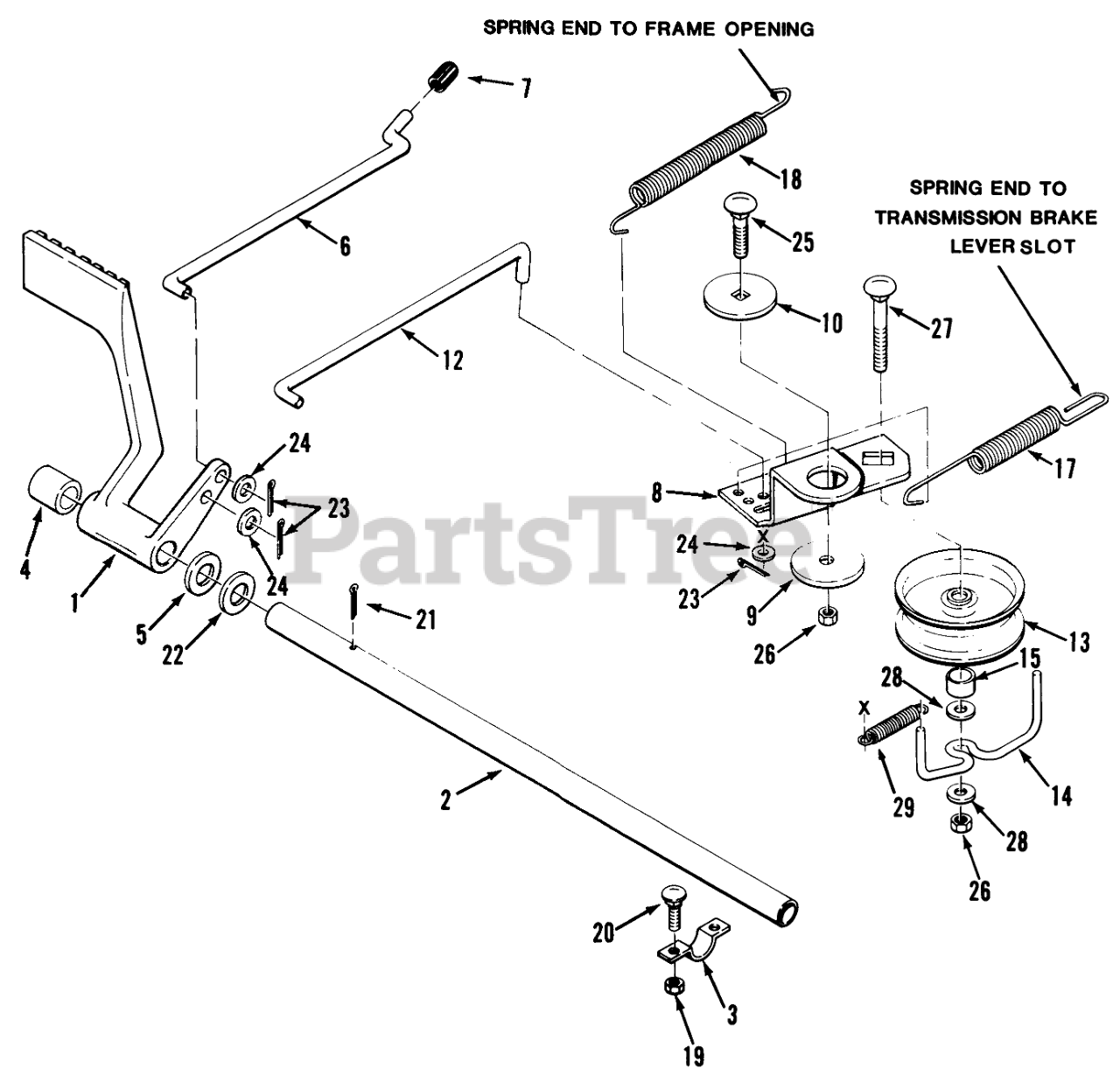

BRAKE & IDLER ASSEMBLY (212-5) Parts Diagram

  • Title

1

Toro 111436

PEDAL BRAKE R

$

$

Not available

2

Toro 111437

SHAFT PEDAL

$

$

Not available

3

Toro 106288

CLAMP

$15.99

$

Usually ships in 3-6 days

0

4

Toro 110015

SPACER

$

$

Not available

5

Toro 111712

WASHER-WAVE

$

$

Not available

6

Toro 112984

Lock Rod

$

$

Not available

7

Toro 111439

GRIP

$

$

Not available

8

Toro 114859

ARM-IDLER R

$102.99

$

In Stock, only 1 left!

0

9

Toro 111418

BUSHING

$32.99

$

Usually ships in 3-6 days

0

10

Toro 111419

WASHER-BEARING

$

$

Not available

12

Toro 113129

ROD-CLUTCH/BRAKE B

$

$

Not available

13

Toro 111442

PULLEY IDLER

$56.99

$

Usually ships in 3-6 days

0

14

Toro 111443

GUIDE-BELT

$

$

Not available

15

Toro 104525

SPACER
(Superseded to 93-3658)

$9.99

$

Usually ships in 3-6 days

0

17

Toro 111445

SPRING - BRAKE

$

$

Not available

18

Toro 111446

SPRING - CLUTCH

$

$

Not available

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

21

Toro 3272-16

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

22

Toro 920215

Washer
(Superseded to 9202154)

$3.49

$

In Stock, Qty 5

0

23

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

26

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

27

Toro 3231-33

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

29

Toro 116150

EXTENSION-SPRING

$

$

Not available
