32-12B501 (212-5) - Toro Lawn Tractor (1989) Hydrostatic Transaxle Parts Diagram

Lawn Tractor

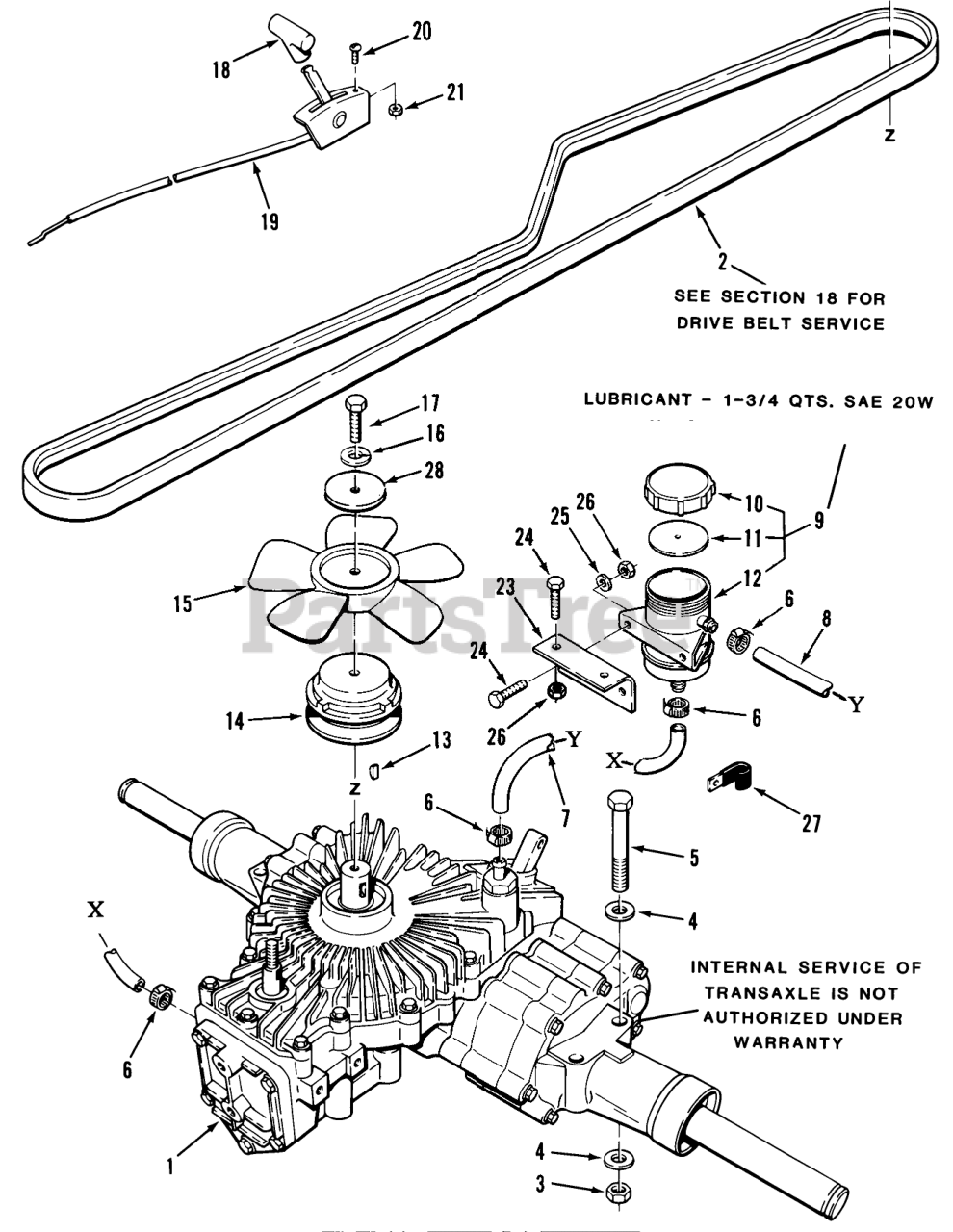

Hydrostatic Transaxle Parts Diagram

  • Title
1

Toro 113873

DISCONTINUED

$

$

Not available

1

Toro 219025

DISCONTINUED XREF

$

$

Not available

2

Toro 114433

BELT V

$53.99

$

Usually ships in 3-6 days

0

3

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

4

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

5

Toro 908026

See Supercession: 322-13
(Superseded to 322-13)

$3.49

$

In Stock, Qty 6

0

6

Toro 101349

See Supercession: 2412-98
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

7

Toro 114409

DISCONTINUED

$

$

Not available

8

Toro 114693

DISCONTINUED

$

$

Not available

9

Toro 114028

DISCONTINUED

$25.05

$

In Stock, only 2 left!

0

10

Toro 114562

See Supercession: 114028
(Superseded to 114028)

$25.05

$

In Stock, only 2 left!

0

11

Toro 114563

COVER GASKET

$20.99

$

In Stock, only 1 left!

0

12

Toro 114564

DISCONTINUED

$

$

Not available

13

Toro 937222

HARD HI PRO KEY

$3.49

$

In Stock, Qty 14

0

14

Toro 115467

DISCONTINUED

$

$

Not available

15

Toro 114638

BLADE-FAN

$

$

Not available

16

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

17

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

18

Toro 107045

See Supercession: 233-50
(Superseded to 233-50)

$3.49

$

In Stock, only 1 left!

0

19

Toro 114434

DISCONTINUED
(Superseded to 116126)

$

$

Not available

20

Toro 910792

See Supercession: 910790
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

21

Toro 915740

See Supercession: 3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

23

Toro 114400

DISCONTINUED

$

$

Not available

24

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

25

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

26

Toro 915661

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 18

0

27

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

28

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0
