32-120EA1 (212-H) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) HYDROSTATIC TRANSAXLE Parts Diagram

Lawn Tractor

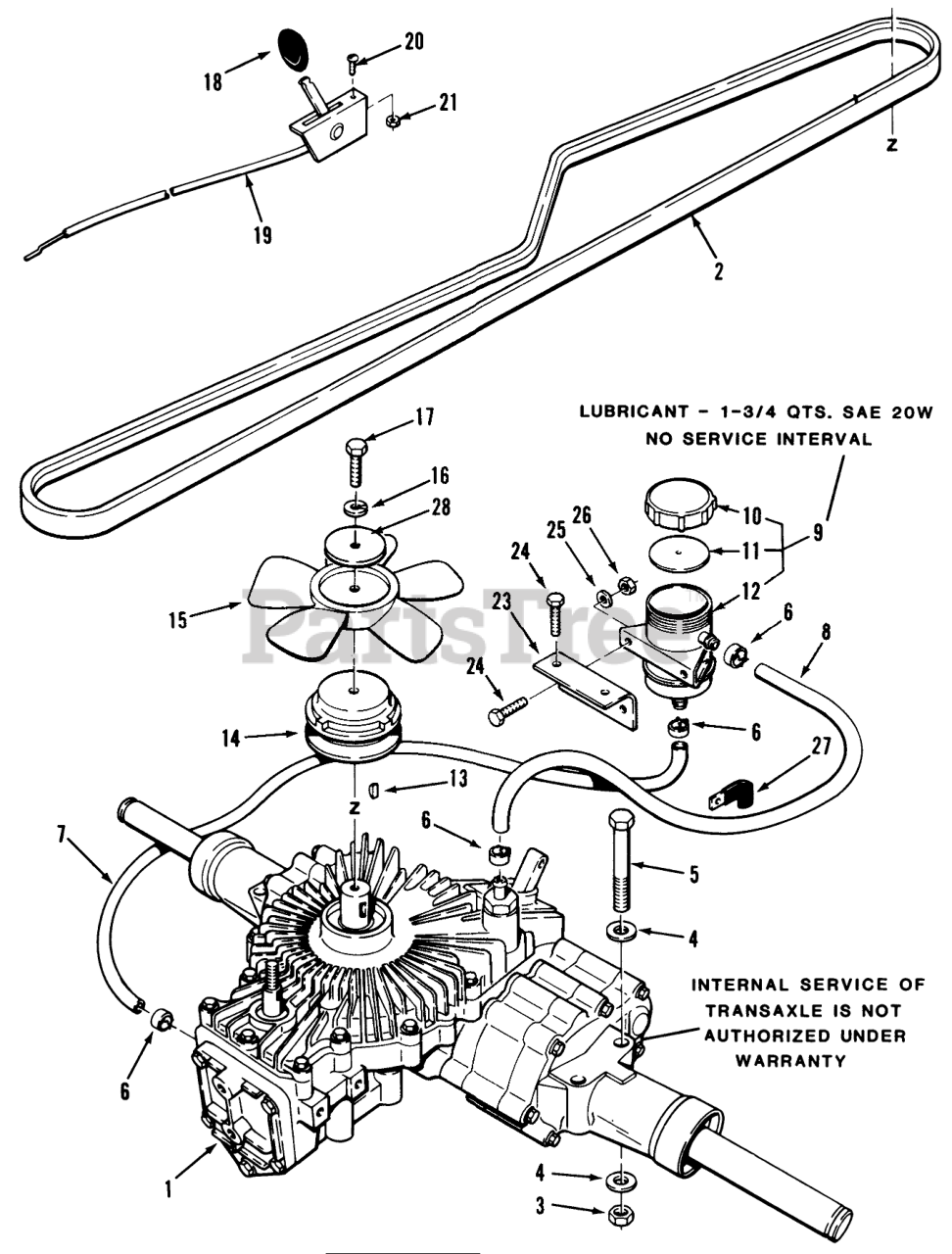

HYDROSTATIC TRANSAXLE Parts Diagram

  • Title

1

Toro 78-2710

TRANSMISSION 750-019

$6250.99

$

Usually ships in 3-6 days

0

2

Toro 114433

BELT V

$53.99

$

Usually ships in 3-6 days

0

3

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

4

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

5

Toro 908026

Pin-Cotter
(Superseded to 322-13)

$3.49

$

In Stock, only 3 left!

0

6

Toro 116180

CLAMP

$

$

Not available

7

Toro 114409

S/A 9" OF 114702

$

$

Not available

8

Toro 114693

S/A 27" OF 114702

$

$

Not available

9

Toro 79-1100

Hydro Reservoir Complete (includes items 10, 11 & 12)

$

$

Not available

10

Toro 79-1080

COVER

$

$

Not available

11

Toro 114563

COVER GASKET

$20.99

$

In Stock, only 1 left!

0

12

Toro 114564

RESERVOIR

$

$

Not available

13

Toro 937222

HARD HI PRO KEY

$3.49

$

In Stock, Qty 14

0

14

Toro 115467

PULLEY-HYDRO

$

$

Not available

15

Toro 114638

BLADE-FAN

$

$

Not available

16

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

17

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

18

Toro 108917

KNOB-THROTTLE

$3.49

$

In Stock, Qty 11

0

19

Toro 116126

CABLE-PUSH VALVE

$

$

Not available

20

Toro 910972

Screw #10-24 x 1/2

$

$

Currently unavailable

21

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

23

Toro 114400

BRKT-RESERVOIR MT R

$

$

Not available

24

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

25

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

26

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

27

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

28

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0
