32-120EA1 (212-H) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) FRAME, SHEET METAL AND COVERS Parts Diagram

Lawn Tractor

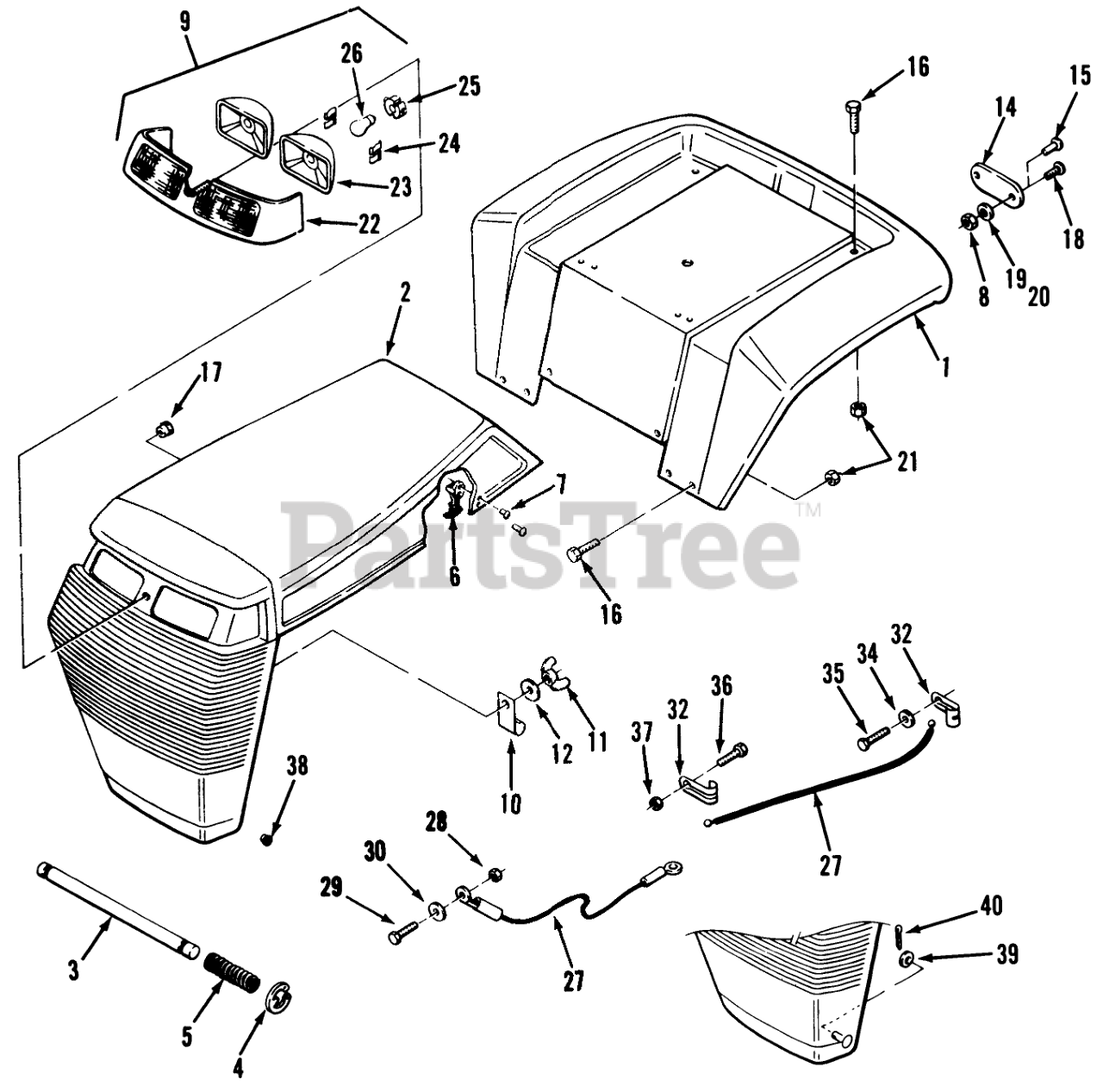

FRAME, SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 78-7540

FENDER R

$

$

Not available

2

Toro 116800

Hood & Grill
(Superseded to 120890)

$1377.99

$

Usually ships in 3-6 days

0

3

Toro 111480

ROD

$120.99

$

Usually ships in 3-6 days

0

4

Toro 107772

E-Ring
(Superseded to 32151-73)

$2.99

$

In Stock, Qty 6

0

5

Toro 111536

SPRING

$

$

Not available

6

Toro 117344

HANDLE ASM

$36.99

$

In Stock, only 1 left!

0

7

Toro 117432

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

8

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

9

Toro 116591

Head Light Bar (Includes items 22, 23, 24 & 2] of 26)

$

$

Not available

10

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

11

Toro MW8756

Nut-Wing
(Superseded to 32103-19)

$1.99

$

In Stock, only 2 left!

0

12

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

14

Toro 108547

Reflector
(Superseded to 106557)

$

$

Not available

15

Toro 109193

Poprivet
(Superseded to 3290-282)

$0.99

$

In Stock, Qty 8

0

16

Toro 900214

Bolt-Carriage
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

17

Toro 938031

BUSHING-NYLON 1.093

$

$

Not available

18

Toro 910808

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

19

Toro 920004

WASHER

$0.99

$

Usually ships in 3-6 days

0

20

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

21

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

21

Toro 920155

Washer-Lock
(Superseded to 3254-23)

$

$

Not available

22

Toro 116601

LIGHT-BAR BLACK

$

$

Not available

23

Toro 111684

LIGHT POD

$

$

Not available

24

Toro 111685

RETAINER

$

$

Not available

25

Toro 116262

SOCKET-HEADLIGHT

$55.99

$

Usually ships in 3-6 days

0

26

Toro 7228

BULB

$24.99

$

Usually ships in 3-6 days

0

27

Toro 115400

Hood Lanyard Cable

$

$

Currently unavailable

28

Toro 915470

E.S. Nut #10-24

$

$

Currently unavailable

29

Toro 913111

Screw-Machine
(Superseded to 3290-321)

$4.49

$

Usually ships in 3-6 days

0

30

Toro 112925

WASHER-BACKING

$

$

Not available

32

Toro 115413

CLEVIS

$

$

Not available

34

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

35

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

36

Toro 913111

Screw-Machine
(Superseded to 3290-321)

$4.49

$

Usually ships in 3-6 days

0

37

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

38

Toro 5977

NYLINER BUSHING

$6.99

$

Usually ships in 3-6 days

0

39

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

40

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available
