32-1205A1 (212-5) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) WHEELS AND TIRES Parts Diagram

Lawn Tractor

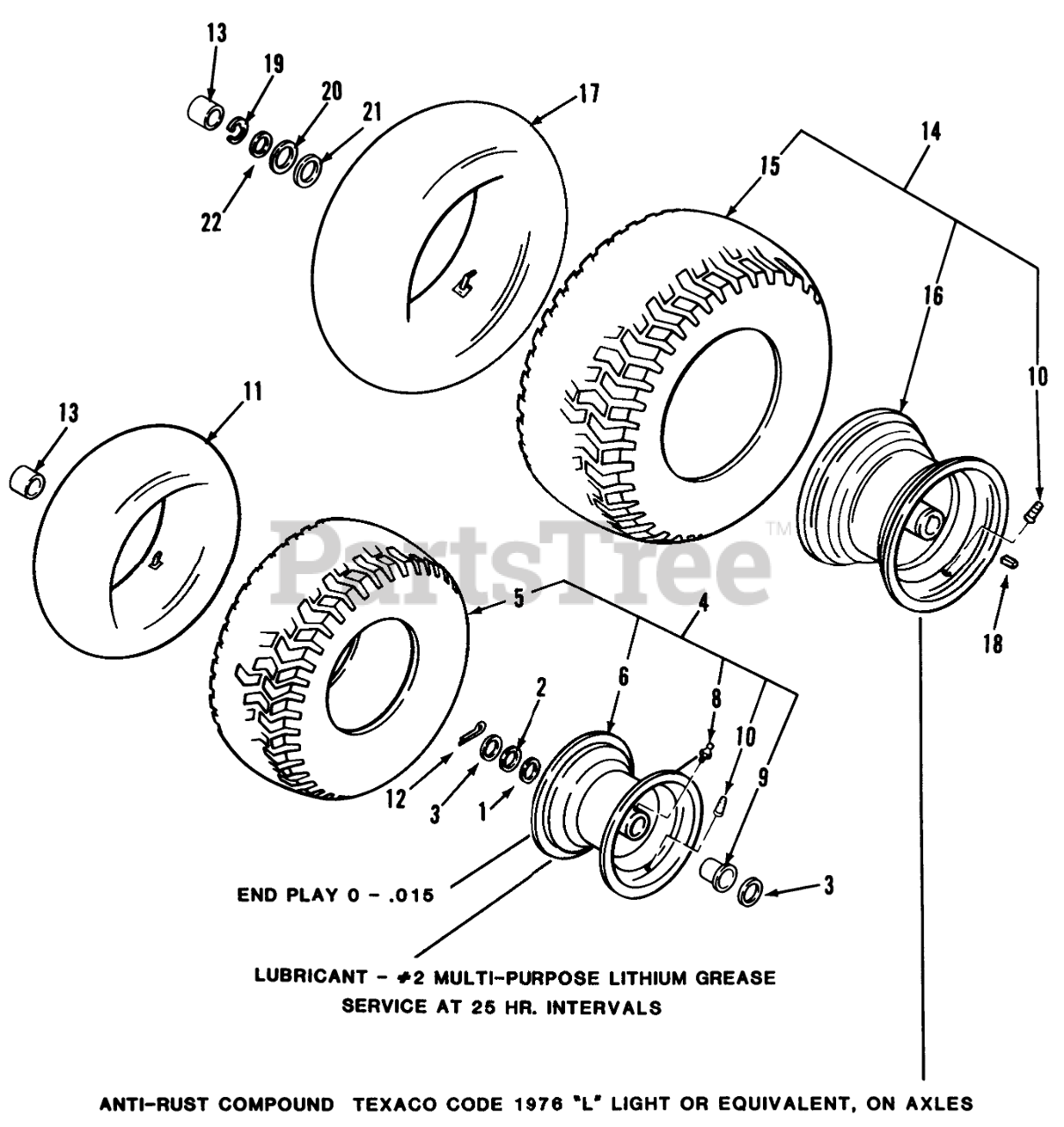

WHEELS AND TIRES Parts Diagram

  • Title
1

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 16

0

2

Toro 1278

WASHER

$2.99

$

In Stock, Qty 5

0

3

Toro 109262

WASHER-FLAT

$3.49

$

In Stock, only 1 left!

0

4

Toro 116883

Front Wheel and Tire 15 x 6.00-6 (Includes items 5, 6, 8, 9 & 10)

$

$

Not available

5

Toro 116884

TIRE-15 X 6.00-6

$136.99

$

Usually ships in 3-6 days

0

6

Toro 116885

Front Wheel Assembly (Includes Wheel with items 8, 9, & 10)

$

$

Not available

8

Toro 109500

ZERK-GREASE

$3.49

$

Usually ships in 3-6 days

0

9

Toro 116887

Bearing
(Superseded to 703730)

$29.99

$

Usually ships in 3-6 days

0

10

Toro 5108

VALVE

$6.99

$

In Stock, Qty 17

0

11

$

$

Not available

12

Toro 932026

COTTER PIN-4

$0.99

$

In Stock, Qty 13

0

13

Toro 109261

HUB CAP

$

$

Not available

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

14

Toro 116879

Rear Wheel & Tire-212-5
(Superseded to 79-5580)

$793.99

$

Usually ships in 3-6 days

0

Toro 116892

Rear Wheel & Tire-212-H
(Superseded to 79-5560)

$635.99

$

Usually ships in 3-6 days

0

15

Toro 116880

TIRE-18X9.50-8 TT RS

$

$

Not available

16

Toro 116881

Rear Wheel 212-5
(Superseded to 79-5590)

$

$

Not available

Toro 116893

Rear Wheel
(Superseded to 79-5570)

$340.99

$

In Stock, only 1 left!

0

17

Toro 105450

Tube-Inner
(Superseded to 106396)

$41.99

$

Usually ships in 3-6 days

0

18

Toro 1120

SQ KEY

$2.99

$

Usually ships in 3-6 days

0

Toro 2590

Key
(Superseded to 5-1336)

$10.99

$

In Stock, Qty 5

0

19

Toro 104636

E Ring
(Superseded to 32151-48)

$1.99

$

In Stock, Qty 14

0

Toro 7939

Snap Ring
(Superseded to 32151-36)

$4.99

$

In Stock, Qty 18

0

20

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 16

0

Toro 920252

Washer
(Superseded to 9202524)

$1.49

$

Usually ships in 3-6 days

0

21

Toro 1278

WASHER

$2.99

$

In Stock, Qty 5

0

Toro 920251

USE 920251P WASHER

$2.99

$

In Stock, only 2 left!

0

22

Toro 109262

WASHER-FLAT

$3.49

$

In Stock, only 1 left!

0

Toro 920239

Washer
(Superseded to 9202394)

$2.49

$

Usually ships in 3-6 days

0
