32-1205A1 (212-5) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) ENGINE, FUEL AND EXHAUST SYSTEMS Parts Diagram

Lawn Tractor

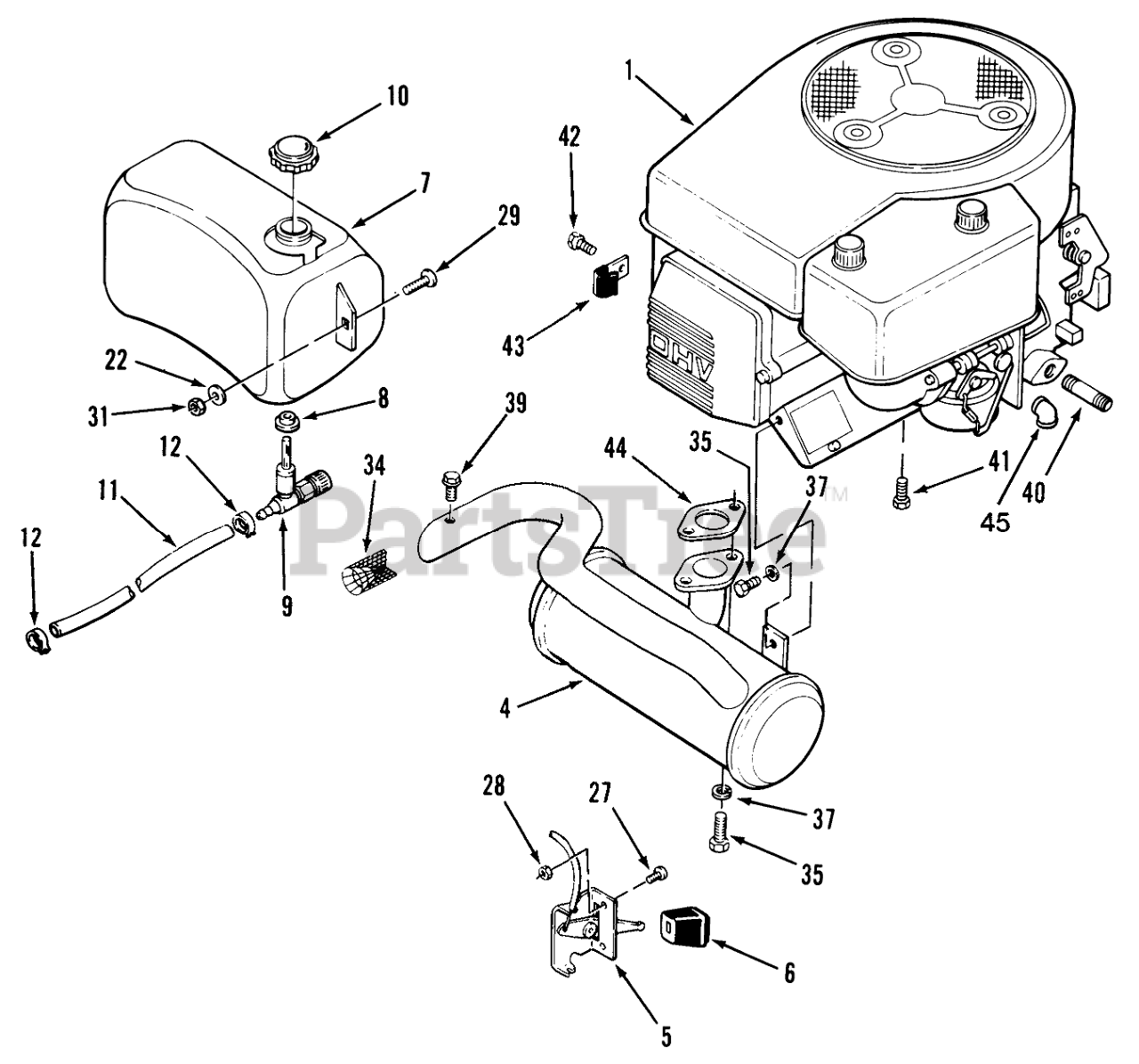

ENGINE, FUEL AND EXHAUST SYSTEMS Parts Diagram

  • Title
1

Toro 78-3330

Engine-12HP-B & S Model 281707-0226-01 Model 212-HA

$

$

Currently unavailable

Toro 116799

Engine-12 HP-TORO POWER PLUS Model E125V-N/10964B

$

$

Not available

4

Toro 116702

MUFFLER-EXHAUST

$

$

Not available

5

Toro 117256

CONTROL-THROTTLE

$

$

Not available

6

Toro 116454

KNOB-CONTROL
(Superseded to 66-0120)

$5.99

$

In Stock, only 2 left!

0

7

Toro 111473

Fuel Tank
(Superseded to 112153)

$

$

Not available

8

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

9

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

10

Toro 111474

CAP GAS

$28.99

$

In Stock, only 2 left!

0

11

Toro 117225

Line-Fuel
(Superseded to 110521)

$

$

Not available

12

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

19

Toro 908022

HHCS
(Superseded to 322-9)

$3.49

$

In Stock, only 3 left!

0

20

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

22

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

24

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 1 left!

0

25

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

26

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

27

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

28

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

29

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

31

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

32

Toro 116764

Elbow 90deg. 3/8

$

$

Currently unavailable

34

Toro 115356

Arrester-Spark
(Superseded to 93-9911)

$45.99

$

Usually ships in 3-6 days

0

35

Toro 113113

HHCS M8X1.25X20

$

$

Not available

37

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

39

Toro 911652

BOLT-HEX S.T. #8X1/2

$

$

Not available

40

Toro 114636

Pipe
(Superseded to 289-45)

$23.99

$

Usually ships in 3-6 days

0

41

Toro 926696

Bolt
(Superseded to 9266964)

$9.49

$

Usually ships in 3-6 days

0

42

Toro 113113

HHCS M8X1.25X20

$

$

Not available

43

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

44

Toro 117184

GASKET-EXHAUST

$34.99

$

Usually ships in 3-6 days

0

45

Toro 114764

ELBOW 3/8 90 DEG

$17.99

$

In Stock, only 1 left!

0
